2 On the expansion module that will be the last in the configuration, use a 3 mm hex wrench to attach the
hard stop.

Nine Modules or More Configuration

To add expansion modules onto an existing eight module library configuration, you must use the new
tensioner bracket which is provided in the installation kit. The new tensioner bracket has a vertical slot
instead of a hole on the bottom left.
1 Confirm the tensioner assembly in the installation kit is anodized black and that it has the FRU ID 939.

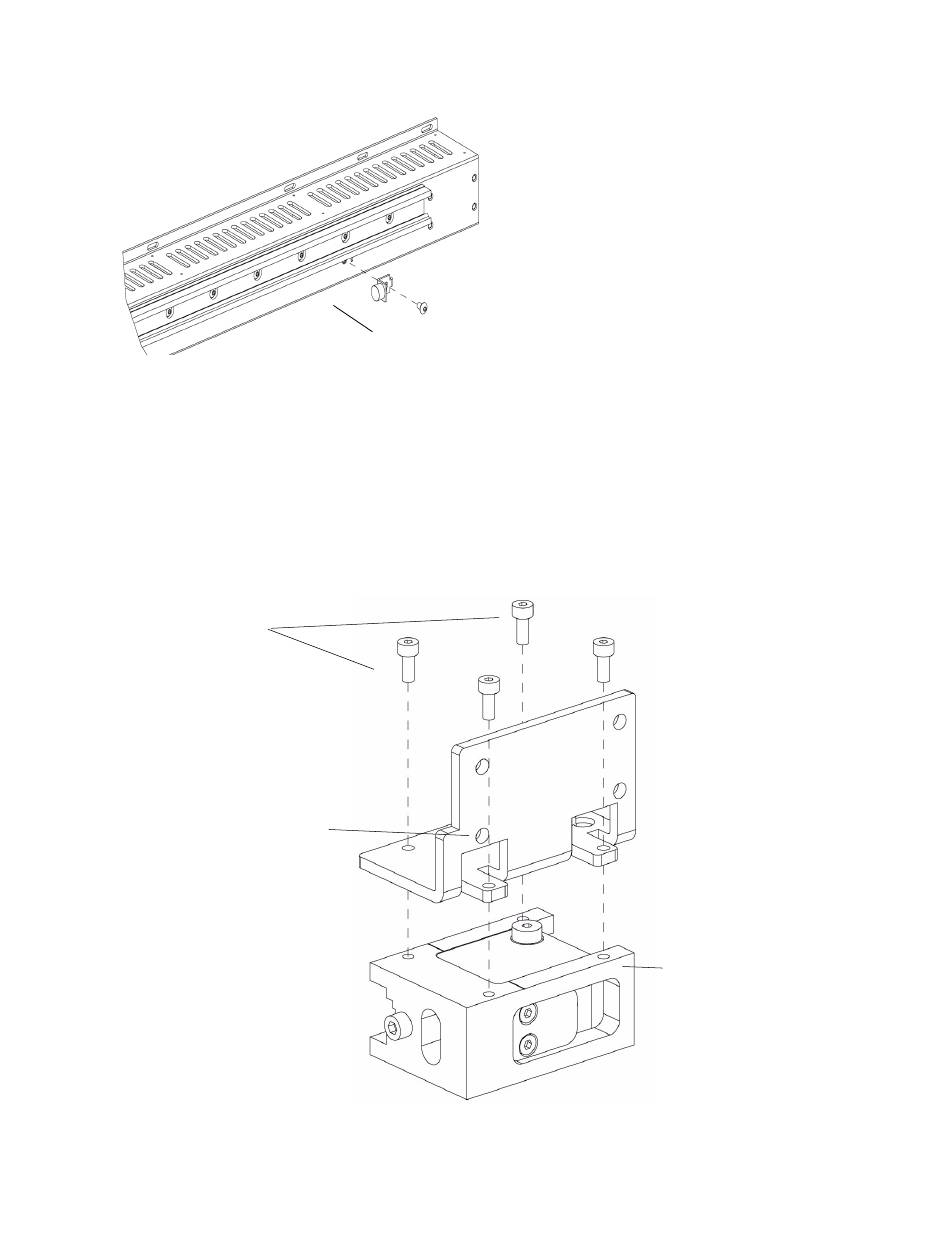

2 On the X-axis tensioner that you removed earlier, use a 3 mm hex wrench to remove the 4 screws that
attach the tensioner assembly to the tensioner assembly bracket.
3 mm screws
Removed tensioner mounting
bracket with hole instead of slot
Scalar i6000 Installation Guide
3 mm screw
black tensioner assembly
51
