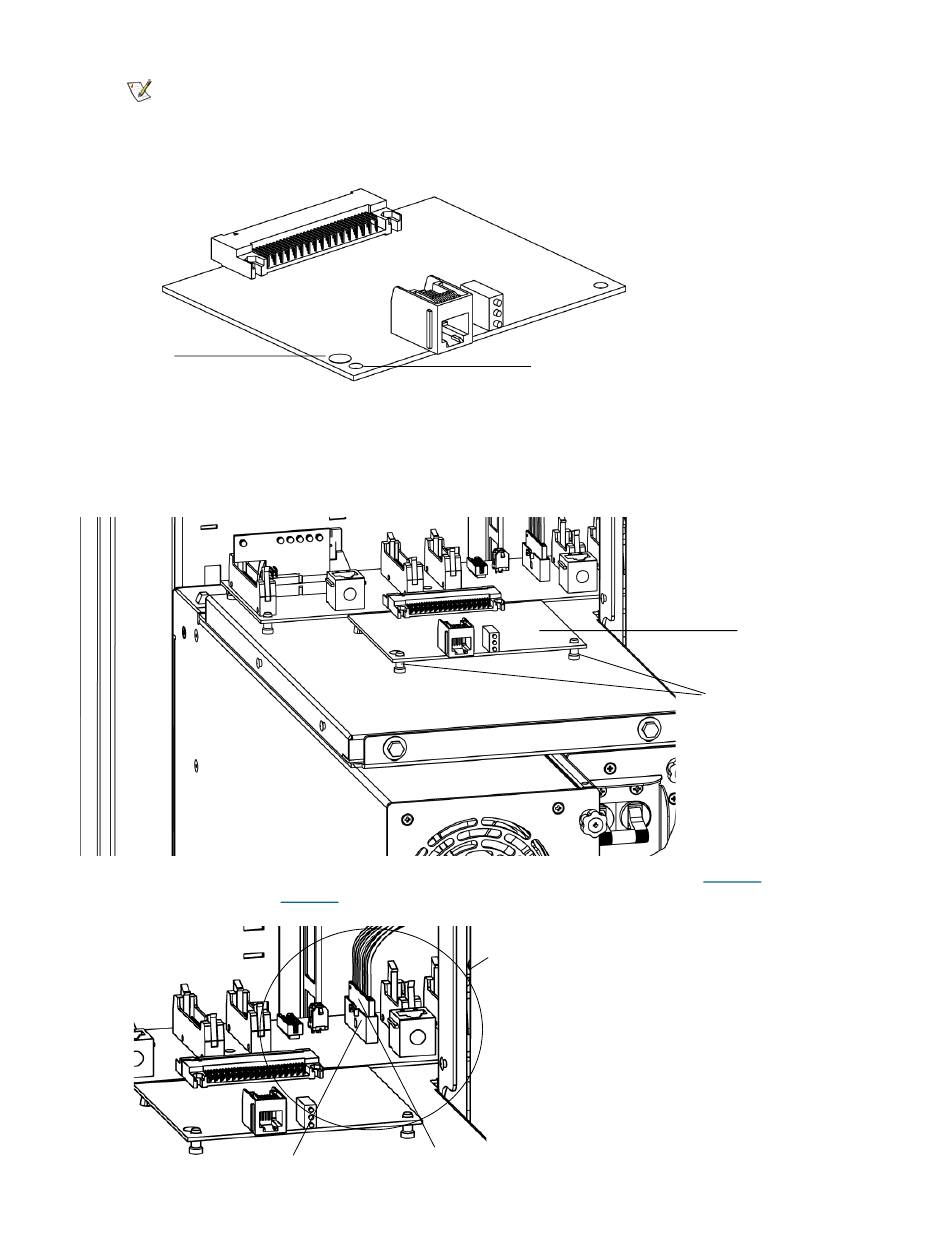

To complete this upgrade procedure, you must replace the existing IEX1
Note
board with an IEX2 board. A small red label on the IEX2 board
distinguishes it from the IEX1 board.
red sticker
11 Plug the IEX2 board into the LBX board.
12 Use your thumb to snap the IEX2 board onto the two standoffs
13 Determine if an I/E cable is already present and routed, if is present proceed to
Otherwise, proceed to
J7 connector
14 Connect the I/E cable W6 to the J7 connector on the LBX board.
284
Step 14
on page 284.
W6 cable
mounting hole
I/E connection
IEX2 board
standoffs
Step 16
on page 286.
Adding Optional Hardware
