Raising the Control Module Off the Casters

Required tools: 6 mm hex wrench or 16 mm open end wrench
1 Open the access and service doors of the control module.
2 Using the 6 mm hex wrench or 16 mm open end wrench, raise the control module at each of the four
corner legs seven (7) half turns after initial contact with the floor.
During this process one or two leveling legs may raise off of the floor. This is not a concern. Even if a
leg is lifted off the floor, only give that leveling leg seven (7) half turns. This should raise the whole
control module off of the casters seven (7) half turns.

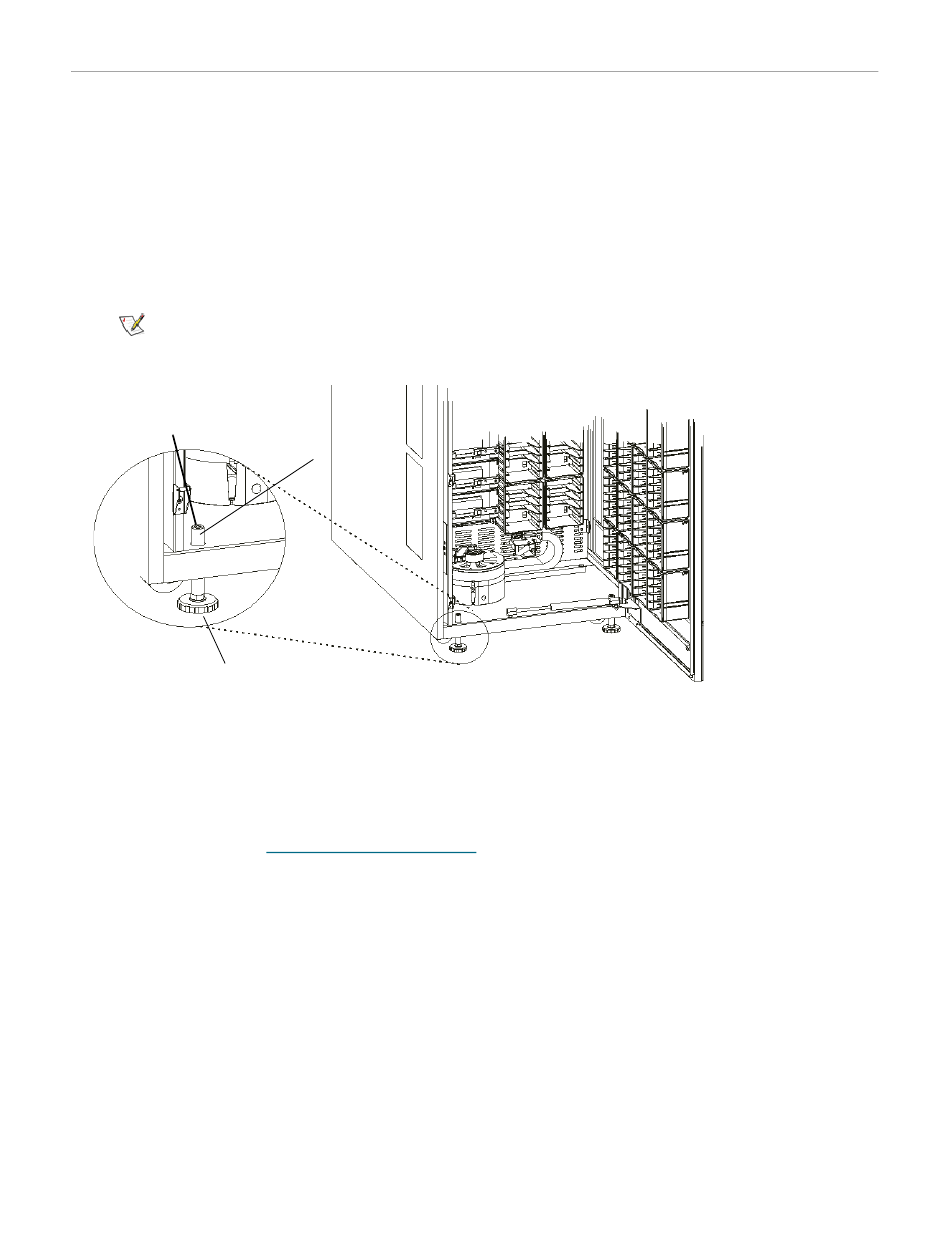

Making a mark on the top of the leg will help you keep track of the half
Note
turns.
make mark here to keep
track of seven half turns
leveling foot
3 Check each corner leg to ensure that there is pressure on the foot and you cannot turn it by hand.
• If you have correctly given each corner leg seven (7) half turns you should not be able to turn the
feet by hand.
• If you can turn one of the feet by hand, lower the control module back onto the casters and restart
this procedure at
weight evenly distributed across all four leveling legs when it is properly raised. The module may or
may not be level at this time.
