Figure 12
shows an example of drives connected to the FC I/O blades.

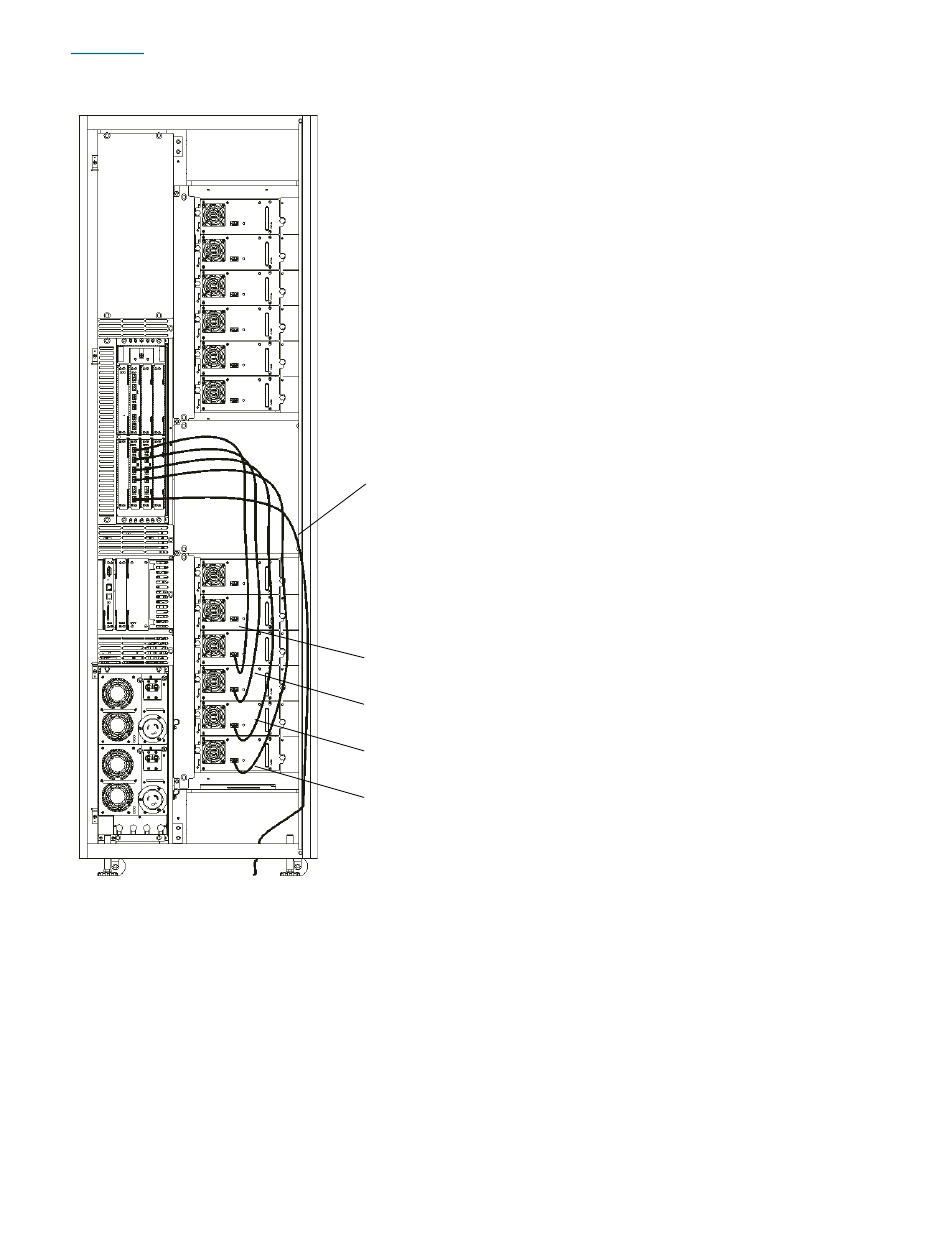

Figure 12
Example of Drives Connected to FC I/O Blades
Drives can only be connected to ports FC-3 through FC-6. Host connections are made through ports FC-1
and FC-2.
Scalar i6000 Installation Guide
connection to host or SAN
cable from FC-6 to drive coordinate 1,1,1,4,1,1
cable from FC-5 to drive coordinate 1,1,1,3,1,1
cable from FC-4 to drive coordinate 1,1,1,2,1,1
cable from FC-3 to drive coordinate 1,1,1,1,1,1
115
