22 On only the access door side, detach both the top and bottom door dampers. Slide the small flat-head
screwdriver into the space under the spring clip of each damper and lift the spring clip to release the
damper from the ball joint.
23 Place the foot jack in front of the expansion module being upgraded. The right side of the foot jack
should be in the down position which will allow it to pass under the access door
24 Close the door to a 45 degree angle and press one foot downward on the foot jack while carefully
supporting the access door.
Removing the access door requires two people. The access door is
CAUTION
heavy and may become unstable after it is freed from the hinge pins.
25 To raise the door off the hinge pins, gently swivel the access door clockwise and lift the door free.
26 Properly discard the old access door.
27 Carefully lift the new access door from the crate and position it in front of the expansion module at a 45
degree angle.
Be careful when handling the door to avoid damaging its plastic cover (skin).
Note
28 Lift and mount the door onto the hinges.
29 Verify the door is seated upon all three hinge pins.
30 Reattach the two door dampers. For each damper, press the damper onto the ball joint.
31 Install the twelve supplied magazines into the storage area beneath the 72-slot I/E station opening.
32 Install the two calibration targets on the storage magazines beneath the 72-slot I/E station opening.
• Column 2, section 8
• Column 2, section 10
Scalar i2000 Installation Guide

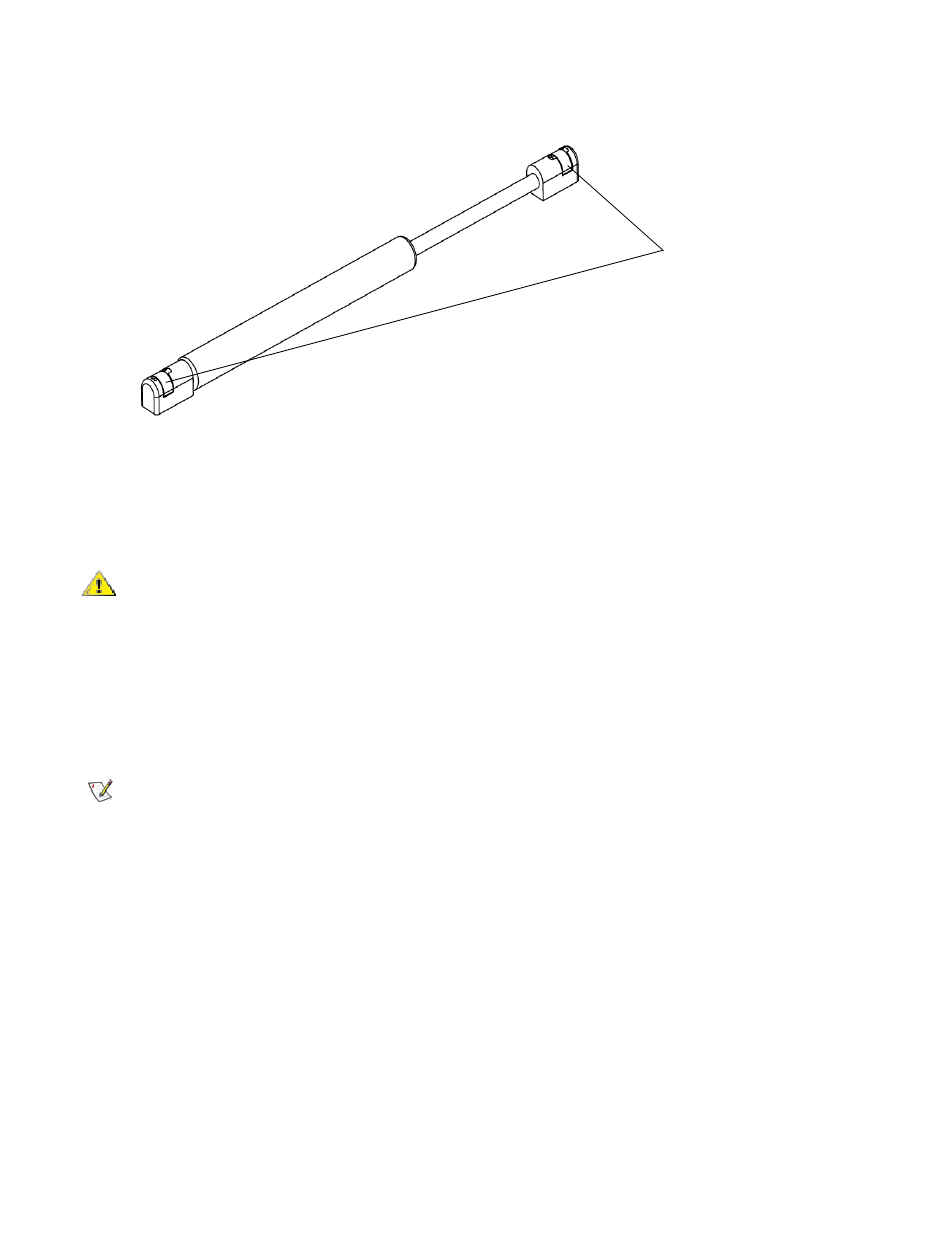

insert small flat-head
