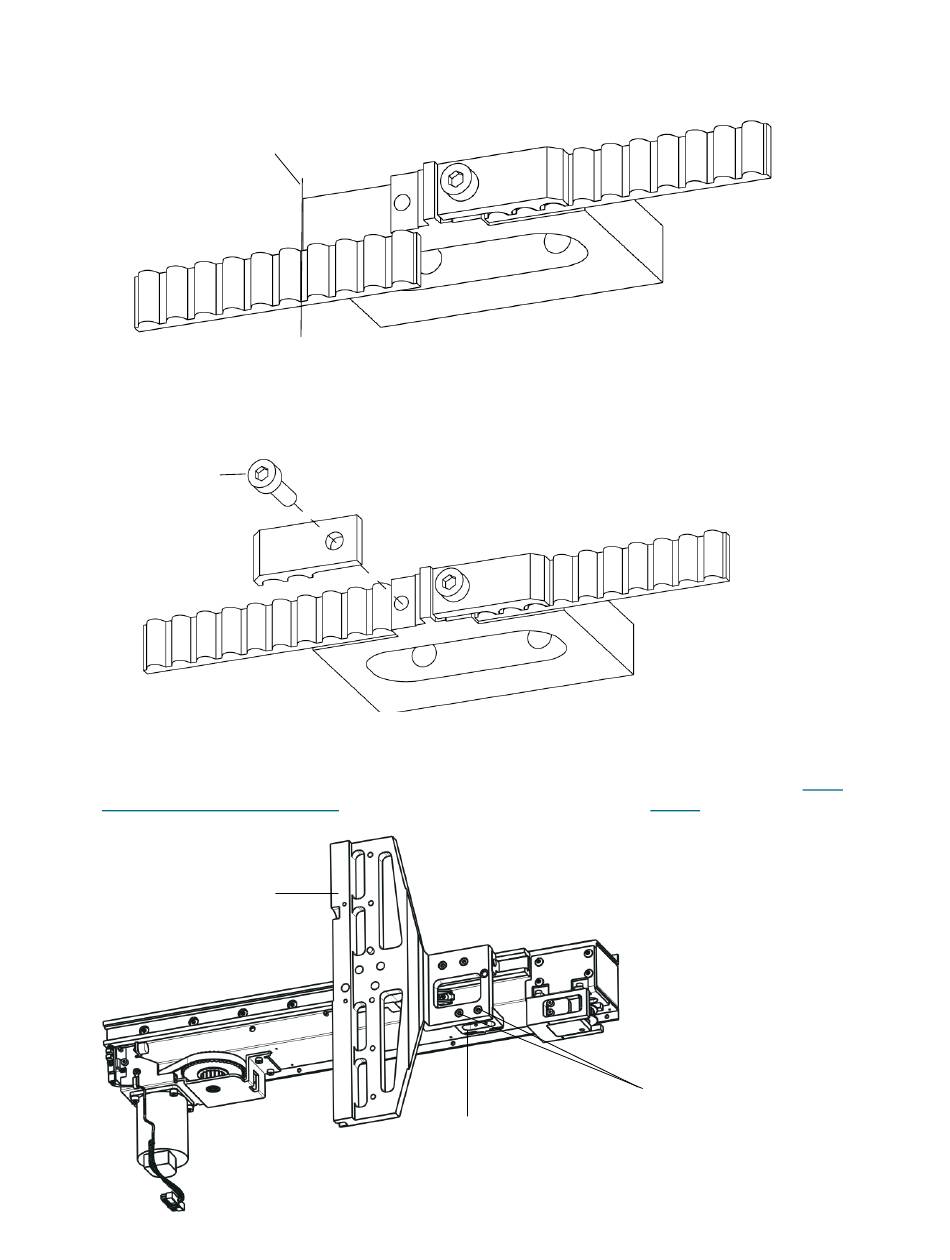

5 Pull the belt tight and mark where it should be cut. You must leave three belt teeth extra on the belt so
it can be attached to the left side of the clamp.-
marking point
6 Cut off the excess length from the belt.
7 Insert three teeth of the X-axis belt into the left side of the clamp and tighten the 2.5 mm screw to secure
the belt in place.
2.5 mm hex screw
8 Secure the belt clamp to the X-axis carriage by installing the two 4 mm screws through the X-axis
carriage into the belt clamp. If your library configuration involves nine or more modules, see
Modules or More Configuration
X-axis carriage
Scalar i6000 Installation Guide
on page 56. Otherwise, proceed to step
belt clamp
Nine
Step 9 on page 56.
4 mm belt clamp
bracket screws
