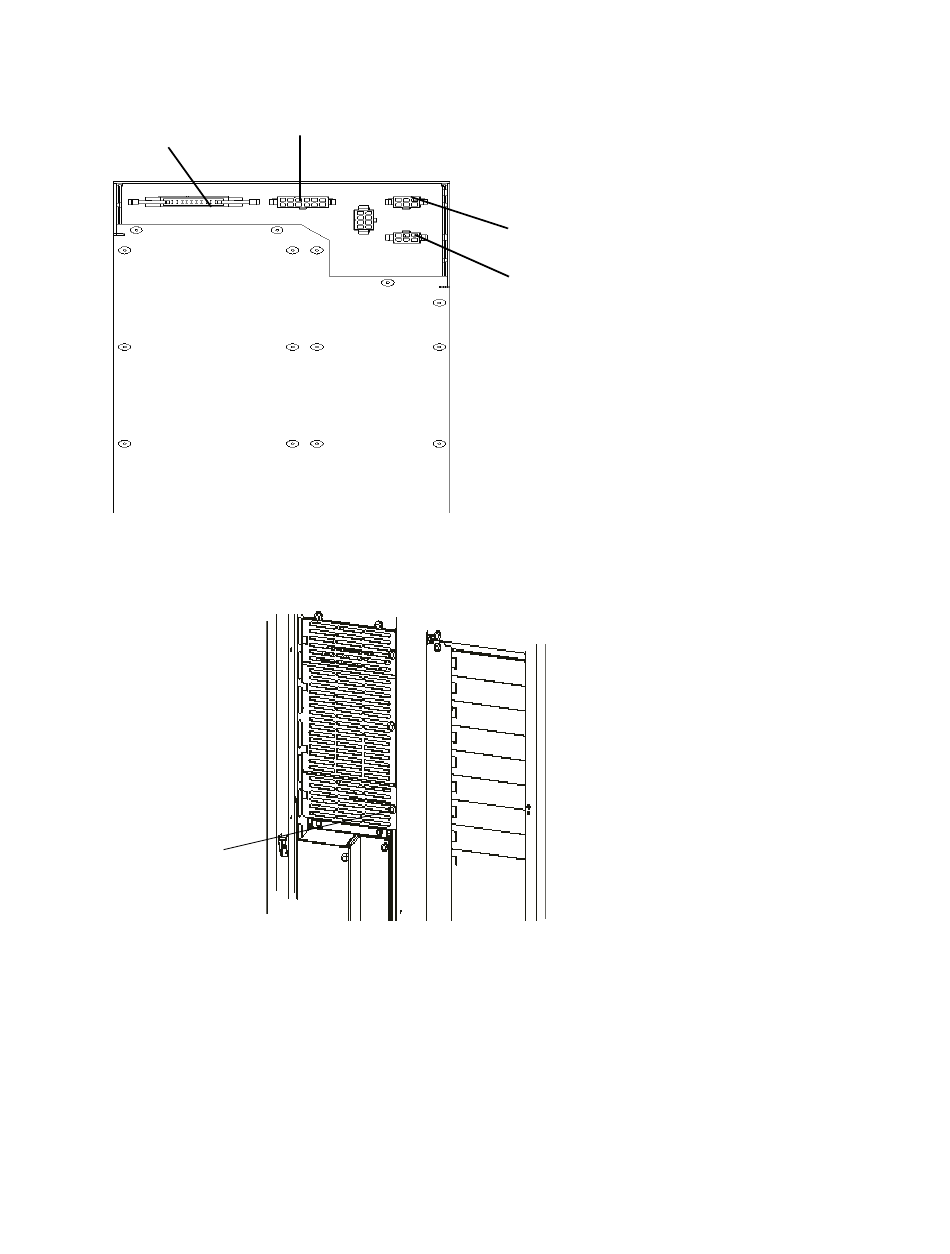

connector: J48AP
plug: W17 to I/O
connector: J48S
management unit
plug: W5 to LBX
12 Insert and tighten the LBX/IEX cover plate using the thumbscrew.
LBX/IEX cover
plate thumbscrew
242
connector: J48B
plug: W13 to upper drive cluster
connector: J48A
plug: W13 to lower drive cluster
Adding Optional Hardware
