Quantum Scalar i6000 Installation Manual page 262

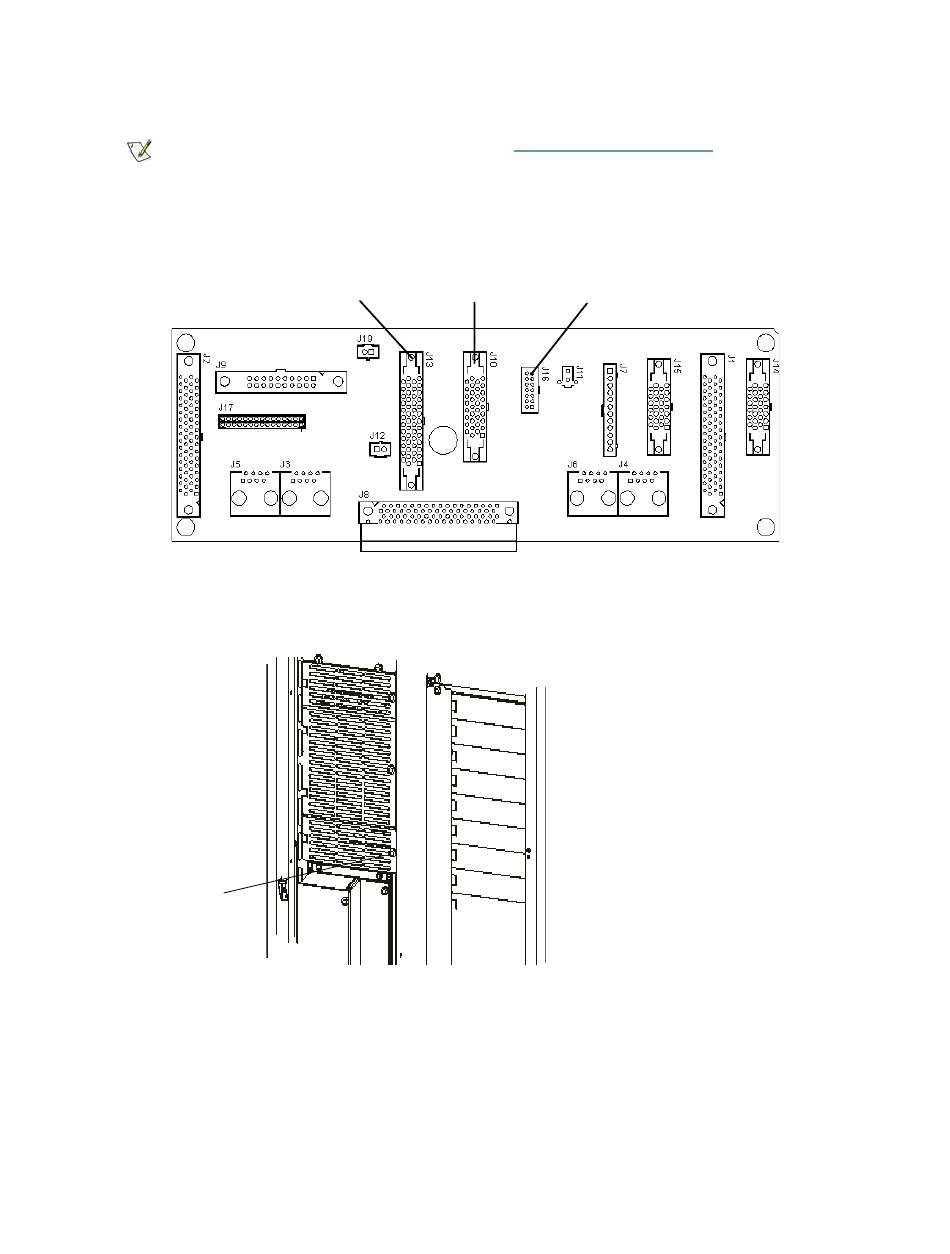

12 Connect the I/O management cables to the LBX board. This includes connecting the CAN cable (W7)
to J13, connecting the Ethernet cluster cable (W11) to J10, and connecting power supply status cable
(W16) to J16.
For more LBX version information, see
Note
345.
connector: J13
plug: W7 to I/O
management unit
and CAN interface
13 Insert and tighten the LBX/IEX cover plate using the thumbscrew.
LBX/IEX cover
plate thumbscrew
250
LBX Board and Terminator
connector: J10 connector: J16
plug W11 to I/O plug: W16 to power
management unit supply status cable
and Ethernet from LBX board
on page
Adding Optional Hardware
