Installation Verification Test Functions

Use the Verification Tests dialog box to run the installation verification test and view results.
shows the parts of the Verification Tests dialog box. To display the dialog box, click Tools→ Verification
Tests.

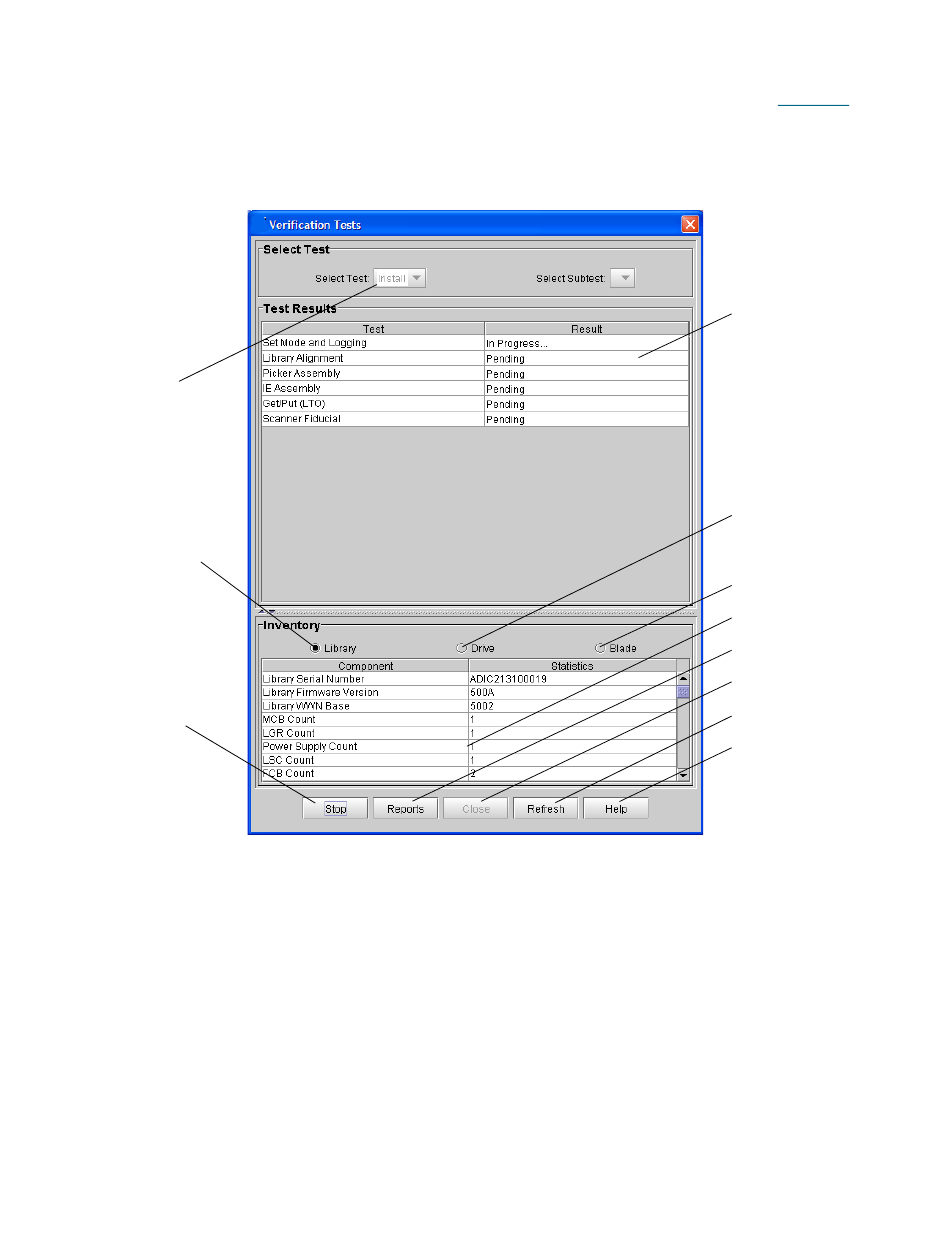

Figure 25 Verification Tests Dialog Box
selected test
library inventory
start/stop test

Library Alignment Test

The library alignment test performs the following tasks:
• Performs accessor X-axis and Y-axis travel test (also calls the FRU accessor assembly test)
• Calibrates library and checks calibration offsets by comparing them to the default values for the
drives and I/E stations
• Checks magazine offsets
• Checks collected offset alignments for magazines, I/E stations, and drive sleds
• Checks joint alignment quality
310
Figure 25
test results area
drive inventory
blade inventory
test report output
display test logs
close window
refresh window
view Help window
Installation Testing and Verification
