Verifying Accessor Assembly Alignment

1 Verify that the accessor assembly is aligned correctly as follows

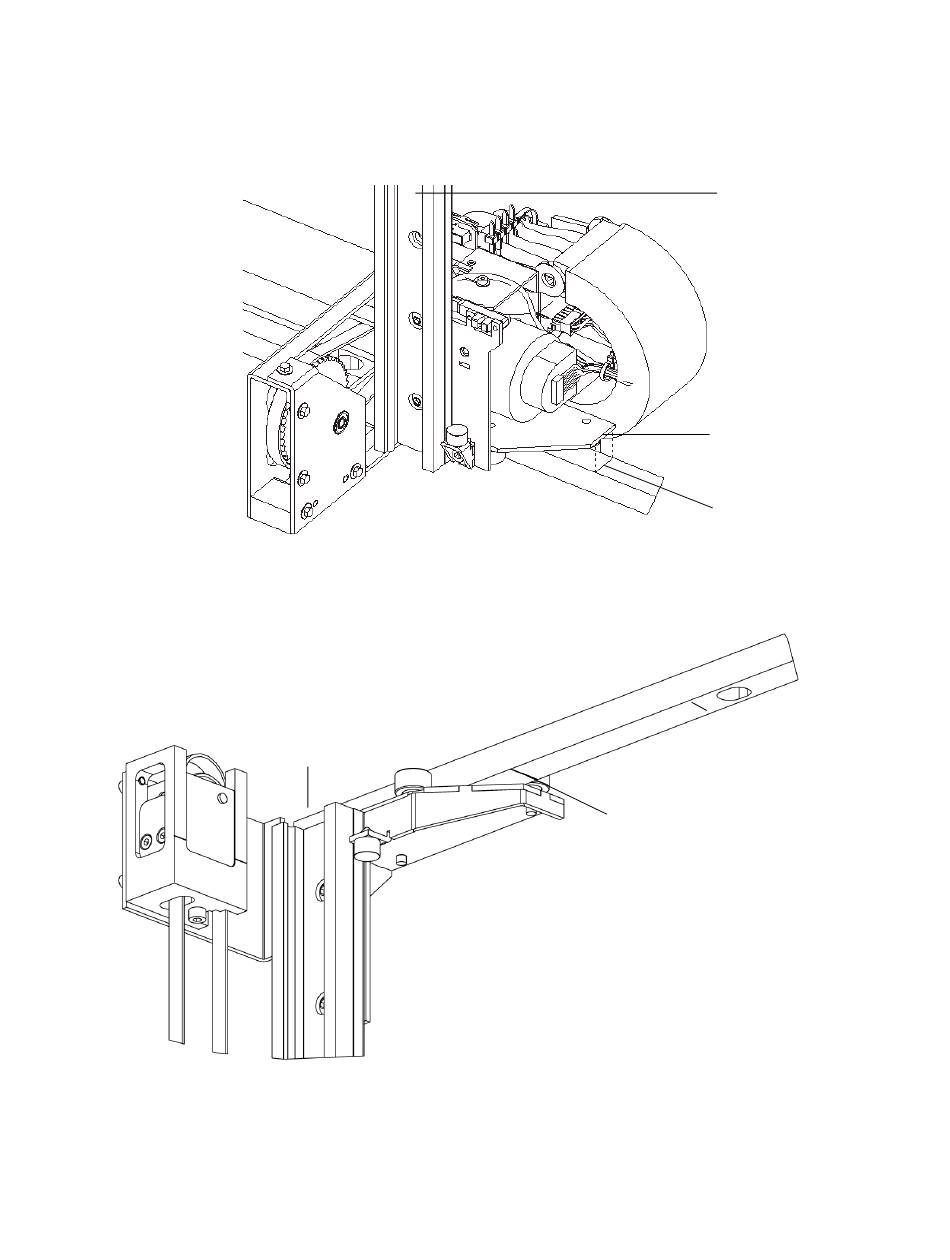

a. Position the front edge of the Y-drive mount so that it is aligned with the scribe mark on the lower
left end of the control module's upper and lower X-axis rail.
b. Verify that the upper X-axis bearing is within one mm of the scribe mark on the upper X-axis rail.
Scalar i6000 Installation Guide
Y-axis rail
Y-axis rail
front edge of
Y-drive mount
scribe mark
on lower X-axis rail
scribe mark
