Installing a Control Management Blade
Required tools: ESD strap
1
Open the service door of the module.
2
Attach the ESD strap to your wrist and to an unpainted surface inside the door.
3
Remove the cover plate from bay 2, the CMB slot.
4
Remove the CMB from the protective anti-static bag.
5
Press up and out to open the latchhooks on each side of the CMB.
6
Carefully align the CMB with the guide slots in bay 2. The LEDs will be on the top.
CAUTION
Scalar i2000 Installation Guide

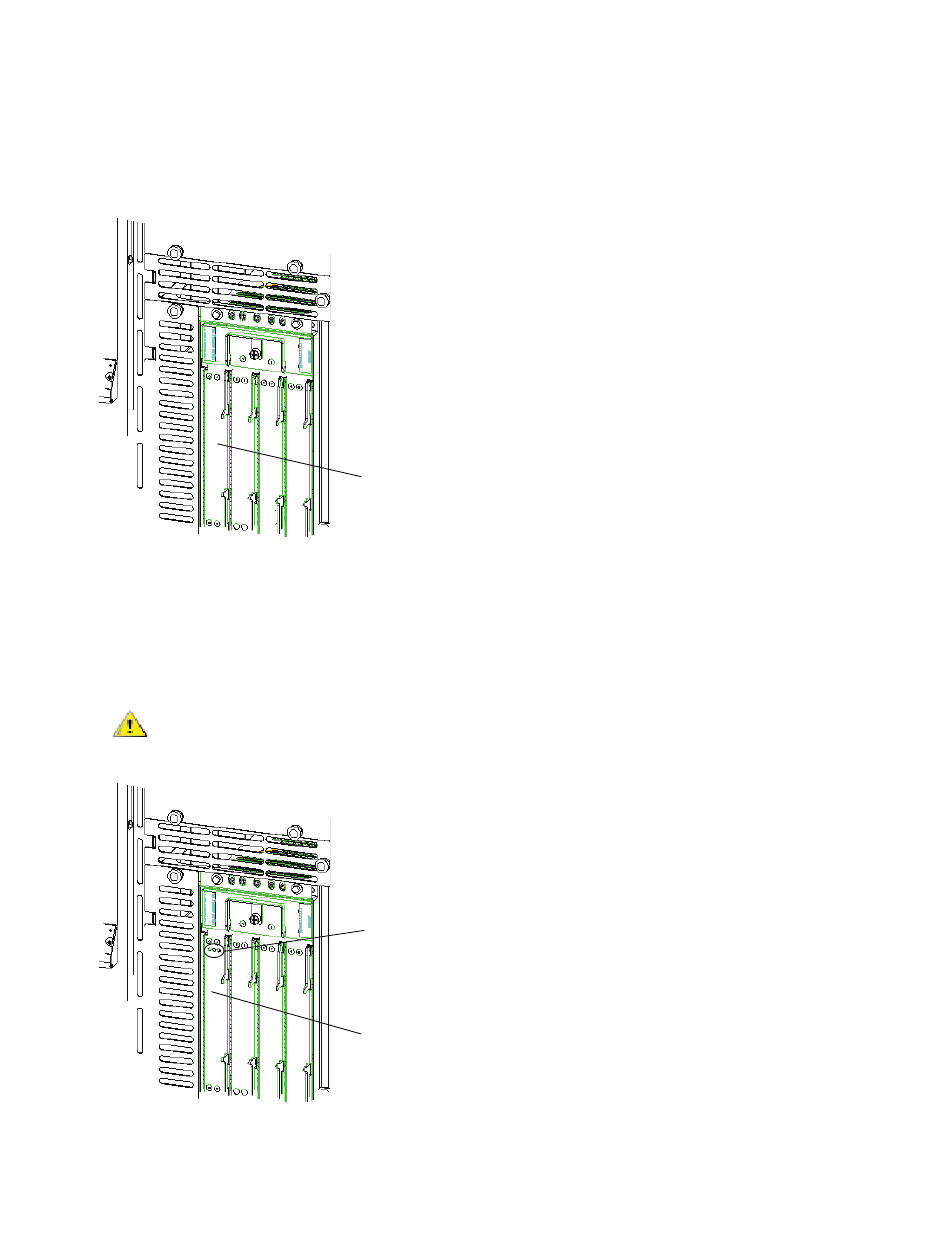

bay 2
Forcing the blade into the bay can cause the pins to bend.
LEDs
CMB
259
