Quantum Scalar i6000 Installation Manual page 274

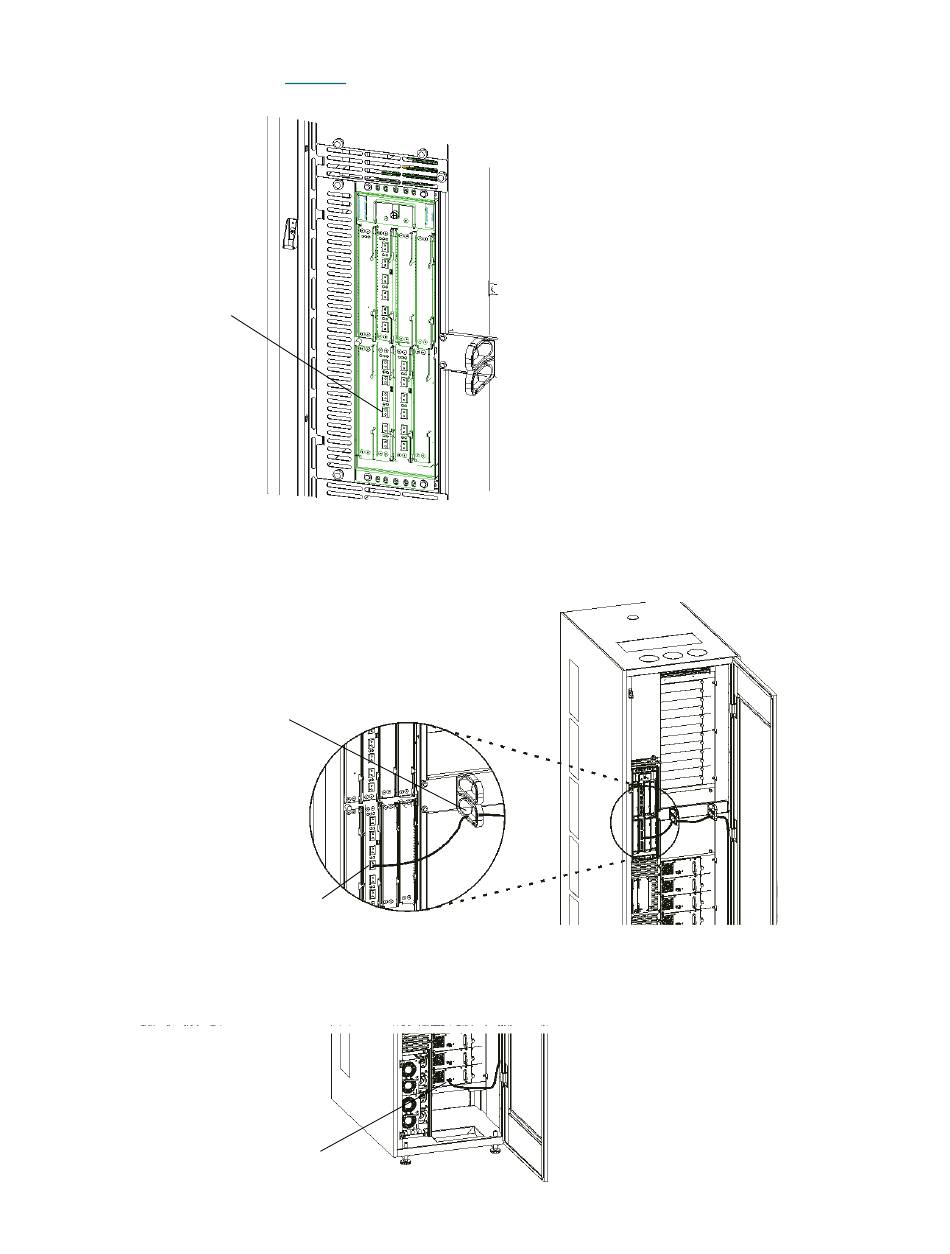

11 Connect the Fibre optical cable to port FC-3 on the FC I/O blade that is installed in bay 3 of the I/O
management unit. See
port FC-3 on the
FC I/O blade in
in bay 3
12 Route the cable through the cable keepers and down the right side of the control module or expansion
module.
Fibre optic cable routed
through cable keepers
cable connected to FC 3 on
FC I/O blade in bay 3 of the
I/O management unit
13 Insert the Fibre optical cable into the Fibre Channel connection on the drive.
Fibre optic cable connected
to drive in drive sled position 1
262
Table 5 on page 114 for information about the cable connection requirements.
Adding Optional Hardware
