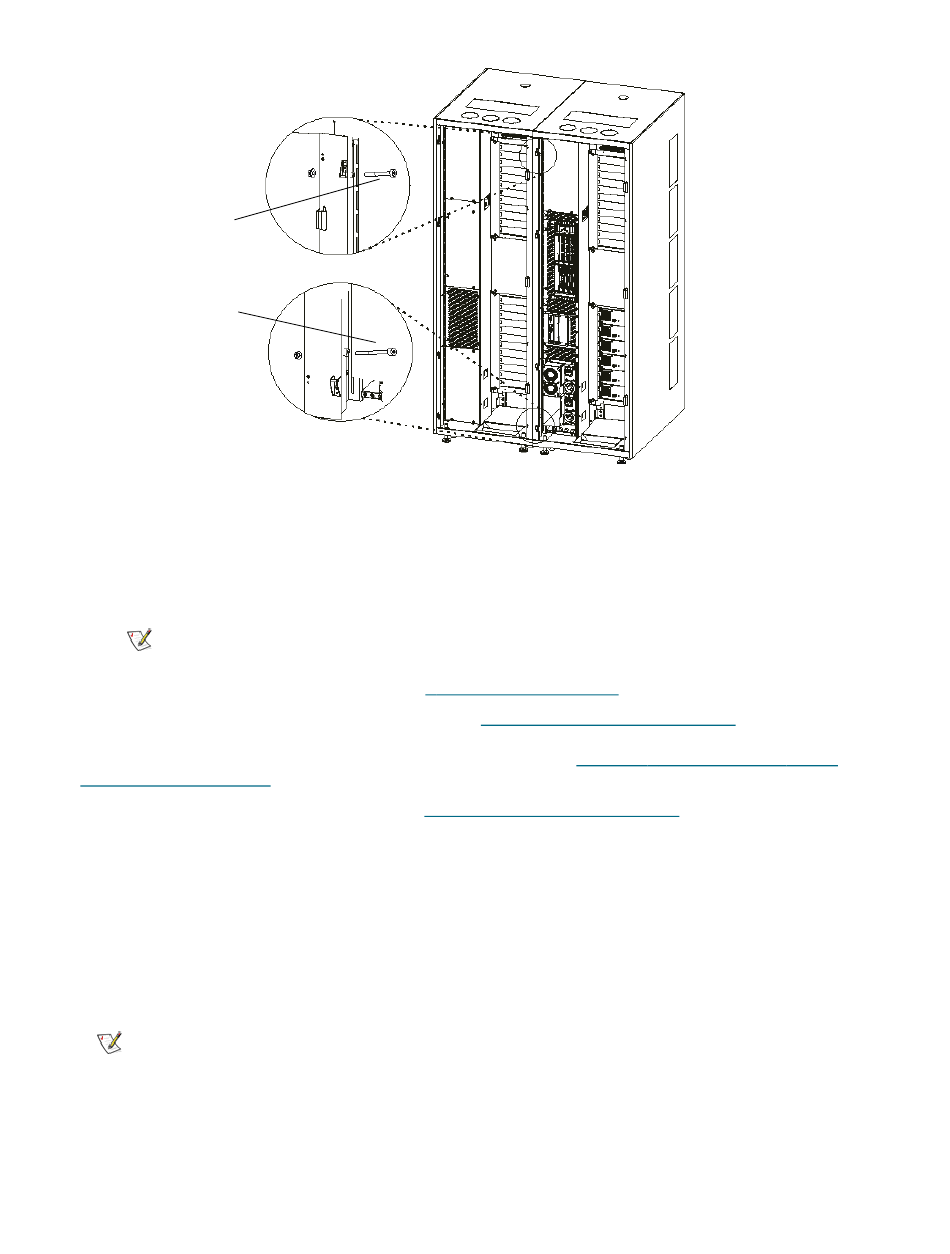

back upper bolt
back lower bolt

Tightening the Attachment Bolts

Once the bolts have been inserted, tighten the bolts using the 6 mm hex wrench and the 13 mm open end
wrench.
Do not overtighten the bolts. Overtightening can damage the vertical frame
Note
post structure.
If this is the last new expansion module, go to
If you are installing a seventh or eighth module, go to
To install additional expansion modules, repeat these procedures,
Installing the System Unit
For libraries with seven or eight modules, see

Setting the Leg Lock Nuts

Required tools: 24 mm open end wrench
1 Verify that all legs are carrying load and that the library does not rock.
2 Use the 24 mm open end wrench to raise all of the leveling leg lock nuts to the top and tighten them
against the welded nut.
Ensure that you do not take the leveling legs out of adjustment during this
Note
process.
40

Setting the Leg Lock Nuts

on page 37, for each additional expansion module.
Installing the X-Axis Chain Trough
on page 40.
Installing the X-Axis Chain Trough
Installing Expansion Modules after
Installing a Multi-Module Library
on page 63.
on page 63.
