19 Use a #2 Phillips screwdriver to replace the top drive cluster cover plate, the mid-module cover plate,
the bottom drive cluster cover plate, and the LBX/IEX cover plate.

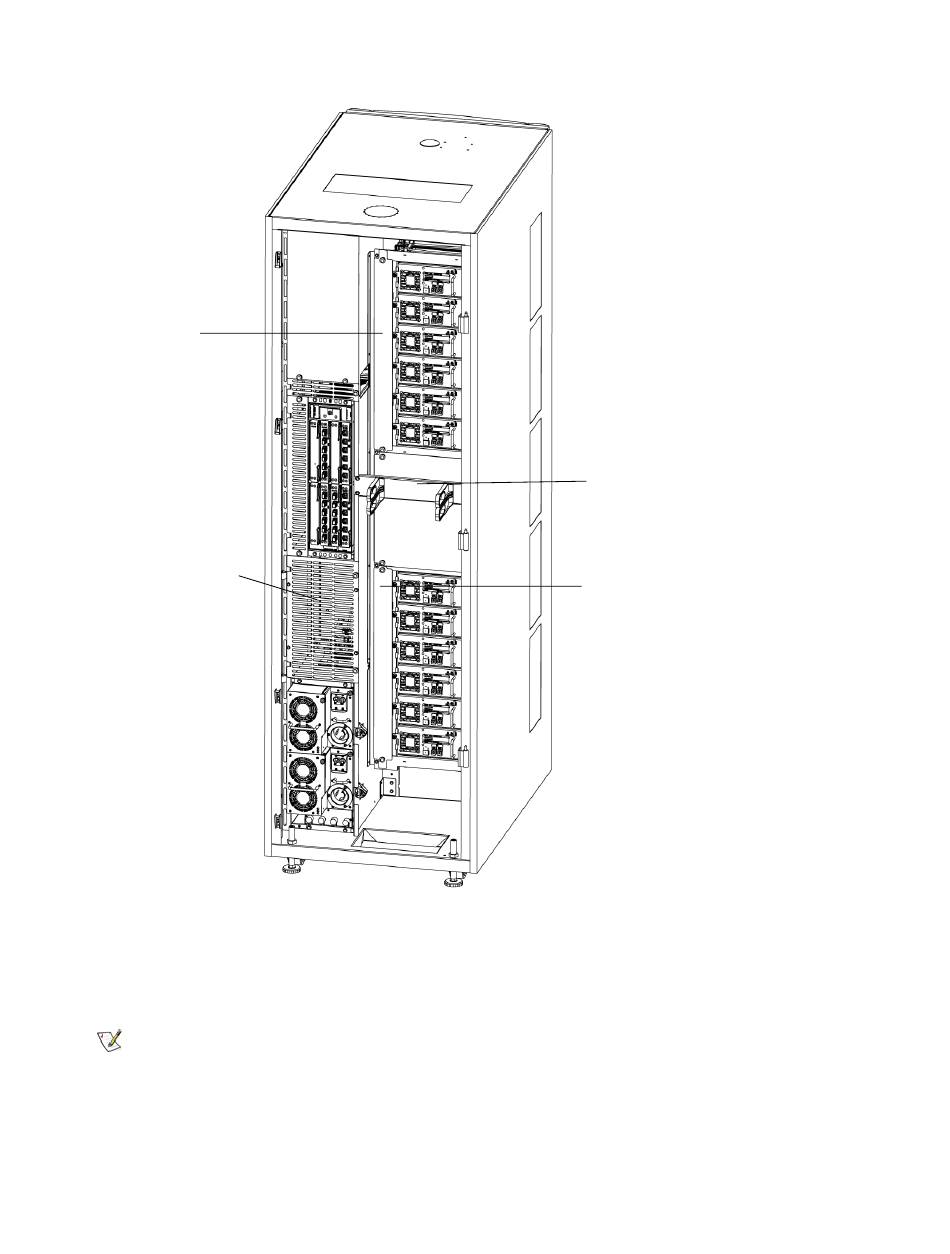

top drive cluster
cover plate
LBX/IEX cover plate
20 Close the service and access doors.
21 Press the Power switch on the operator panel.
To avoid interference with the scanner, the aisle lights are automatically turned
Note
off whenever the Teach or Inventory functions are used.
22 After the Robotics Enabled Indicator turns solid green, log in to the library.
23 Make sure that you are viewing the physical library. From the View menu, select the name of the
physical library.
24 From the LMC, select Setup > Aisle Light Settings.
304
mid-module cover plate
bottom drive cluster
cover plate
Adding Optional Hardware
