2

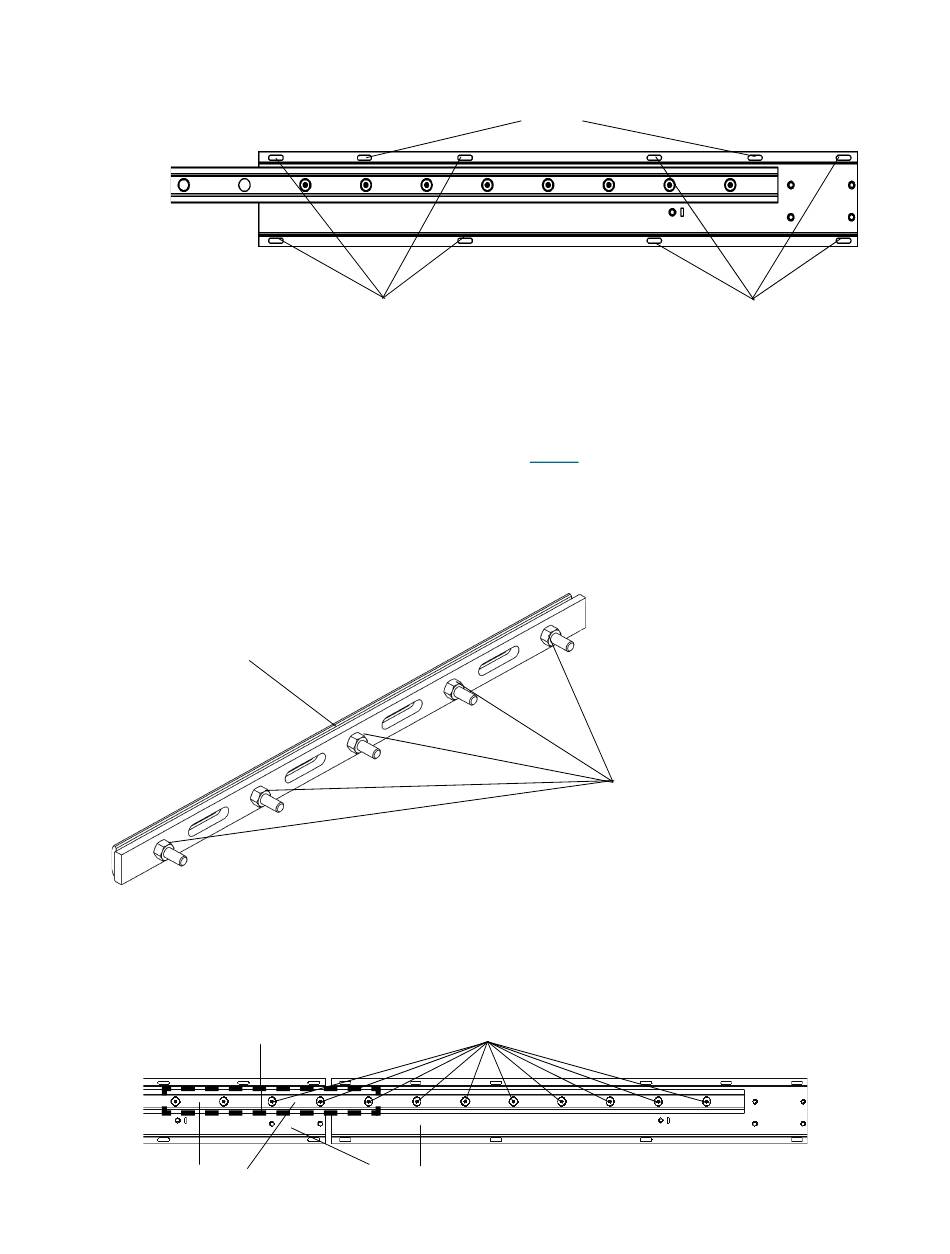

Loosen the eight 2.5 mm screws attaching the X-axis channel to the module.
3
Push the X-axis channel and middle X-axis rail to the left until the X-axis rail of the expansion module
contacts the X-axis rail of the module on the left.
4
Hold the X-axis channel so that the adjacent X-axis rails are touching each other and tighten the eight
2.5 mm screws.
5
Loosen the X-axis rail 3 mm screws that were tightened
Aligning the Middle X-Axis Rail
1
Loosen the five 8 mm nuts on the X-axis rail alignment tool (part number 3-00147-01). Once the nuts
are loose, separate the two metal bars of the tool and insert the back bar into the X-axis rail.
X-axis alignment tool
2
Position the middle of the X-axis rail alignment tool over the junction point in the rails.
If the X-axis rail tool is positioned correctly you should be able gain access to the 3 mm screws through
the holes in the tool.
junction
middle X-axis rails
46
alignment pins
2.5 mm screws
3 mm screws
x-axis channels
2.5 mm screws
Step 1
on page 45.
8 mm nuts
Installing a Multi-Module Library
