Adding an I/O Management Unit

There must be a power chassis in the expansion module when adding an I/O
Note
management unit.
Required tools: 7 mm socket wrench, Phillips screwdriver, ESD strap
1 Shut down the library.
For more information, see
2 Open the service door.
3 Attach the ESD strap to your wrist and to an unpainted surface inside the door.
4 Use your finger or a Phillips screwdriver to loosen the thumbscrews on the cover plate where the I/O
management unit will be installed.
5 Remove the vented cover plate from in front of the LBX board. The cover plate will be reused later in
this procedure.
Scalar i2000 Installation Guide
Shutting Down the Library

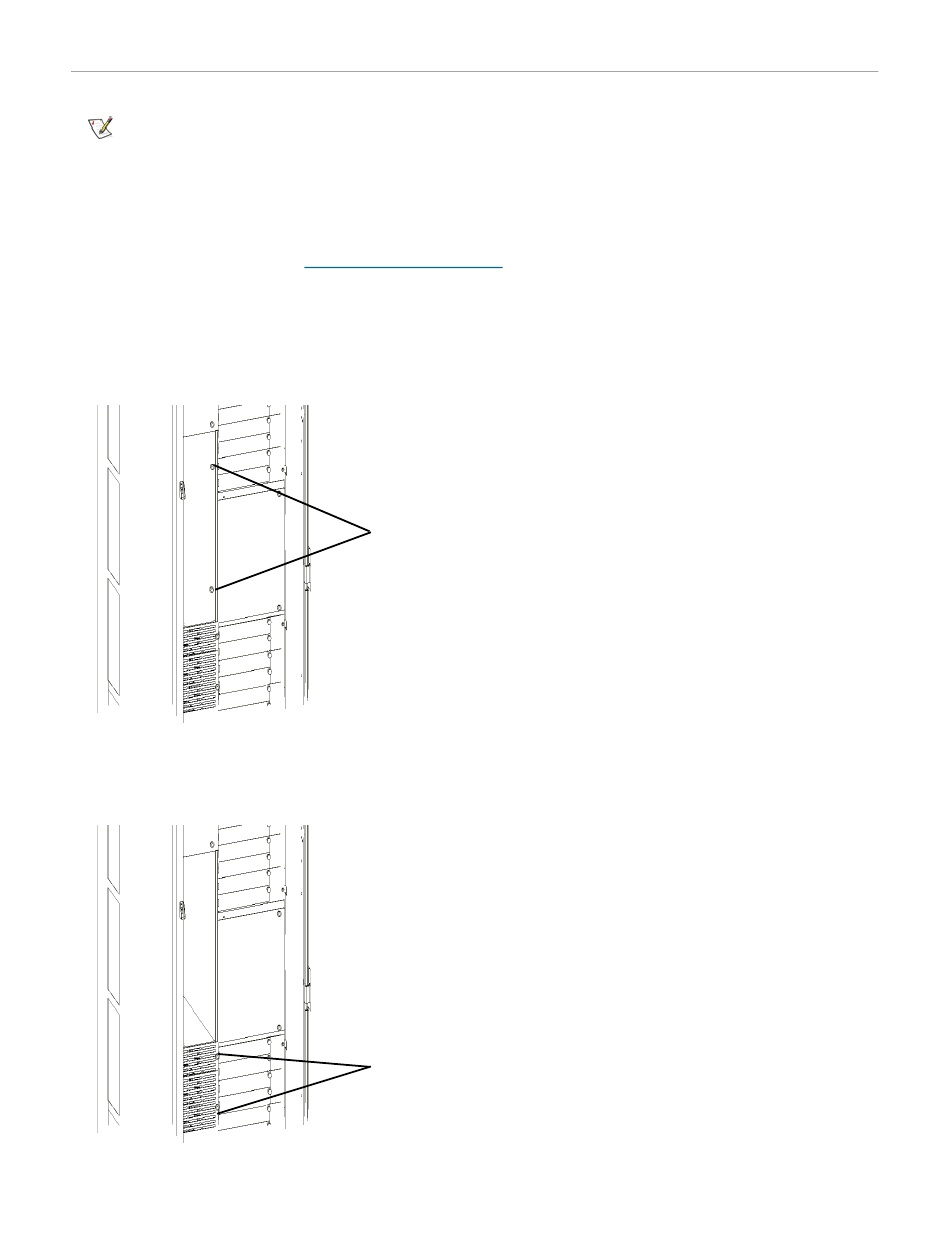

thumbscrews
thumbscrews
on page 232.
