Powering on the Library

Required tools: None
1 Verify that the circuit breaker on the power distribution units is down in the off (O) position.
2 Plug an AC power cable into each of the power distribution units.
3 Plug the other end of all AC power cables into power sources.
Independent power sources for the power distribution units in each module are needed if you want
redundant power.
4 On each of the power distribution units, set the circuit breaker switch to the up (I) position. Fan power
supplies will start but library power is not fully on.

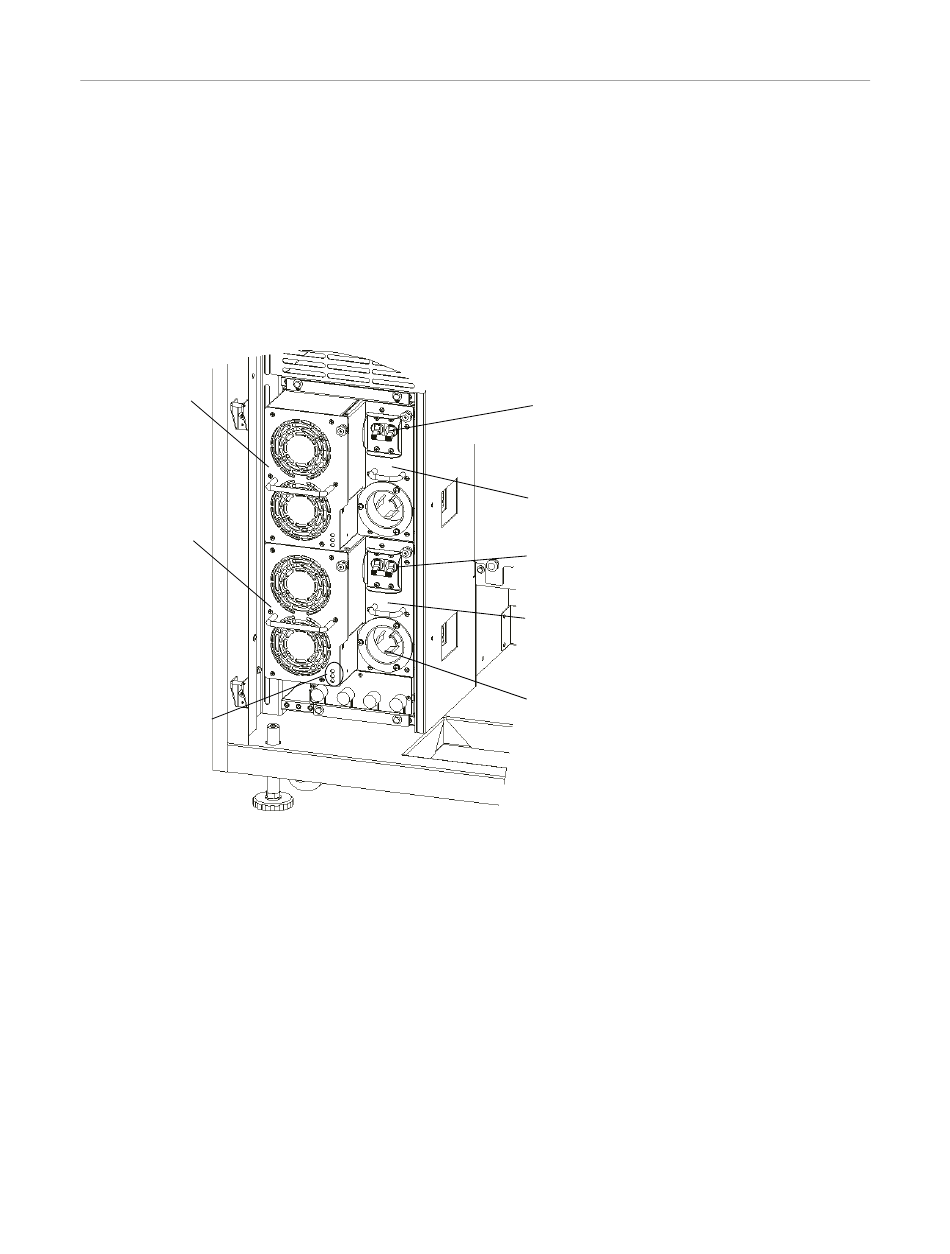

redundant
power supply
(optional)
power supply
status LEDs
5 Verify that the power supply status LEDs are on.
• AC OK - Green
• DC OK - Green
• Fault - Blue
6 Close and latch the service door and access door.
94
circuit breaker
redundant power
distribution unit (optional)
circuit breaker
power distribution unit
AC power cable
connection
Applying Power
