4

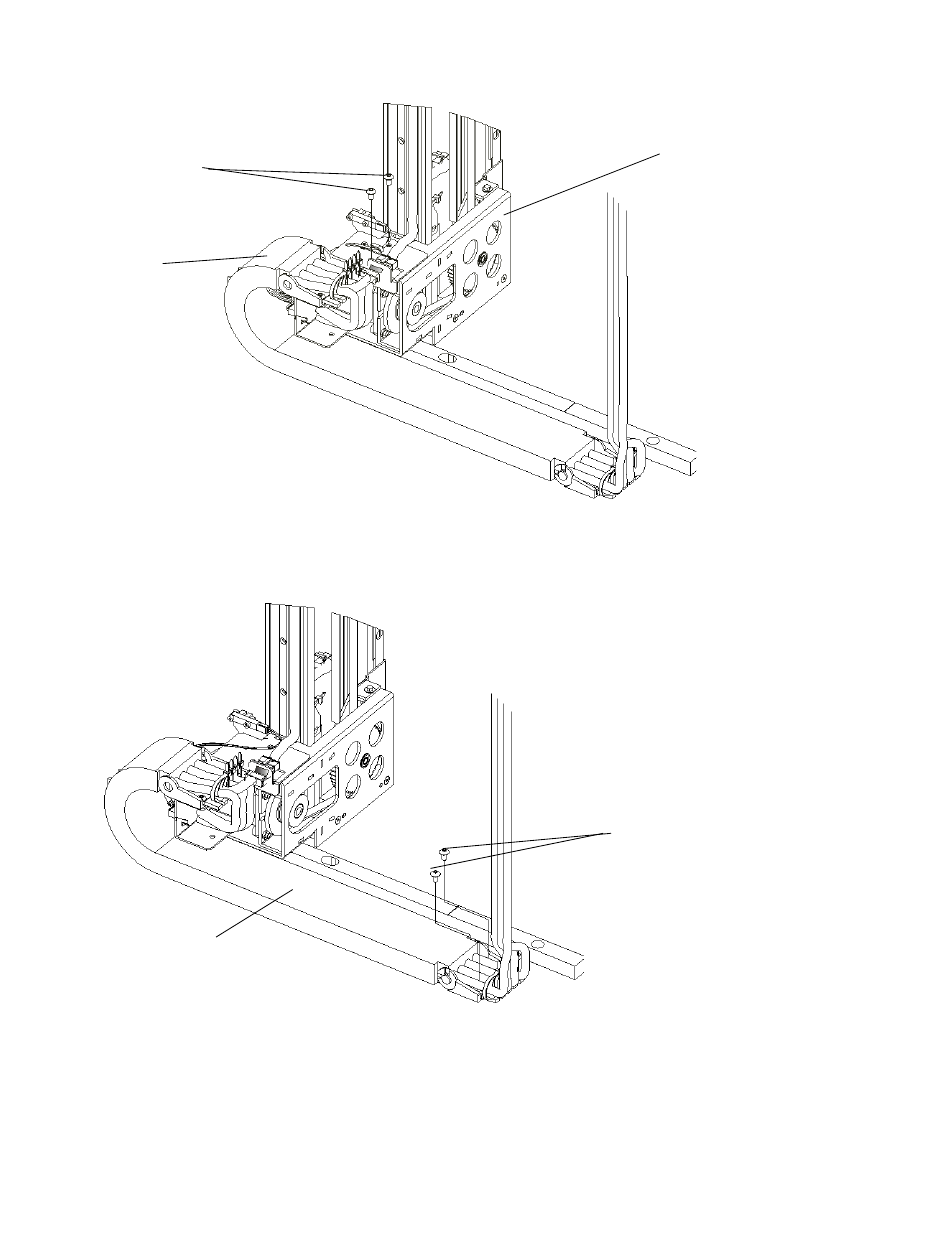

Using the 3 mm hex wrench, remove two 3 mm screws attaching the X-axis chain assembly (W8) to the
Y-axis drive mount assembly.
3 mm screws
X-axis
chain assembly
5
Using the 3 mm hex wrench, remove the two screws securing the X-axis chain assembly (W8) to the
bottom of the control module.
X-axis chain
assembly (W8)
Scalar i6000 Installation Guide
Y-axis drive
mount assembly
3 mm screws
