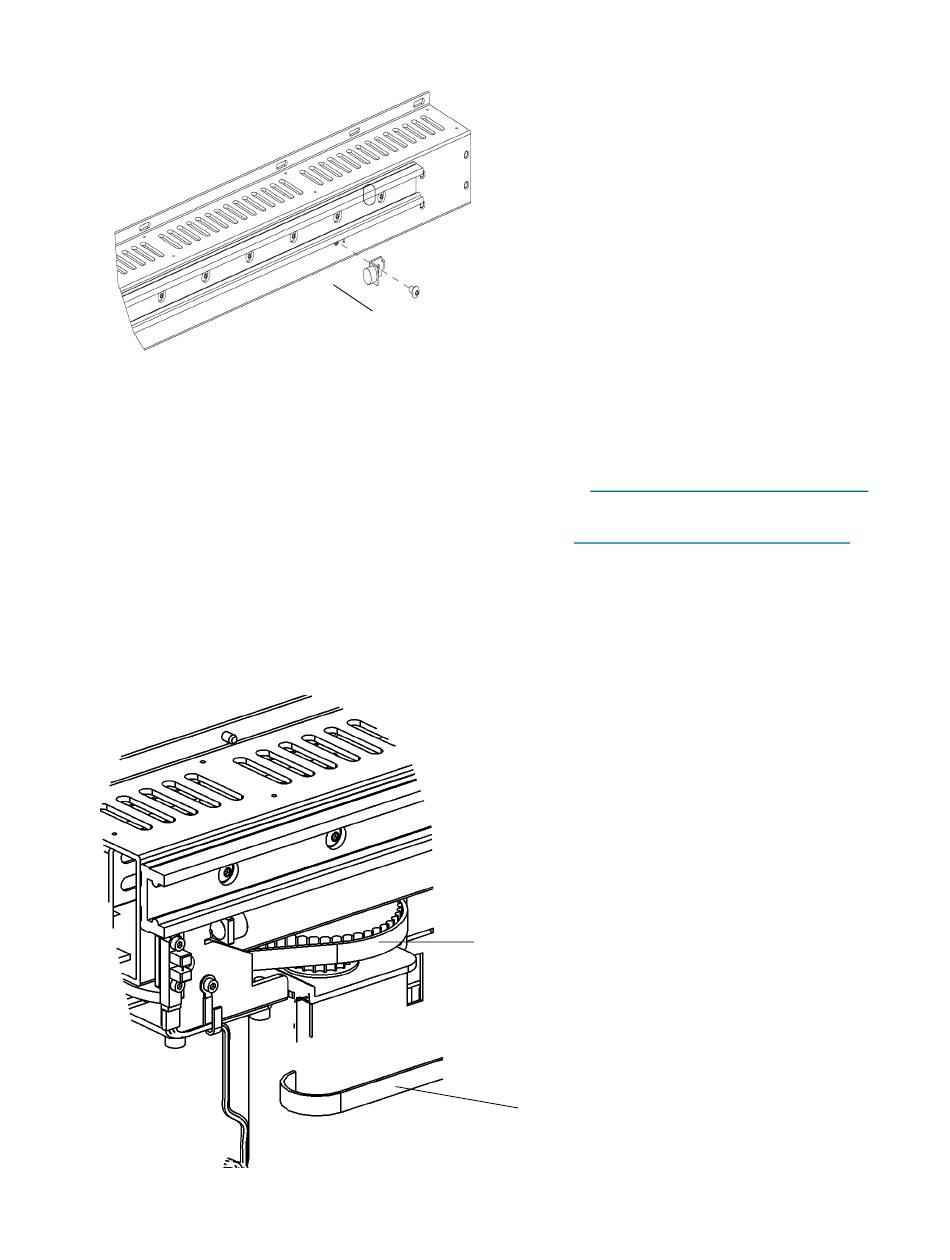

5 Use a 3 mm hex wrench to attach the hard stop to the substrate below the X-axis center rail.

Installing the X-Axis Belt

Determine the library configuration requirements:
If the library configuration will be less than eight modules, follow the
on page 53.
If the library configuration will be nine modules or more, follow the
page 56.
Tools required: 2.5 mm hex wrench, 4 mm hex wrench, 3 mm hex wrench
Eight Modules or Less Configuration
1 Thread the belt around the back side of the X-axis pulley assembly.
Scalar i6000 Installation Guide
3 mm screw
thread belt through the
back of the pulley assembly
belt
Eight Modules or Less Configuration
Nine Modules or More Configuration on
53
