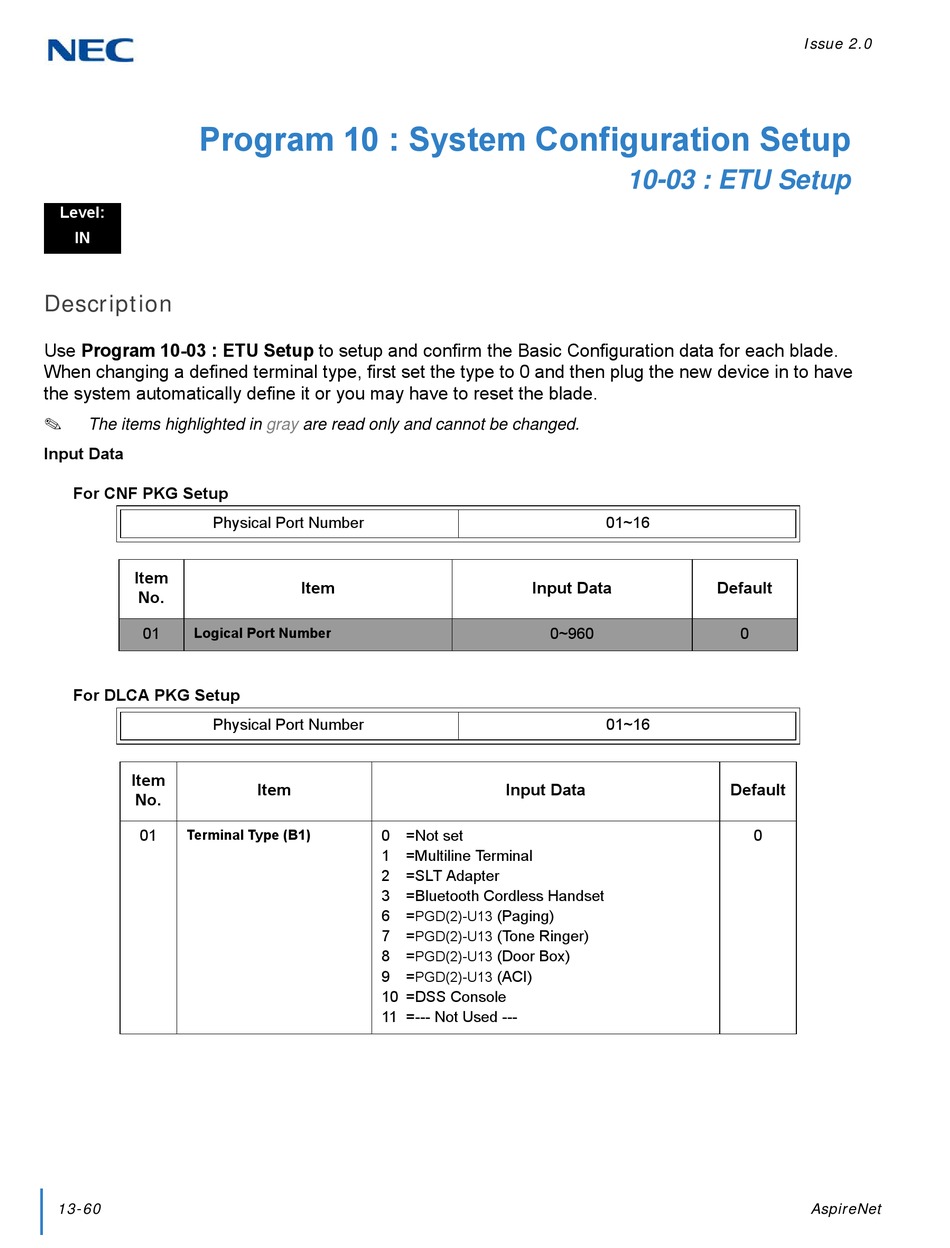

NEC Univerge SV9100 Manual page 655

Program 10 : System Configuration Setup
Level:
IN
Description
Use Program 10-03 : ETU Setup to setup and confirm the Basic Configuration data for each blade.
When changing a defined terminal type, first set the type to 0 and then plug the new device in to have
the system automatically define it or you may have to reset the blade.

The items highlighted in
Input Data
For CNF PKG Setup
Physical Port Number
Item
No.
01
Logical Port Number
For DLCA PKG Setup
Physical Port Number
Item
No.
01 Terminal Type (B1)
13-60
gray are read only and cannot be changed.
Item
Item
0 =Not set
1 =Multiline Terminal
2 =SLT Adapter
3 =Bluetooth Cordless Handset
6 =
PGD(2)-U13
7 =
PGD(2)-U13
8 =
PGD(2)-U13
9 =
PGD(2)-U13
10 =DSS Console
11 =--- Not Used ---
10-03 : ETU Setup
01~16
Input Data
0~960
01~16
Input Data
(Paging)
(Tone Ringer)
(Door Box)
(ACI)
Issue 2.0
Default
0
Default
0
AspireNet
