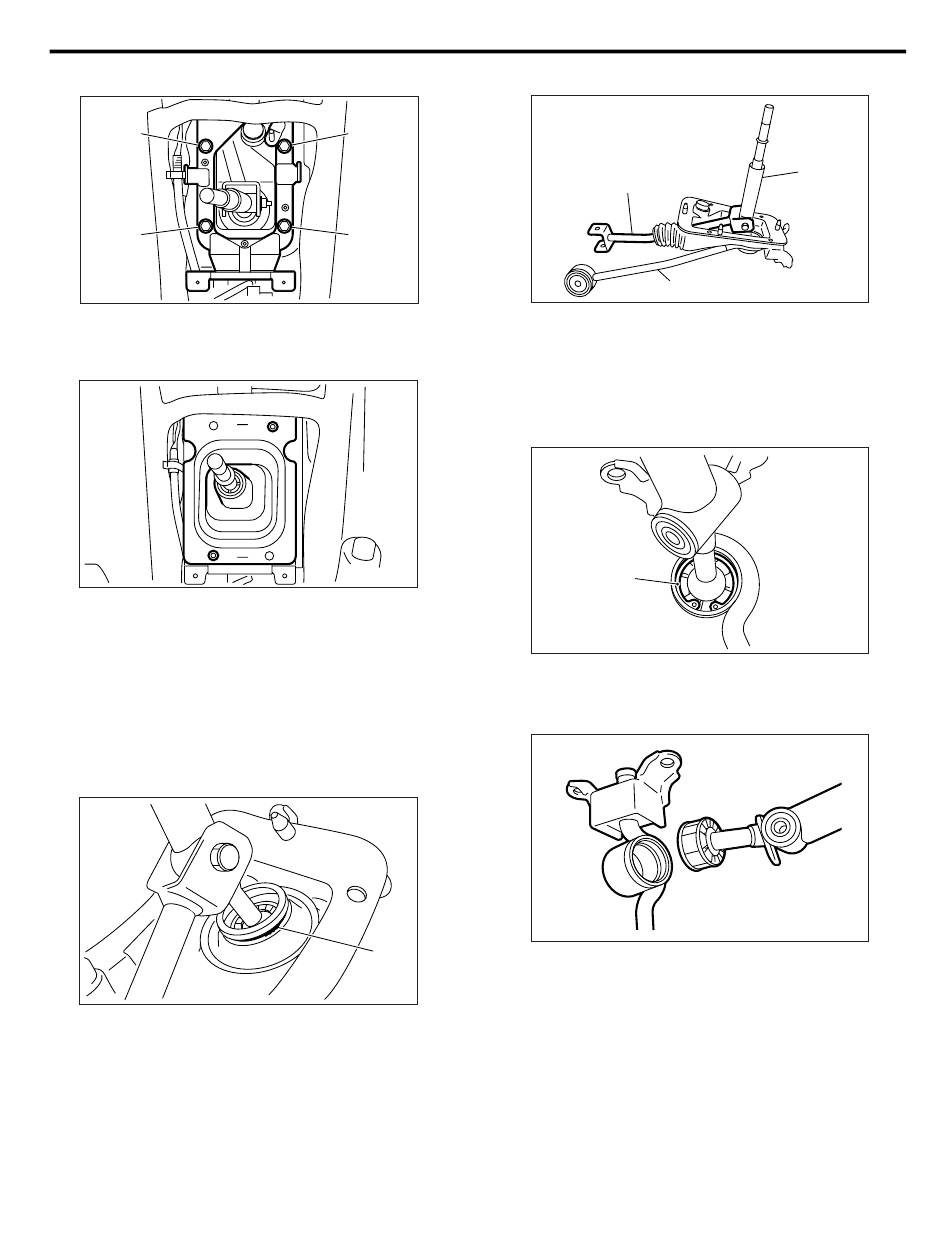

CONTROL SYSTEMS
(5) Tighten the bolts (C) and (D).
(C)
(D)
10) Install the harness clamp to plate.
11) Install the boot and the insulator assembly, and
secure them with clamp.
12) Install the front cover assembly.
13) Install the console box. <Ref. to EI-53, INSTAL-
LATION, Console Box.>
14) Confirm that gear shift can be shift to each gear
properly.
C: DISASSEMBLY
1. 5MT MODEL
1) Remove the lock wires.
(A) Lock wire
MT Gear Shift Lever
2) Remove the rod from lever.
(B)
(A)
CS-00582
3) Separate the rod and inner boot.
4) Remove the snap ring from the stay.
CS-00312
5) Separate the gear shift lever and the stay.
(A)
CS-00316
CS-42
(A)
(C)
(A) Rod
(B) Lever
(C) Stay
(A)
(A) Snap ring
(B)
CS-00317
CS-00318
CS-00319
