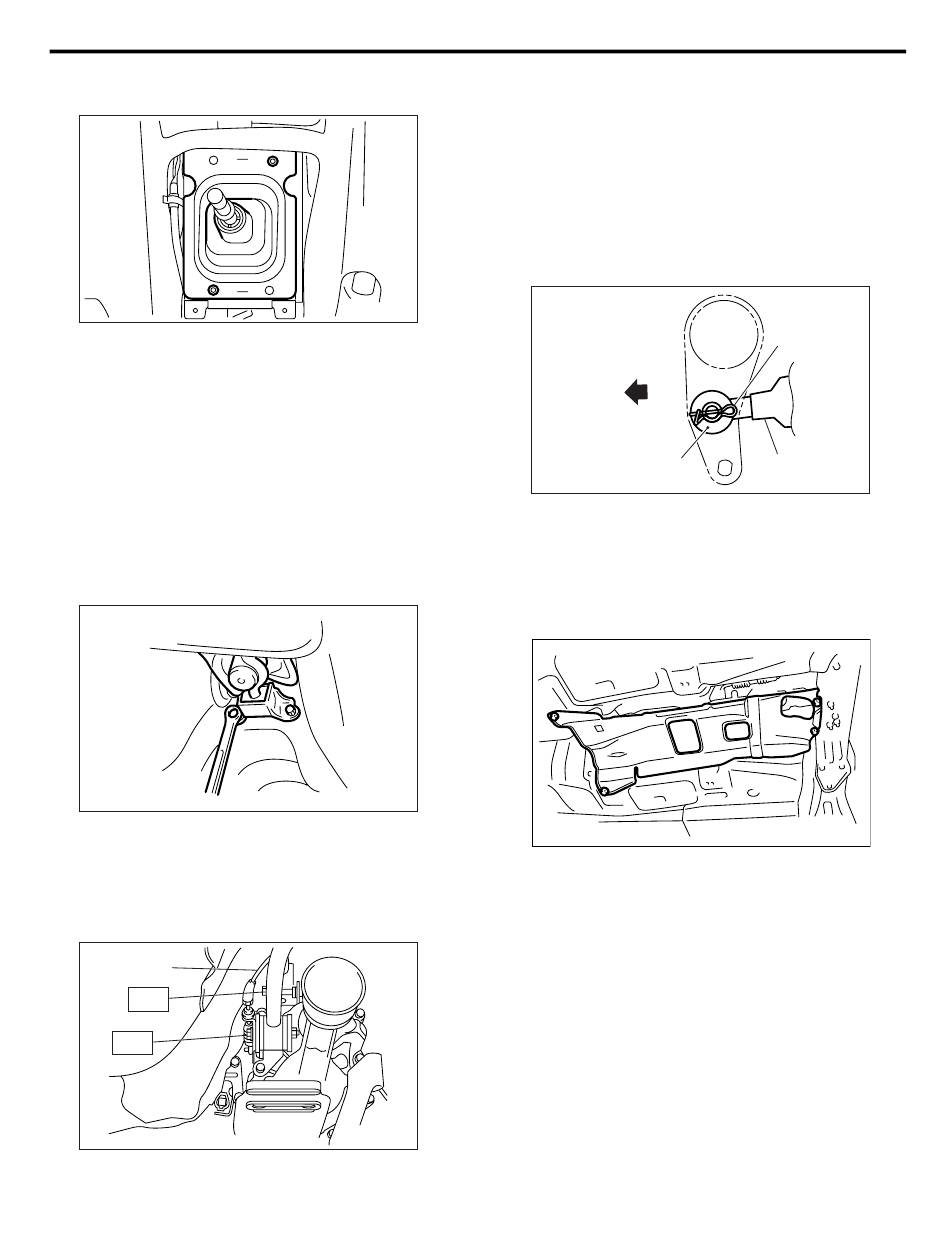

11) Install the boot and the insulator assembly, and
secure them with clamp.
12) Install the front cover assembly.
13) Install the console box. <Ref. to EI-53, INSTAL-
LATION, Console Box.>
2. 6MT MODEL
1) Insert the gear shift lever from the room side.
NOTE:
Insert the rod and the stay, and then position them
onto transmission mounting.
2) Mount the cushion rubber on the body.
Tightening torque:
⋅
18 N m (1.8 kgf-m, 13.3 ft-lb)
3) Move the transmission to the right side, then in-
stall the joint COMPL and stay.
Tightening torque:
⋅
T1: 12 N m (1.2 kgf-m, 8.9 ft-lb)
⋅
T2: 32 N m (3.3 kgf-m, 23.6 ft-lb)
(A)
T1
T2
(A) Reverse check cable
MT Gear Shift Lever
4) Install the crossmember. <Ref. to 6MT-32, IN-
STALLATION, Transmission Mounting System.>
5) Install the reverse check cable end, washer and
snap pin to reverse check lever.
NOTE:
• Take care to install the snap pin in proper direc-
tion.
• Perform adjustment of reverse check cable be-
fore installation. <Ref. to CS-54, ADJUSTMENT,
Reverse Check Cable.>
CS-00312
6) Install the heat shield cover.
CS-00222
7) Install the rear exhaust pipe and muffler. <Ref. to
EX(H6DO)-7,
Pipe.> <Ref. to EX(H6DO)-9, INSTALLATION,
Muffler.>
8) Install the under cover.
9) Install the plate assembly to body.
Tightening torque:
18 N
(1) Set the plate assembly to vehicle.
(2) Temporarily tighten the bolt (A).
(3) Tighten the bolt (B).
(4) Tighten the bolt (A).
CS-00223
CS-41
(D)
(B)
(A) Reverse check cable
(B) Washer
(C) Snap pin
(D) Front side
INSTALLATION,
⋅
m (1.8 kgf-m, 13.3 ft-lb)
CONTROL SYSTEMS
(C)
(A)
CS-00224
AT-01331
Rear Exhaust
