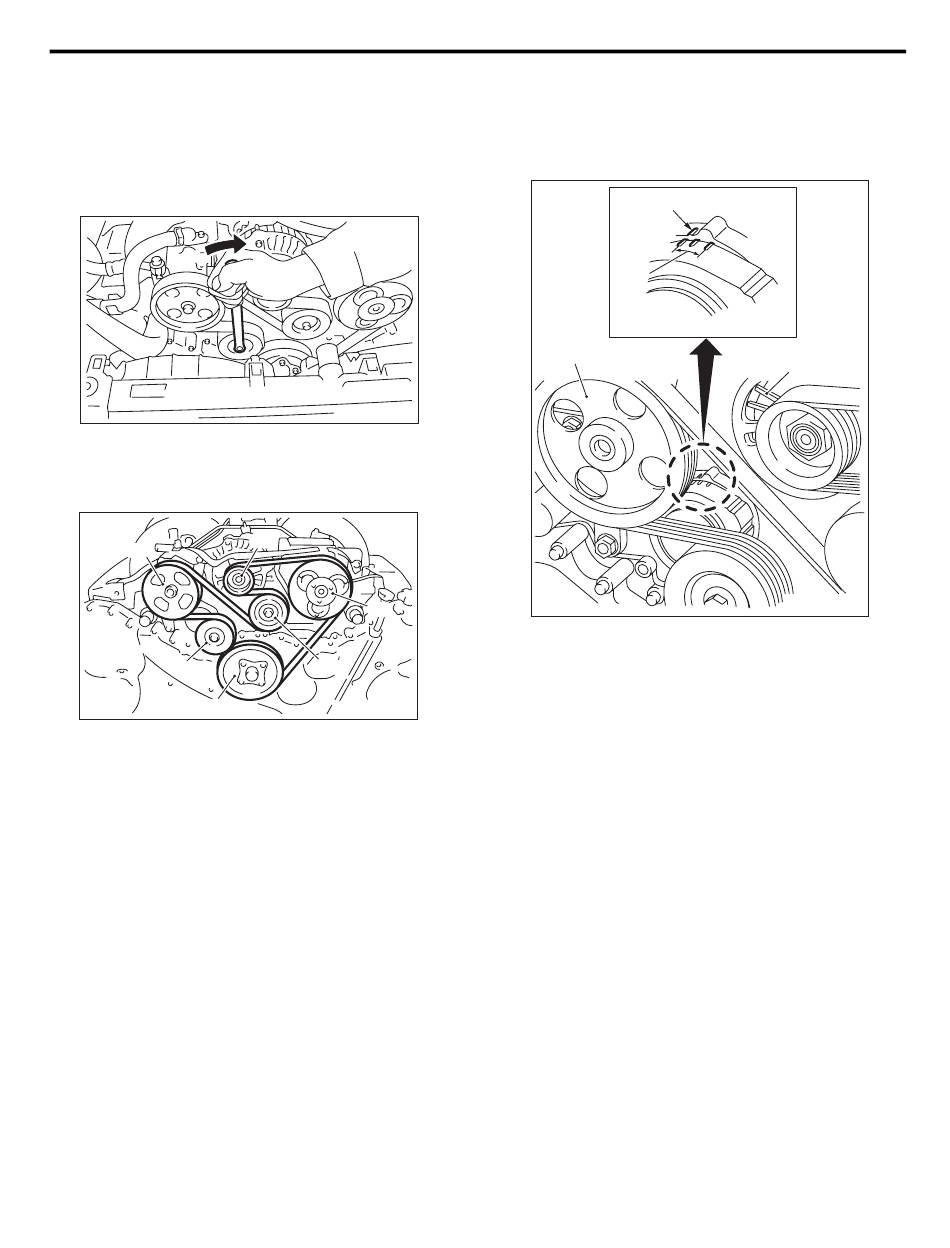

9. V-belt
A: REMOVAL
1) Install the tool to belt tension adjuster assembly
installation bolt.
2) Rotate the tool clockwise and loosen the V-belt
to remove.
3) Remove the V-belt cover.
B: INSTALLATION
Install in the reverse order of removal.
(1)
(2)
(3)
(1) Power steering oil pump pulley
(2) Belt tension adjuster ASSY
(3) Crank pulley
(4) A/C compressor
(5) Belt idler
(6) Generator
ME-00473
(6)
(4)
(5)
ME-00474
ME(H6DO)-33
V-belt
C: INSPECTION
1) Replace the V-belt, if cracks, fraying or wear is
found.
2) Make sure that the V-belt automatic belt tension
indicator (A) is within the range (D).
(C)
(A) Indicator
(B) Generator
(C) Power steering oil pump pulley
(D) Service limit
MECHANICAL
(A)
(D)
(B)
ME-00475
