CONTROL SYSTEMS

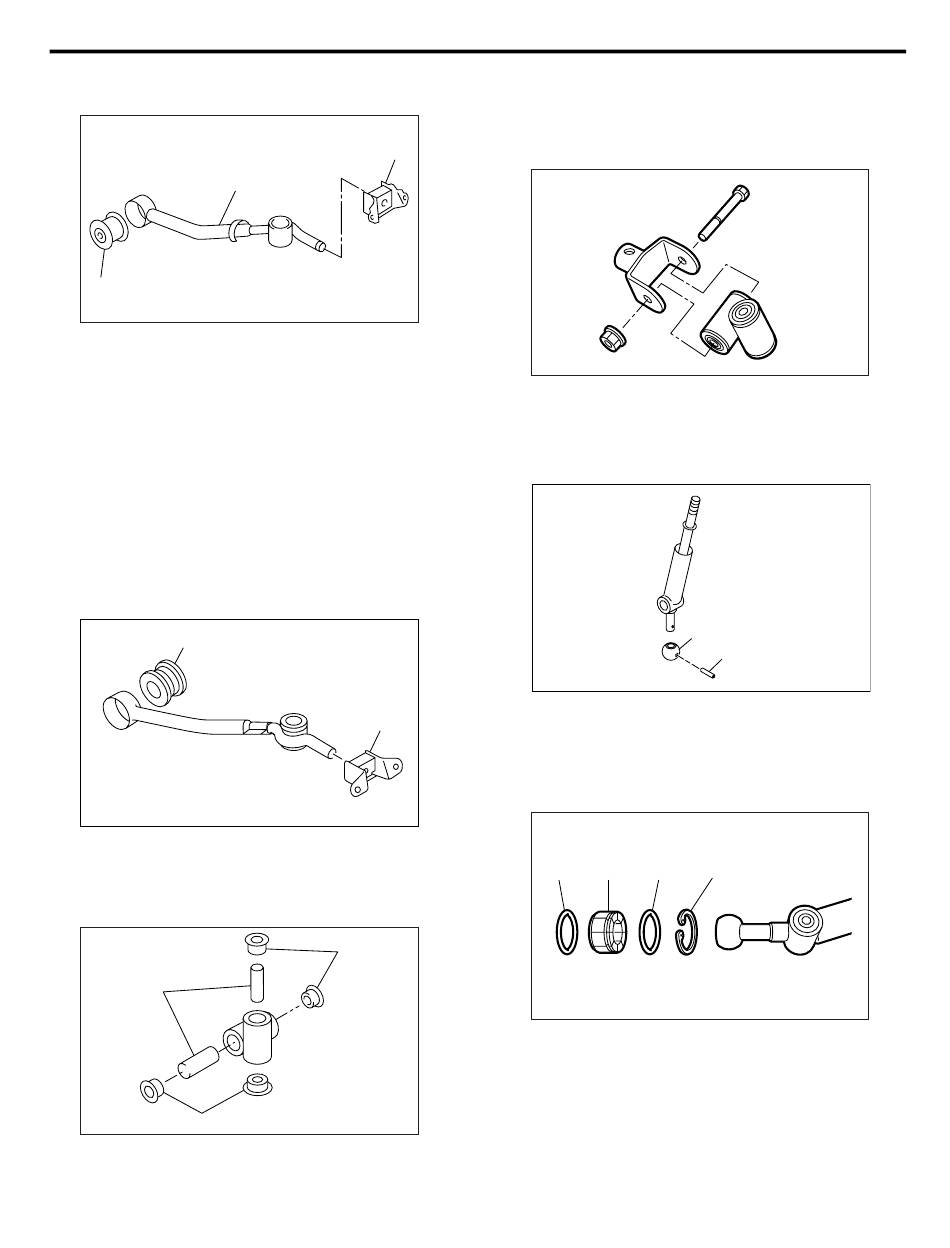

16) Remove the bushing and cushion rubber from
the stay.
(A)
(A) Bushing
(B) Stay
(C) Cushion rubber
D: ASSEMBLY
1. 5MT MODEL
NOTE:
• Clean all the parts before assembly.
• Apply
grease
[KOPR-KOTE
003603001) or equivalent] to each part.
1) Mount the bushing and cushion rubber on the
stay.
(A)
(A) Bushing
(B) Cushion rubber
2) Install the bushing and spacer to boss.
(B)
(A)
(A) Bushing
(B) Spacer
MT Gear Shift Lever
(C)
(B)
CS-00239
(Part
(B)
CS-00061
(A)
CS-00238
3) Using new self-locking nuts, install the boss to
the joint.
Tightening torque:
⋅
18 N
m (1.8 kgf-m, 13.3 ft-lb)
4) Install the snap ring to gear shift lever and install
the bushing.
NOTE:
Apply grease to the bushing.
No.
(A) Spring pin
(B) Bushing
5) Apply grease to the bushing and O-ring, and
then install to the gear shift lever.
(A)
(B)
(A) O-ring
(B) Bushing
(C) Snap ring
CS-46
CS-00322
(B)
(A)
CS-00060
(A)
(C)
CS-00320
