Subaru Legacy 2005 Service Manual page 2008

CONTROL SYSTEMS

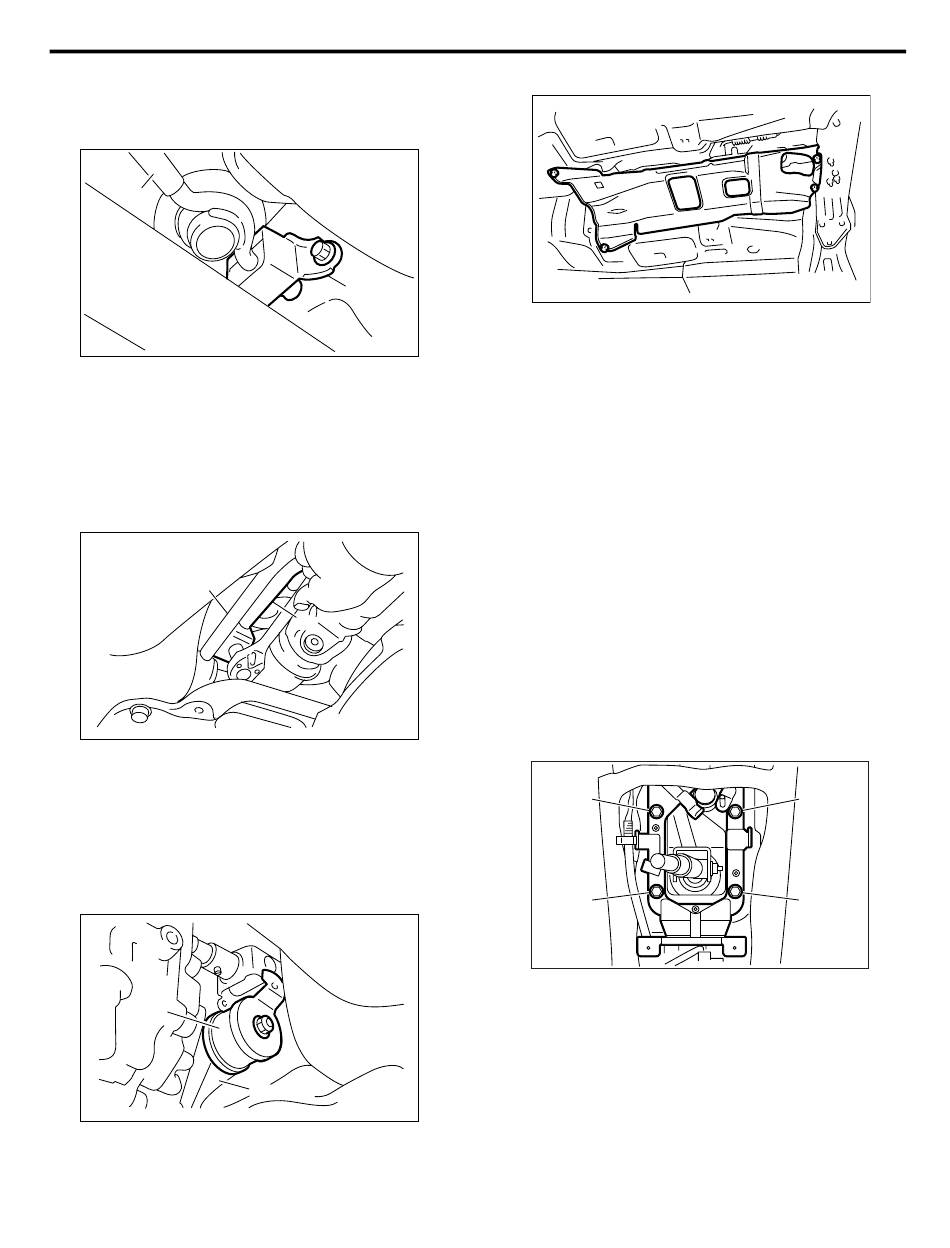

4) Mount the cushion rubber on the vehicle body.
Tightening torque:
⋅
18 N m (1.8 kgf-m, 13.3 ft-lb)
(A)
(A) Stay
(B) Cushion rubber
5) Using new self-locking nuts, connect the rod to
the joint.
Tightening torque:
⋅
18 N m (1.8 kgf-m, 13.3 ft-lb)
(A)
(A) Stay
(B) Rod
6) Using new self-locking nuts, connect the stay to
transmission bracket.
Tightening torque:
⋅
18 N m (1.8 kgf-m, 13.3 ft-lb)
(A)
(A) Stay
(B) Transmission bracket
MT Gear Shift Lever
(B)
CS-00052
(B)
CS-00051
(B)
CS-00050
7) Install the heat shield cover.
8) Install the rear exhaust pipe and muffler.
• SOHC model
<Ref. to EX(H4SO 2.0)-10, INSTALLATION, Rear
Exhaust Pipe.> <Ref. to EX(H4SO 2.0)-12, IN-
STALLATION, Muffler.>
• DOHC non-turbo model
<Ref. to EX(H6DO)-7, INSTALLATION, Rear Ex-
haust Pipe.> <Ref. to EX(H6DO)-9, INSTALLA-
TION, Muffler.>
• DOHC turbo model
<Ref. to EX(H4DOTC)-11, INSTALLATION, Rear
Exhaust Pipe.> <Ref. to EX(H4DOTC)-12, IN-
STALLATION, Muffler.>
9) Install the plate assembly to body.
Tightening torque:
⋅
18 N m (1.8 kgf-m, 13.3 ft-lb)
(1) Set the plate assembly to vehicle.
(2) Temporarily tighten the bolt (A).
(3) Tighten the bolt (B).
(4) Tighten the bolt (A).
(5) Tighten the bolts (C) and (D).
(C)
(D)
10) Install the harness clamp to plate.
CS-40
AT-01331
(B)
(A)
CS-00314
