See Graphics Options
Highlight Color
You can specify a highlight color, in addition to a selection color and an alert color.
See Graphics Options
Hide by Filter
In addition to hiding selected elements in a view, or elements based on categories, you can hide elements
in a view using filters.
For example, suppose you want to be able to hide interior walls, doors, floors, stairs, and ramps in a view.
To do this, you can set the Function parameter for those family types to Interior, and then apply the
predefined Interior filter to the view. As a result, the view hides all elements whose Function parameter is
set to Interior. This feature can be helpful when preparing a view for export.

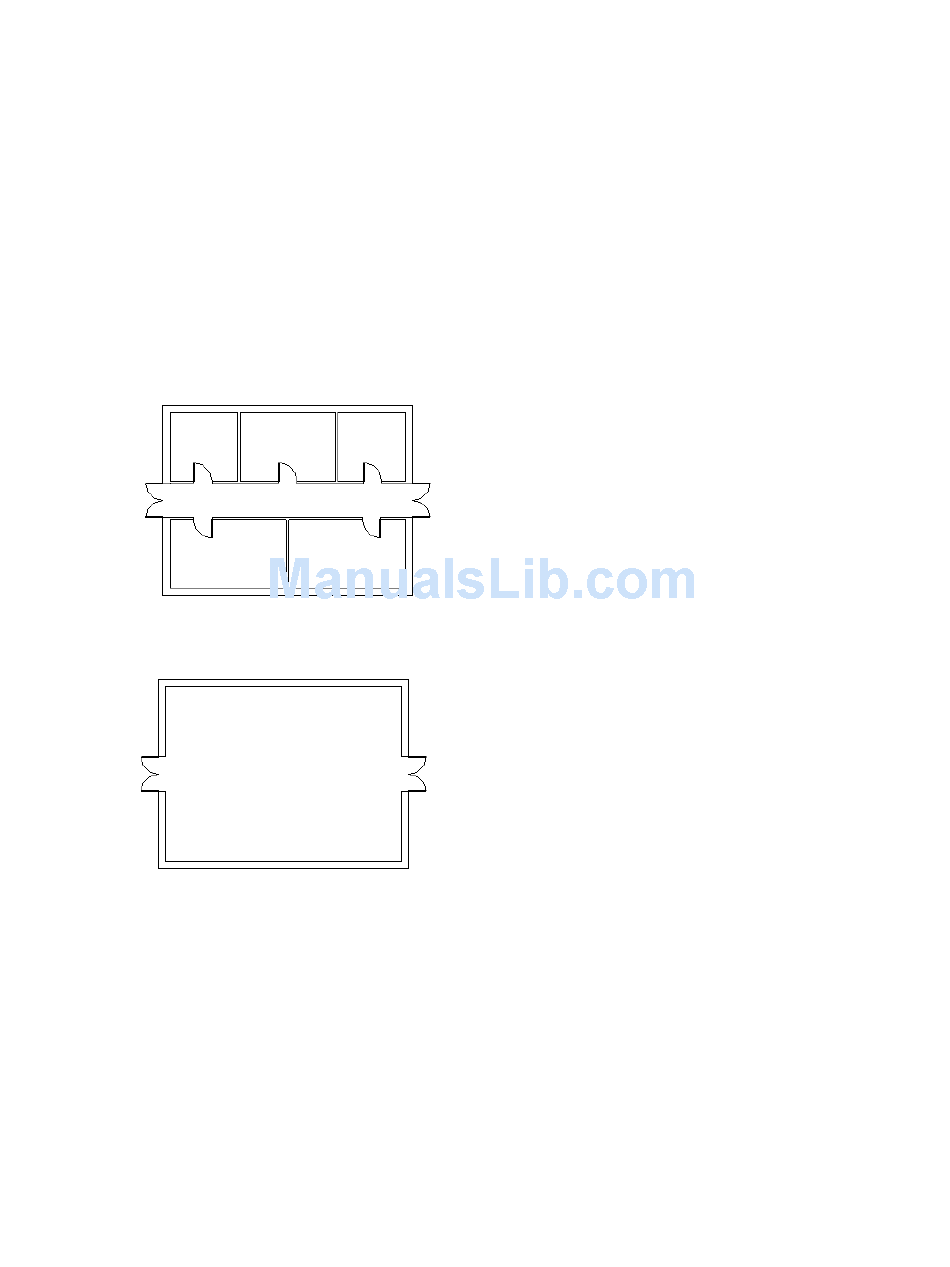

Floor plan showing interior and exterior walls
and doors
Floor plan with Interior filter applied to hide
interior walls and doors
See Hiding Elements
on page 204.

Details and Annotations

Autodesk Revit Architecture 2010 offers the following new feature for detailing and annotating.
Spot Slope
Spot slope is a new type of spot dimension, similar to spot elevation. A spot slope displays the slope at a
specific point on a face or an edge of a model element. You can place spot slopes in plan views, elevation
views, and section views. The following illustration shows the 2 spot slope types.
on page 517.
on page 517.
on page 208 and Controlling Visibility and Graphic Display of Elements Using Filters
