Processor Configuration Registers

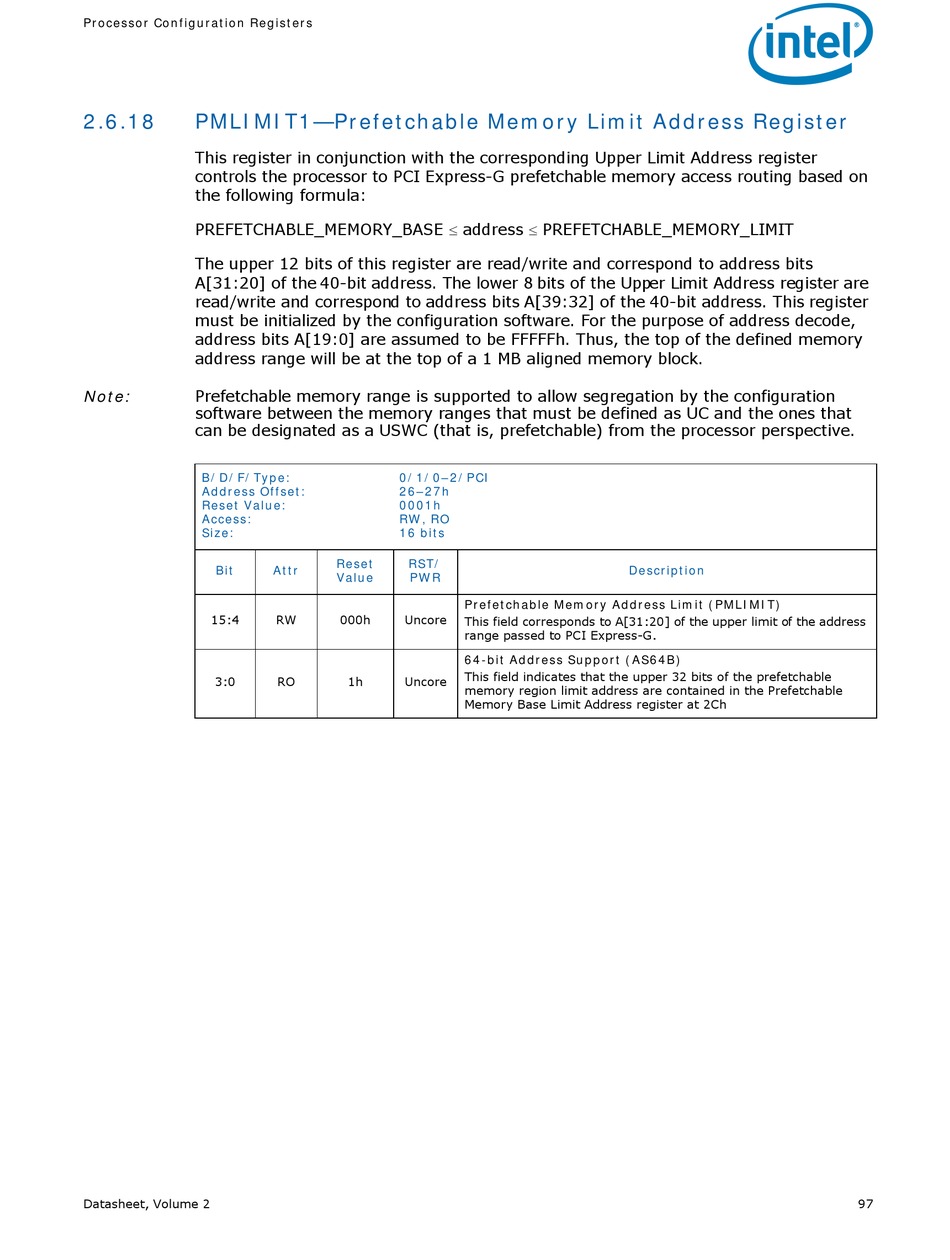

2.6.18 PMLIMIT1—Prefetchable Memory Limit Address Register
This register in conjunction with the corresponding Upper Limit Address register
controls the processor to PCI Express-G prefetchable memory access routing based on
the following formula:
PREFETCHABLE_MEMORY_BASE  address  PREFETCHABLE_MEMORY_LIMIT
The upper 12 bits of this register are read/write and correspond to address bits
A[31:20] of the 40-bit address. The lower 8 bits of the Upper Limit Address register are
read/write and correspond to address bits A[39:32] of the 40-bit address. This register
must be initialized by the configuration software. For the purpose of address decode,
address bits A[19:0] are assumed to be FFFFFh. Thus, the top of the defined memory
address range will be at the top of a 1 MB aligned memory block.
Note: Prefetchable memory range is supported to allow segregation by the configuration
software between the memory ranges that must be defined as UC and the ones that
can be designated as a USWC (that is, prefetchable) from the processor perspective.
B/D/F/Type:
Address Offset:
Reset Value:
Access:
Size:
Bit
15:4
3:0
Datasheet, Volume 2
0/1/0–2/PCI
26–27h
0001h
RW, RO
16 bits
Reset RST/
Attr
Value PWR
RW 000h Uncore
RO 1h Uncore
Description
Prefetchable Memory Address Limit (PMLIMIT)
This field corresponds to A[31:20] of the upper limit of the address
range passed to PCI Express-G.
64-bit Address Support (AS64B)
This field indicates that the upper 32 bits of the prefetchable
memory region limit address are contained in the Prefetchable
Memory Base Limit Address register at 2Ch
