INVT Goodrive350 Series Operation Manual page 43

Goodrive350 IP55 High-ingress Protection Series VFD

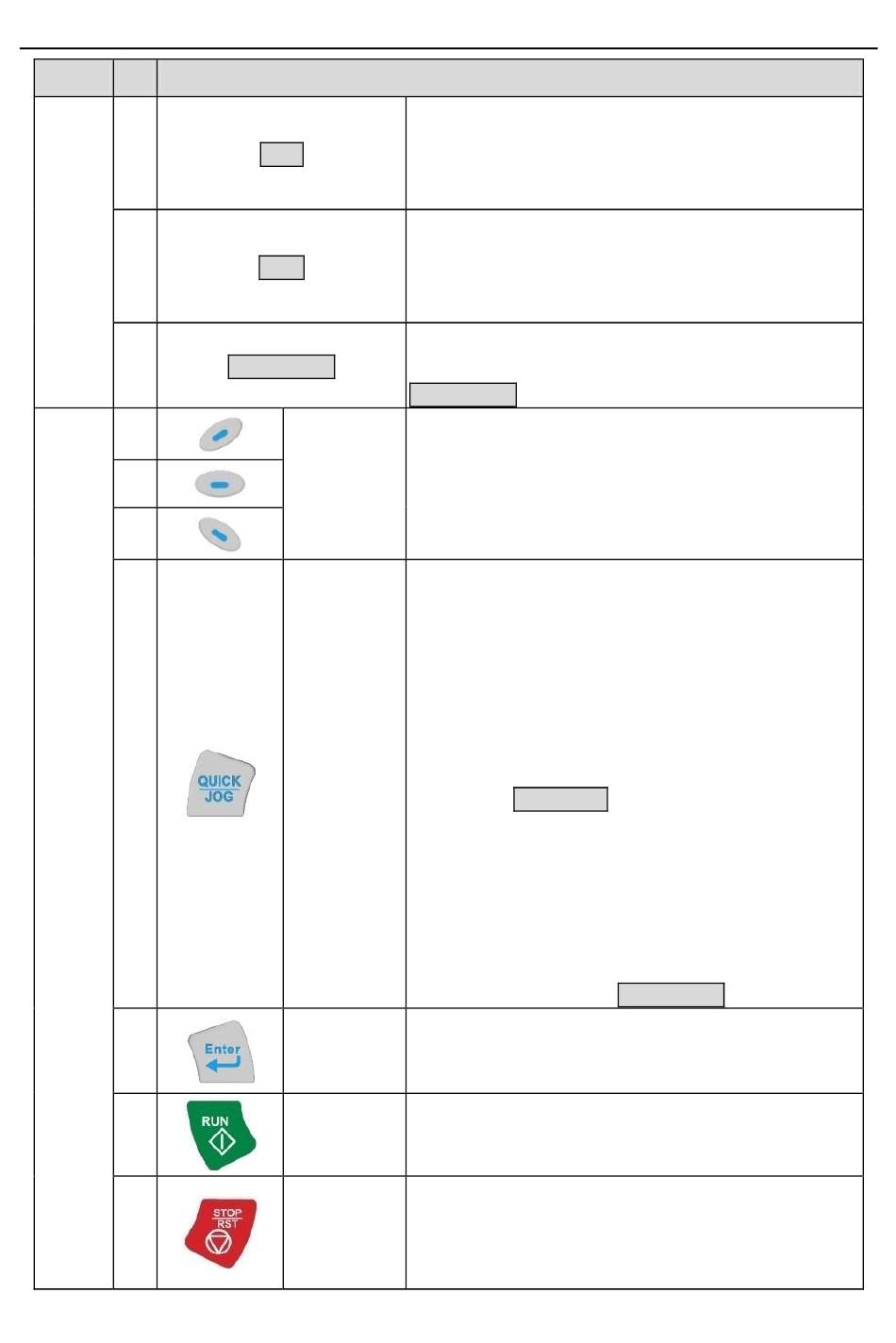

Name No.
(1)
Status
(2)
indicator
(3)
(4)
(5)
(6)
(7)
Keys
(8)
(9)
(10)
RUN
TRIP
QUICK/JOG
Function key
Short-cut key
Confirmation
key
Run key
Stop/Reset
key
Description
Run indicator
Off: The VFD is stopped.
Blinking: The VFD is in parameter autotuning.
On: The VFD is running.
Fault indicator
LED on: The VFD is in fault state.
LED off: The VFD is in normal state.
LED blinking: The VFD is in pre-alarm state.
Short-cut key indicator, which displays different state
under different functions, see definition of
QUICK/JOG key for details.
The function of function key varies with the menu.
The function of the function key is displayed in the
footer.
Re-definable. It is defined as JOG function by default,
namely jogging. The function of short-cut key can be
set by the ones of P07.02, as shown in the following:
0: No function
1: Jogging (linkage indicator (3); logic : NO)
2: Reserved
3: FWD/REV switch-over (linkage indicator (3); logic:
NC)
4: Clear the UP/DOWN setting (linkage indicator (3)
logic: NC)
5: Coast to stop (linkage indicator (3); logic : NC)
6: Switch command channels in sequence (linkage
indicator (3); logic: NC)
7: Reserved
Note: After restoring to default values, the default
function of short-cut key QUICK/JOG is 1.
The function of confirmation key varies with menus,
such as confirming parameter setup, confirming
parameter selection, and entering the next menu.
Under keypad operation mode, the running key is
used for running operation or autotuning operation.
Press it to stop the VFD that is running or autotuning.
The function of this key is restricted by P07.04. In
fault alarm state, this key can be used for reset in any
control modes.
-25-
Basic operation guidelines
