Goodrive350 IP55 High-ingress Protection Series VFD Installation guidelines

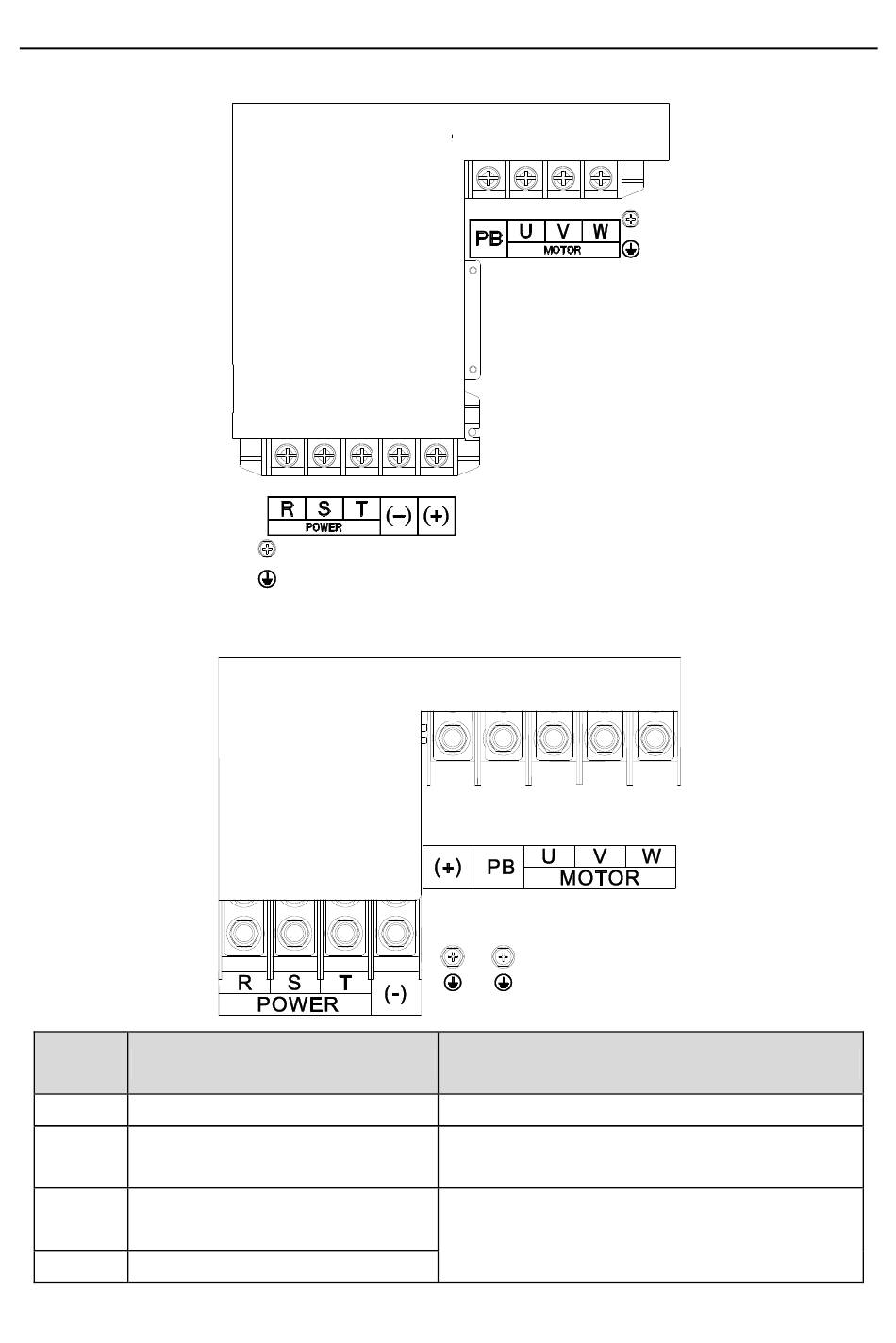

Figure 4-12 Main circuit terminals for the 045G/055P–055G/075P models
Figure 4-13 Main circuit terminals for the 075G/090P–110G models
Terminal
Terminal name Function description
symbol
R, S, T Main circuit power input 3PH AC input terminals, connected to the grid
3PH AC output terminals, connected to the motor
U, V, W VFD outputs
usually
Braking unit terminal 1/Brake
(+) and (-) connect to the external braking unit.
(+)
resistor terminal 1 PB and (+) connect to external braking resistor
(-) Braking unit terminal 2 terminal
