INVT Goodrive350 Series Operation Manual page 352

Goodrive350 IP55 High-ingress Protection Series VFD
Terminal S5
Terminal S6
Terminal S7
Terminal S8
Externally connected
temperature resistor)
A.5 Programmable extension card (EC-PC502-00)
SW1 indicates the run-stop switch of the programmable expansion card, CN1 indicates the PE,
485-, 485+, GND, AI1, AO1 terminals with corresponding jumpers next to them. "AI" and "AV"
are the current type input selection and voltage type input selection of AI1, and they can be
selected through J2. "AIO" and "AVO" are the current type output selection and voltage type
output selection of AO1, and they can be selected through J5. "120" indicates 120Ω terminal
resistor, and it can connect to J1. By default, J1 connects to NC, J2 to AV, and J5 to AVO. The
terminals are arranged as follows.
PE
COM COM
PW 24V

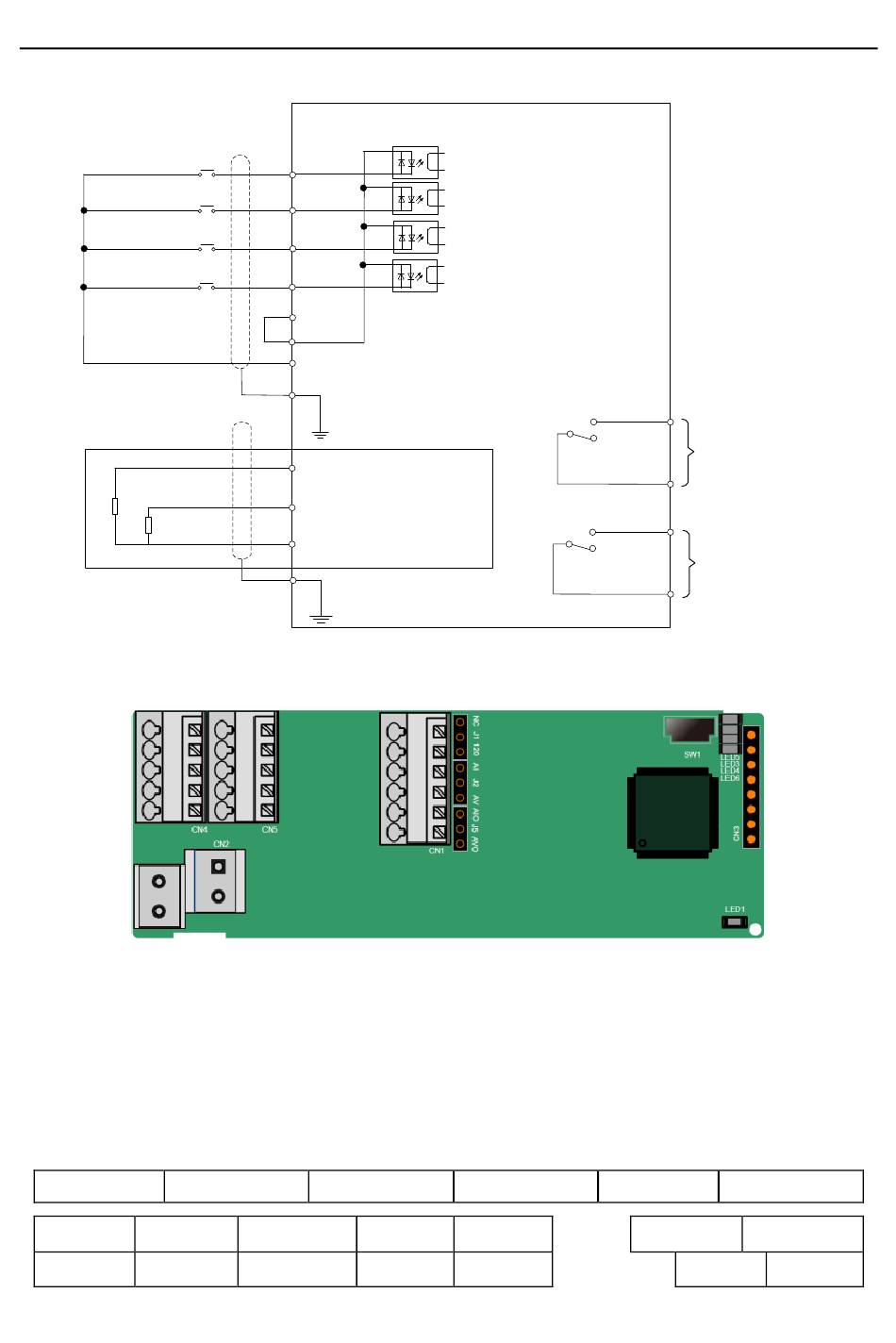

Figure A-5 Control circuit wiring of I/O expansion card 2
S5
S6
S7
S8
COM
PW
+24V
PE
PT1+
PT2+
PT-
PE
485- 485+
PS1
PS4
Expansion card
Temperature input
GND
PS2 PS3
PS5 PS6
-334-
Expansion card
RO3A
Output of relay 3
RO3C
RO4A
Output of relay 4
RO4C
AI1 AO1
PRO1A PRO1C
PRO2A PRO2C
