Goodrive350 IP55 High-ingress Protection Series VFD

4.2.6 Vertical installation

Note: During vertical installation, you must install windshield, otherwise, the VFD will

experience mutual interference, and the heat dissipation effect will be degraded.

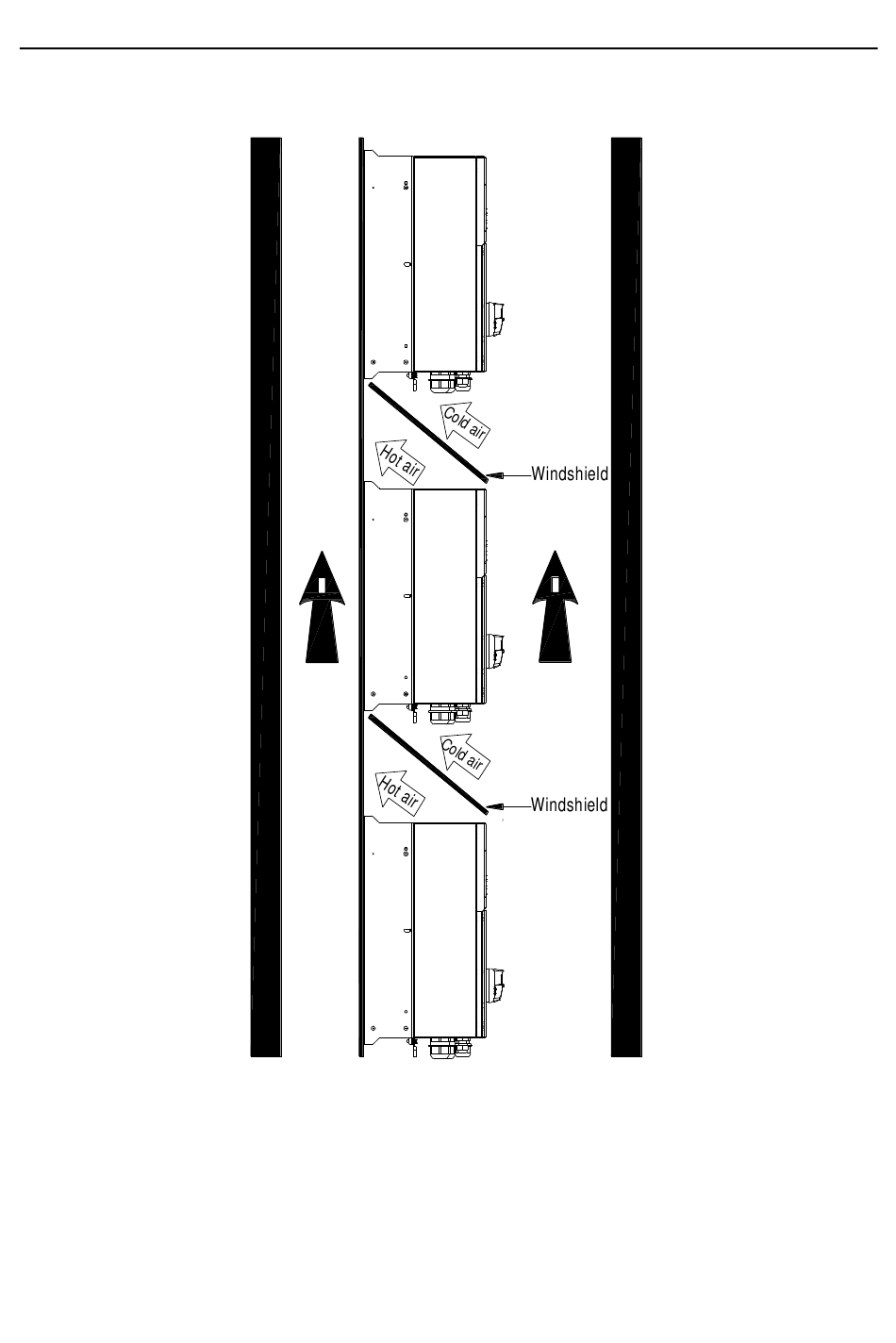

Figure 4-5 Vertical installation

Installation guidelines
