INVT Goodrive350 Series Operation Manual page 208

Goodrive350 IP55 High-ingress Protection Series VFD
Function
Name
code
Overvoltage stall
P11.04
protection voltage
Current limit
P11.05
selection
Automatic current
P11.06
limit threshold
Frequency
P11.07 decrease ratio in
current limiting
Description
120–150% (standard bus voltage) (380V)
120–150% (standard bus voltage) (220V)
During accelerated running, as the load is too
large, the actual acceleration rate of motor is
lower than that of output frequency, if no
measures are taken, the VFD may trip due to
overcurrent during acceleration.
0x00–0x11
Ones place: Current limit action
0: Invalid
1: Always valid
Tens place: Hardware current limit overload
alarm
0: Valid
1: Invalid
Current-limit protection function detects output
current during running, and compares it with the
current-limit level defined by P11.06, if it
exceeds the current-limit level, the VFD will run
at stable frequency during accelerated running,
or run in decreased
constant-speed running; if it exceeds the
current-limit level continuously, the VFD output
frequency will drop continuously until reaching
lower limit frequency. When the output current
is detected to be lower than the current-limit
level again, it will continue accelerated running.

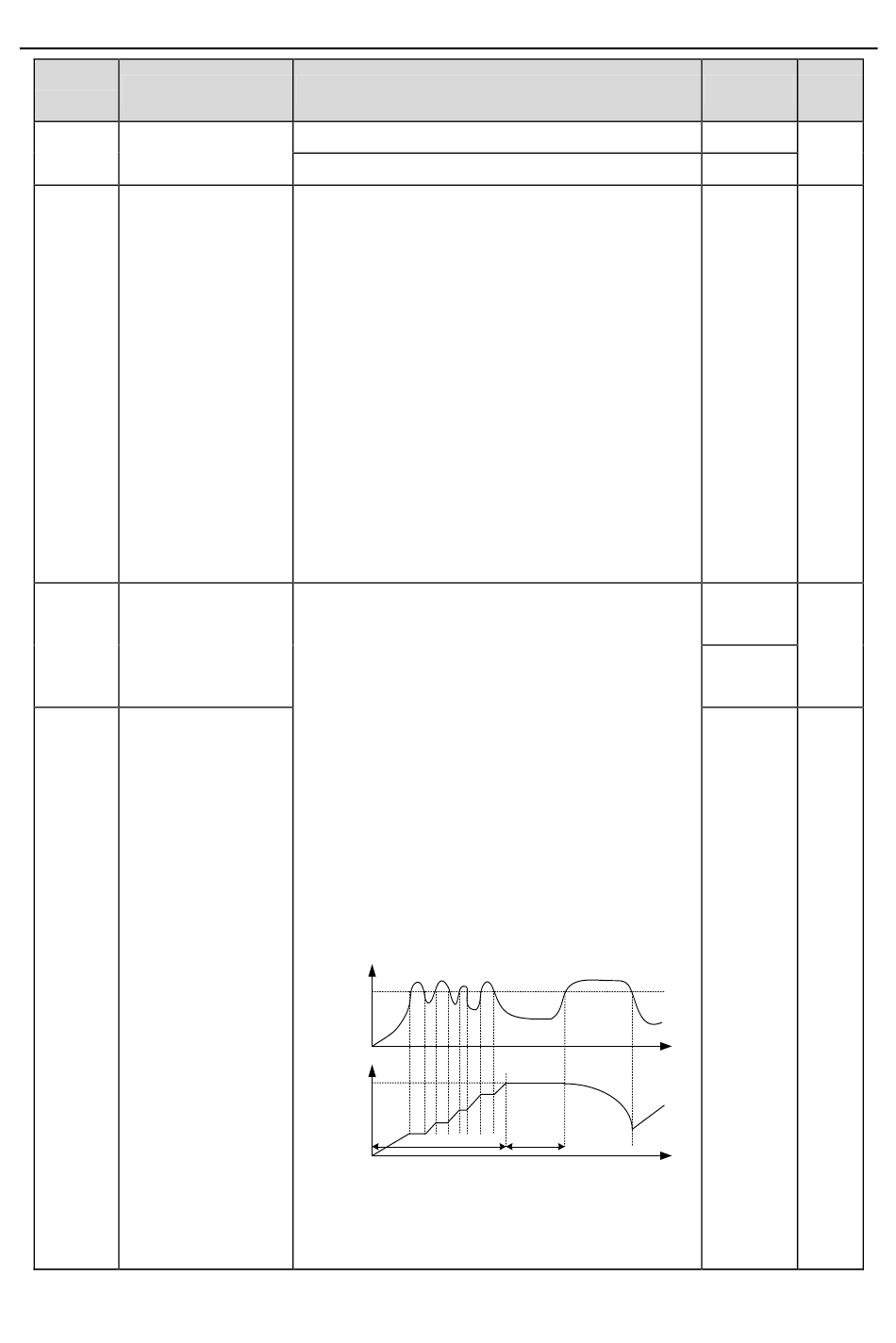

Output current A
Current-limit
threshold
Output frequency f
Set
frequency
Acceleration
Setting range of P11.06: 50.0–200.0% (of the
rated VFD output current)
Setting range of P11.07: 0.00–50.00Hz/s
-190-
Function parameter list
frequency during
Time t
Constant
speed
Time t
Default Modify
136%
○
120%
◎
0x01
G type:
160.0%
◎
P type:
120.0%
10.00
◎
Hz/s
