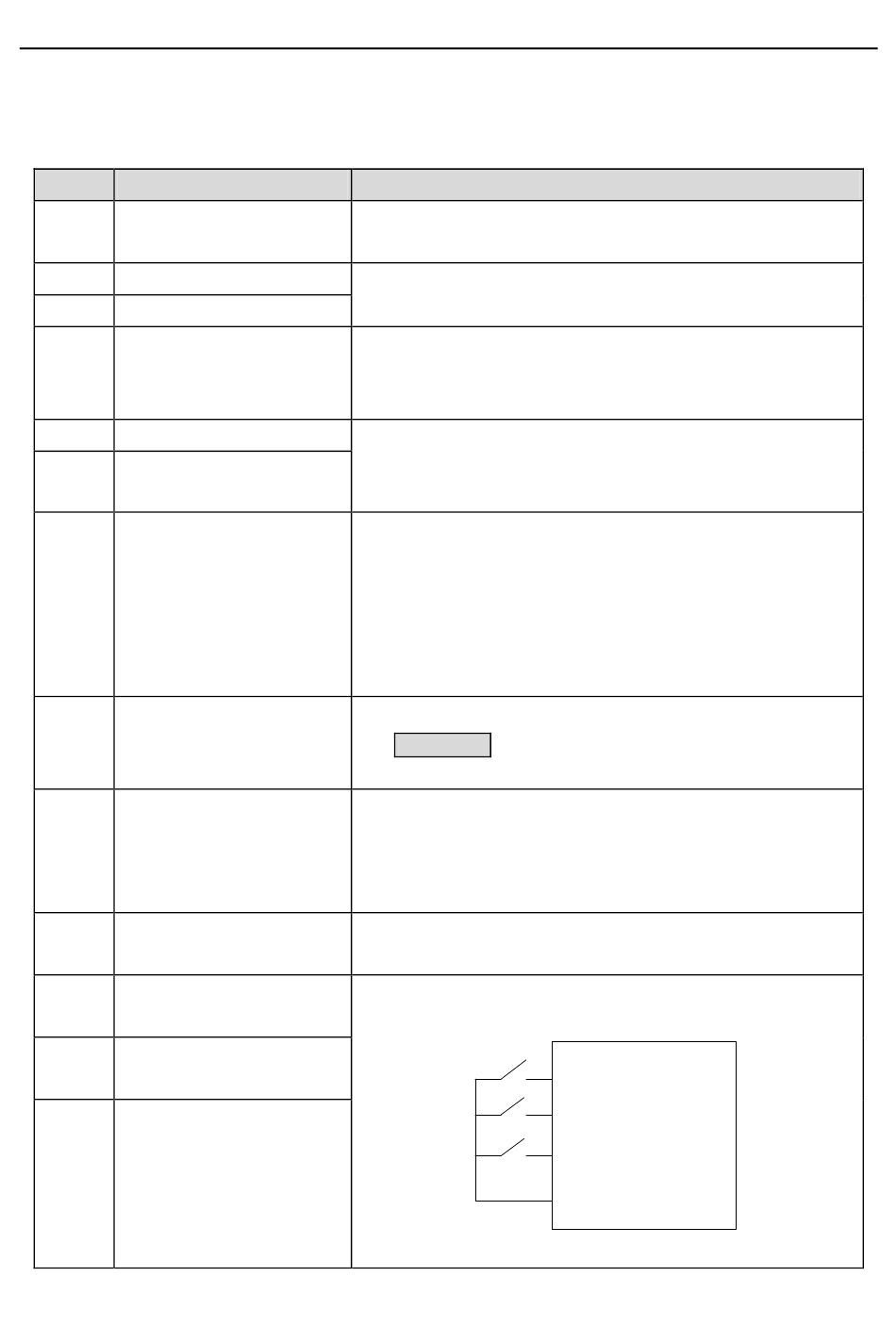

INVT Goodrive350 Series Operation Manual page 101

Goodrive350 IP55 High-ingress Protection Series VFD
This parameter is used to set the corresponding function of digital multi-function input
terminals.
Note: Two different multifunction input terminals cannot be configured with a same function.
Setting Function
0 No function
1 Run forward
2 Run reversely
3 Three-wire running control
4 Jog forward
5 Jog reverse
6 Coast to stop
7 Fault reset
8 Pause running
9 External fault input
Increase frequency setting
10
Decrease frequency
11
setting (DOWN)
Clear the frequency
12
increase/decrease setting
The VFD does not act even if there is signal input. Set
unused terminals to "no function" to avoid misaction.
External terminals are used to control the forward/reverse
running of the VFD.
The terminal is used to determine the three-wire running
control of the VFD. For details, see the description for
P05.11.
For details about frequency of jogging running and
ACC/DEC time of jogging running, see the description for
P08.06, P08.07, and P08.08.
The VFD blocks output, and the stop process of motor is
uncontrolled by the VFD. This mode is applied in the
scenarios with large-inertia loads and without stop time
requirements.
Its definition is the same as P01.08, and it is mainly used in
remote control.
External fault reset function, same as the reset function of
the STOP/RST key on the keypad. You can use this
function to reset faults remotely.
The VFD decelerates to stop, however, all the run
parameters are in memory state, such as PLC parameter,
wobbling frequency, and PID parameter. After this signal
disappears, the VFD will revert to the state before stop.
When external fault signal is transmitted to the VFD, the
VFD releases fault alarm and stops.
Used to change the frequency increase/decrease command
(UP) when the frequency is given by external terminals.
The terminal used to clear frequency-increase/decrease
Description
K1
UP terminal
K2
DOWN terminal
UP/DOWN
K3
Zeroing terminal
COM
