Goodrive350 IP55 High-ingress Protection Series VFD

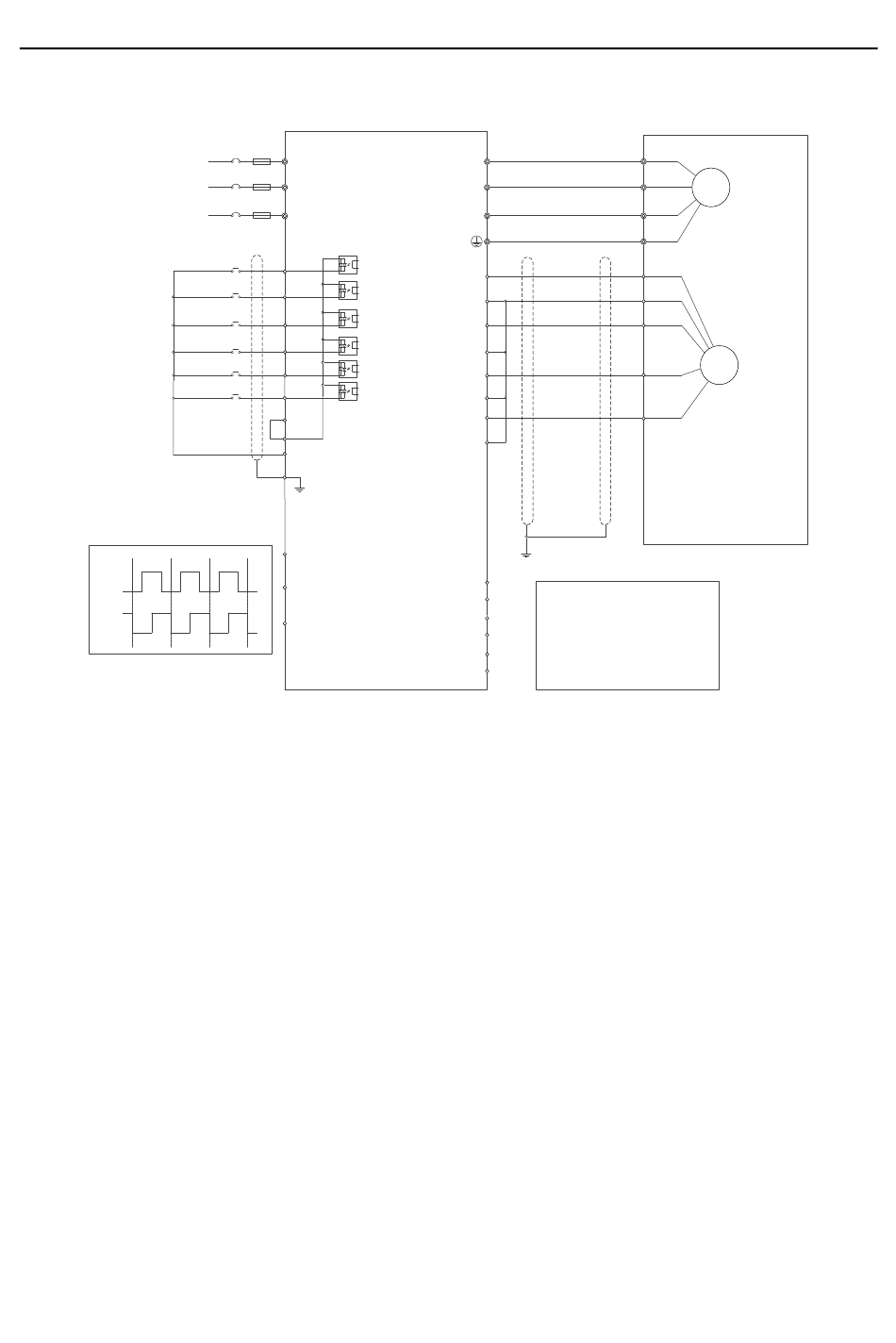

The following figure shows the external wiring when the expansion card is used in combination
with an open collector encoder. A pull-up resistor is configured inside the PG card.
FWD run
FWD jog
Fault reset
pulse A
pulse B
R
S
T
S1
PWR
S2
PGND
S3
S4
HDIA
HDIB
COM
PW
+24V
PE
AO+
BO+
ZO+
-358-
U
U
V
V
W
W
A1+
A1-
B1+
B1-
Z1+
Z1-
A2+
A2-
CNC
B2+
PLC
B2-
Upper computer
Z2+
Z2-
Expansion card
M3~
A
PG
B
Z
