Working with the Materials Page
the printer to begin cooling the corresponding tip back to the 0 set point; the button will toggle
to display the Heat button. The tip will also begin to cool automatically if the heat option
exceeds the 2 minute time allotment and the Cool button is not pressed.

Material Status Icons

The Material Status Icons within the Materials page represent the model and support material
spools installed/inserted in the printer. Either two or four icons will be displayed depending on
your printer's configuration. Each icon displays a number corresponding to the material bay
(1-4 for F270 and F370 models and 1-2 for F170 models), colored bars indicating the color of
the material currently installed in that bay, the name of the material currently installed in that
bay, and a percentage indicating the current volume of material on that material spool.
Touching one of these icons on the screen, unless otherwise indicated in
material's Material Details page. Various graphics will be displayed within the center of the

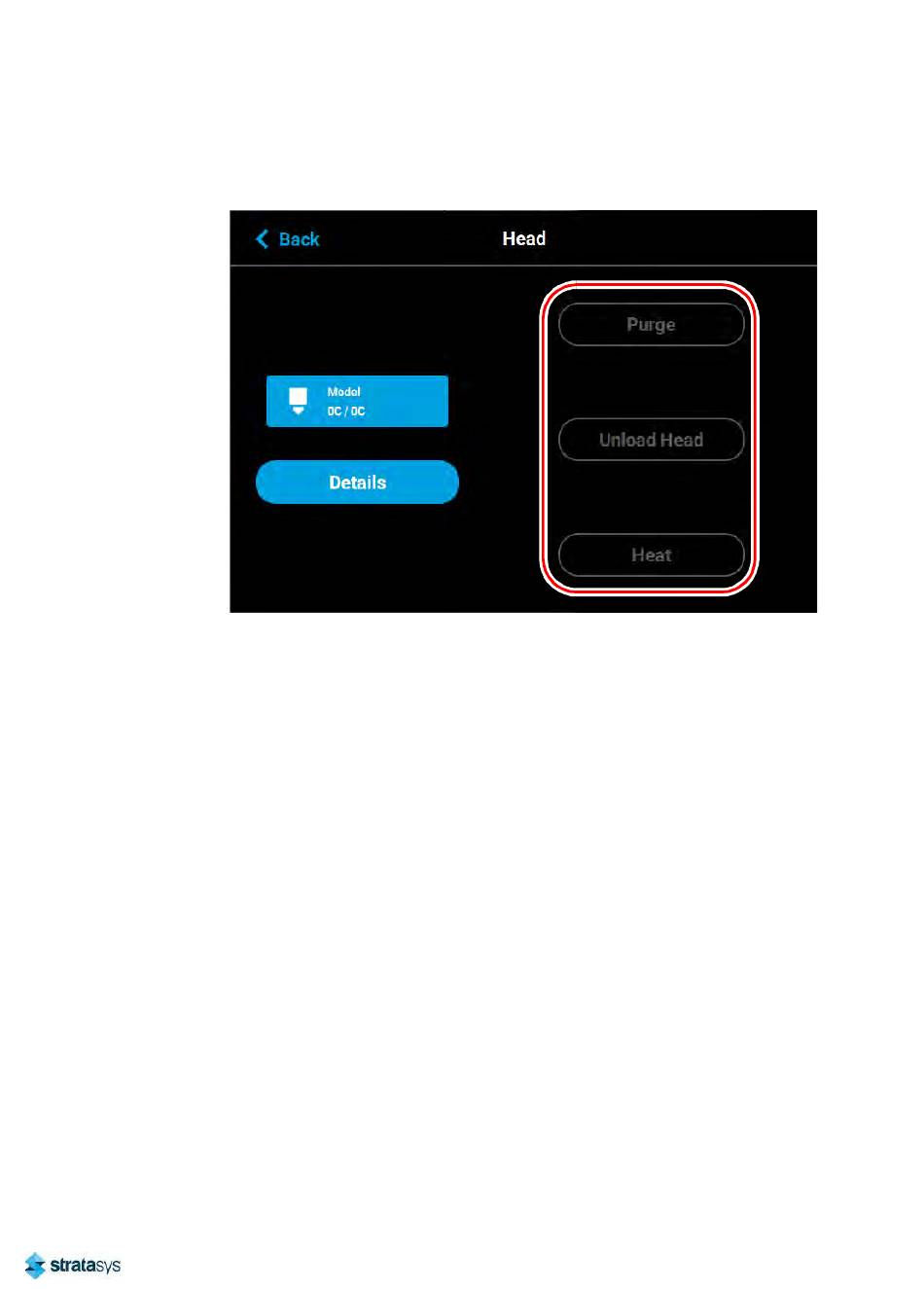

Figure 29: Head Maintenance Page - Menu View
© Copyright 2021 Stratasys. All rights reserved.
Material Status Icons
Table 7, will open that
