Summary of Contents for Stratasys F770

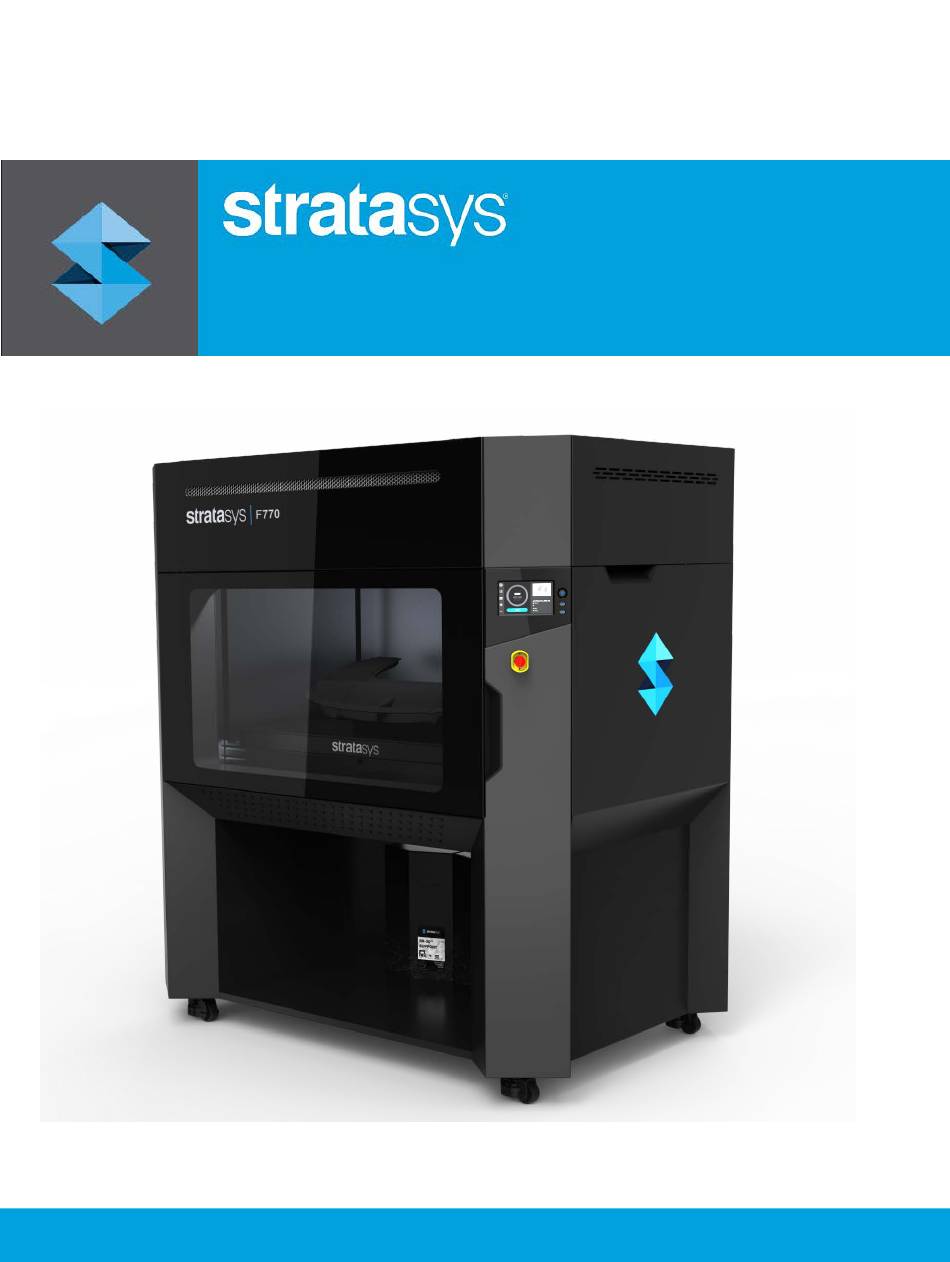

- Page 1 Site Preparation Guide F770 ® 3D Printer Part No. 477002-0001_REV_A...
- Page 2 This documentation contains proprietary information of Stratasys Ltd. This information is supplied solely to assist authorized users of this Stratasys 3D printing system. No part of this document may be used for other purposes, and it may not be disclosed to other parties. The specifications on which this document is based are subject to change without notice.
-
Page 3: Table Of Contents
Contents Revision Log ....................iv Safety......................iv Safe Environment........................ iv About the F770 Printer................... 1 Components ........................1 Highlights..........................1 How to Use This Guide......................1 Site Preparation Tasks ................... 2 Selecting the Installation Site ....................2 Physical Specifications and Space Requirements .............. 2 Environmental Requirements .................... -
Page 4: Revision Log
The following basic safety tips are given to ensure safe installation, operation, and maintenance of Stratasys equipment and are not to be considered as comprehensive on matters of safety. Although the F770 printers are designed to be safe and reliable, access to areas of the printer are potentially dangerous. -
Page 5: About The F770 Printer

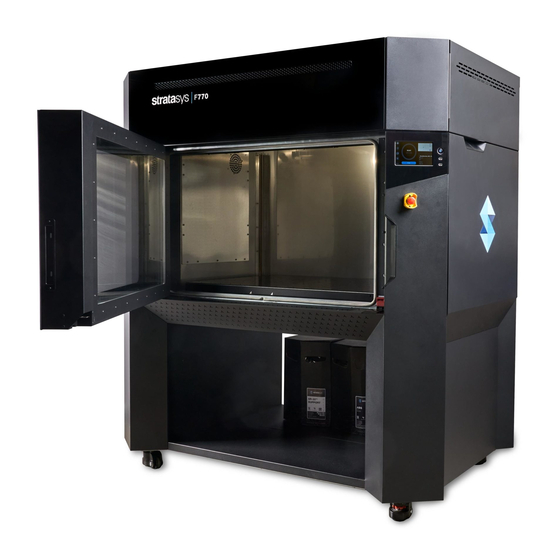

About the F770 Printer About the F770 Printer The Stratasys F770 3D printer incorporates the latest in innovative technology to provide you with precise 3-D printed parts from a CAD design. Stratasys’ Fused Deposition Modeling (FDM) technology provides prototype parts, including internal features, which can be used to field-test form, fit, and function. -
Page 6: Site Preparation Tasks
Make sure that the installation site floor space can accommodate the printer’s weight and dimensions, plus required clearances. The installation location must be a flat level surface that is stable and capable of holding 1700 pounds (770 kg). The caster pads of the F770 printer are 2.752 in (7 cm ) in footprint size. - Page 7 Site Preparation Guide Site Preparation Tasks Minimum Operational Clearances Sufficient side clearances allow for proper air circulation and maintenance access, while the recommended front and rear clearances also allows enough room to open doors to the oven and electronics bay. The top hinged covers require additional overhead clearance to fully open. Side Clearance Minimum 36 inches (91.4 cm) on each side Rear Clearance...
- Page 8 Site Preparation Guide Site Preparation Tasks Figure 2: F770 Printer Overall Dimensions Figure 3: Printer Center of Mass Page 4...
-
Page 9: Environmental Requirements
Site Preparation Guide Site Preparation Tasks Environmental Requirements • The F770 printer can be used in any controlled environment. • Air quality conditions with excessive solid particulates (conductive or non-conductive) may result in system damage. • Air quality conditions in which airborne oils are allowed to accumulate on or within the printer can damage the plastic components. -
Page 10: Ac Power Requirements
Optional AC Transformers Two optional AC transformers are available from Stratasys for facilities with AC electrical services outside of the 208 VAC specification. The transformers meet applicable electrical and safety standards and carry both the CE Mark and the Mark of a Nationally Recognized Test Laboratory (NRTL) for North America. -
Page 11: Workstation Requirements
A LAN connection is not required however, as the printer is also capable of file transfer via a Wi-Fi connection or a USB flash drive plugged into either of the printer’s USB ports. See the F770 User Guide for detailed information and instructions on transferring files to the printer. Page 7... -
Page 12: Preparing For Installation
The crated printer weighs 2000 lbs. (907 kg). Make sure that equipment and personnel are capable of moving the system. The F770 shipping crate is designed to be lifted and moved by forklift from the designated locations on the shipping base (Figure 6). -
Page 13: Unpacking The Printer
If damage is detected upon installation, this photo will assist your installation representative in determining the cause of damage (Figure If damage has been detected, do not continue unpacking until a certified Stratasys technician has been contacted. Figure 7: Shipping Crate Damage Indicators Shock Indicator Tilt Indicator 2. - Page 14 Site Preparation Guide Preparing for Installation 3. Using a drill with a Phillips drive bit, remove the screws (approximately 18 - each side) securing the panels to the left and right sides of the crate. Set aside the panels. Figure 9: Removing the right and left side crate panels Side panel wood screw Side Panels, (Qty 18- each side)
- Page 15 Site Preparation Guide Preparing for Installation 5. Remove all tape and carefully unwrap the printer by pulling the plastic bag/wrap away from the printer. 6. If necessary, use a utility knife to cut away any remaining plastic material obstructing the fork lift openings or the printer’s casters.
- Page 16 Site Preparation Guide Preparing for Installation 9. Spread the forklift forks to 16 inches to fit inside the structural lifting channels underneath the printer. Caution: Access the fork lift openings from the right side of the printer (Figure 13). 10. Using the forklift and the structural lifting channels (Figure 13), lift the printer above the shipping base.
- Page 17 Position the printer to allow at least three feet of clearance on all sides until the installation process is complete, see “Physical Specifications and Space . Refer to Chapter 2 of the F770 User Guide for final setup Requirements” (page 2) instructions.
-
Page 18: Electrical Service Connection
Site Preparation Guide Electrical Service Connection Electrical Service Connection Warning: A licensed electrician must perform all wiring from the service connection to the system - including all connectors, cables, and proper strain relief. Comply with all applicable local and national electric codes. 1. - Page 19 Site Preparation Guide Electrical Service Connection 5. Route the customer supplied power cable through the power inlet panel to the line filter inside the electronics bay. Use the releasable cable ties (5) to secure the cable as shown in Figure Make sure that all five of the cable ties are utilized.
- Page 20 Site Preparation Guide Electrical Service Connection 8. Connect the power cable wires to the line filter as described below: a. Connect the ground wire to the printer grounding lug. b. Connect the supply wires. • Line A connects to terminal L1. •...
-
Page 21: Site Preparation Checklist
Site Preparation Guide Site Preparation Checklist Site Preparation Checklist Electrical Installation Requirements • A dedicated 120/208V 3 phase 50/60hz 30A circuit has been installed. • An electrical wire with bare leads has been supplied by the customer to connect the printer to the facility power. - Page 22 _____ c-support@stratasys.com THE 3D PRINTING SOLUTIONS COMPANY...
