Working with the Materials Page

Head Status Icons

The two Head Status Icons within the Materials page display load status information as well as
the current temperature as compared to the set point temperature of each of the printer's
heads.The right-most icon pertains to the printer's support head while the left-most icon
pertains to the printer's model head. Touching one of these icons on the screen, unless
otherwise indicated in
be displayed within the left portion of the Head Status Icons, depending on the state of the
head. The Head Status Icons can appear in the following states (color usage, highlighting, and
descriptions apply to both icons):
Empty (gray dashed border)
Invalid (red dashed border)
Initializing
Unloaded (solid gray)
Loaded (solid blue)
Active (solid blue with white
border)
Table 6, will open that head's Head Details page. Various graphics will

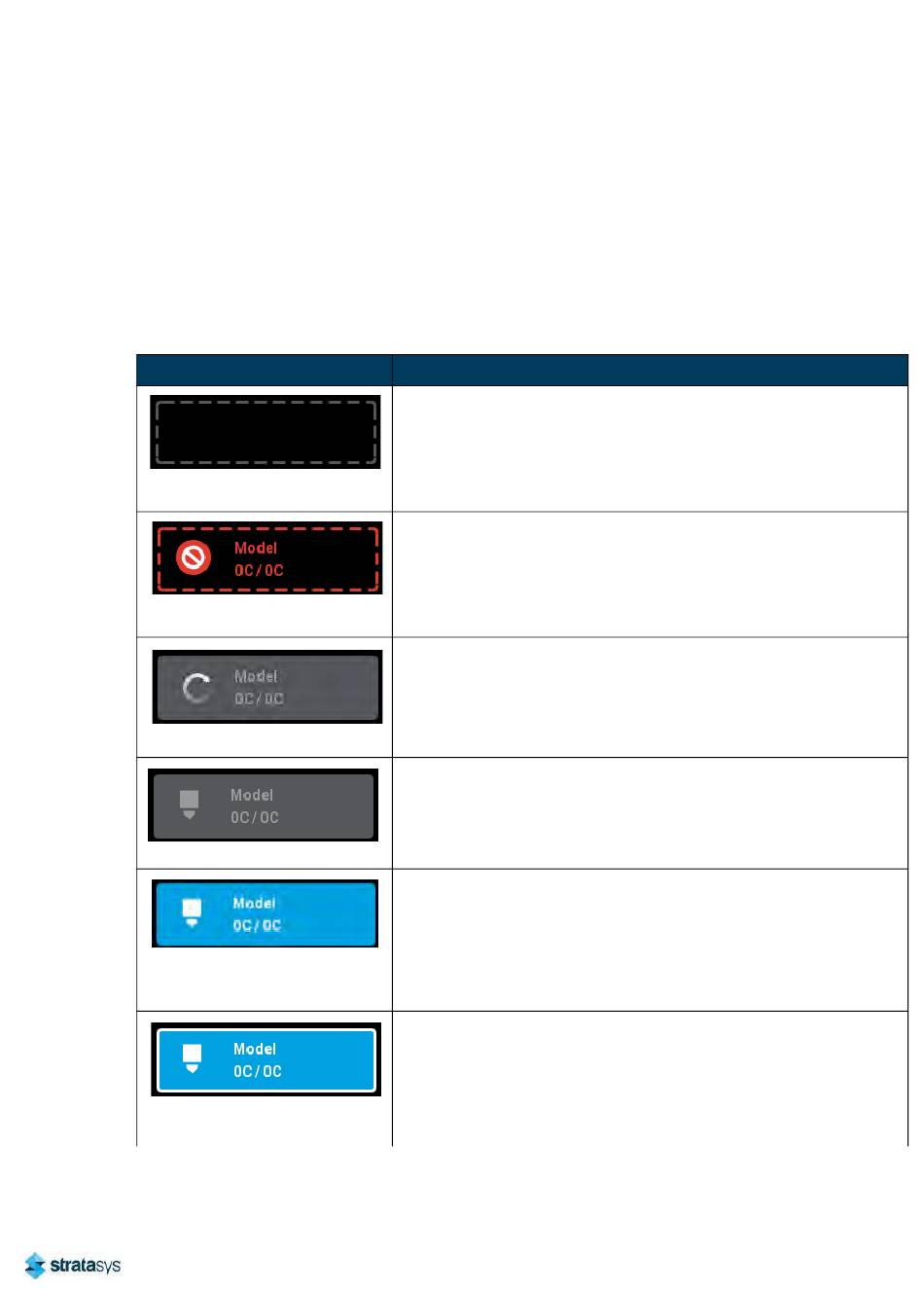

Table 6: Head Status Icons - Icon States
Icon State
•
•
•
•
•
•
•
•
•
•
•
•
•
•
© Copyright 2021 Stratasys. All rights reserved.
Indicates that the associated head is not installed.
User action required to install head. See
Replacement" (page 119)
Touching the icon in this state will not display the head's
Head Details page.
Indicates that the associated head is invalid.
User action required to replace head with a valid head. See
"Head Replacement" (page 119)
Touching the icon in this state will not display the head's
Head Details page.
Indicates that the printer is initializing the head. This state
will be displayed until the initialization process is complete
following installation of a new head.
Touching the icon in this state will not display the head's
Head Details page.
Indicates that material is not loaded to the head.
User action required to load material. See
(page 110) for instructions.
Indicates that material is loaded to the head.
If a build has been initiated, the current temperature will
increase until it reaches the set point temperature for the
loaded material. Once temperature is reached, the tip will
purge a small amount of material and the printer will begin
building.
Indicates that the head is actively performing a task other
than building.
This state will be displayed whenever the head is purging or
material is being unloaded from the head.
Head Status Icons
Description
"Head
for instructions.
for instructions.
"Loading Material"
