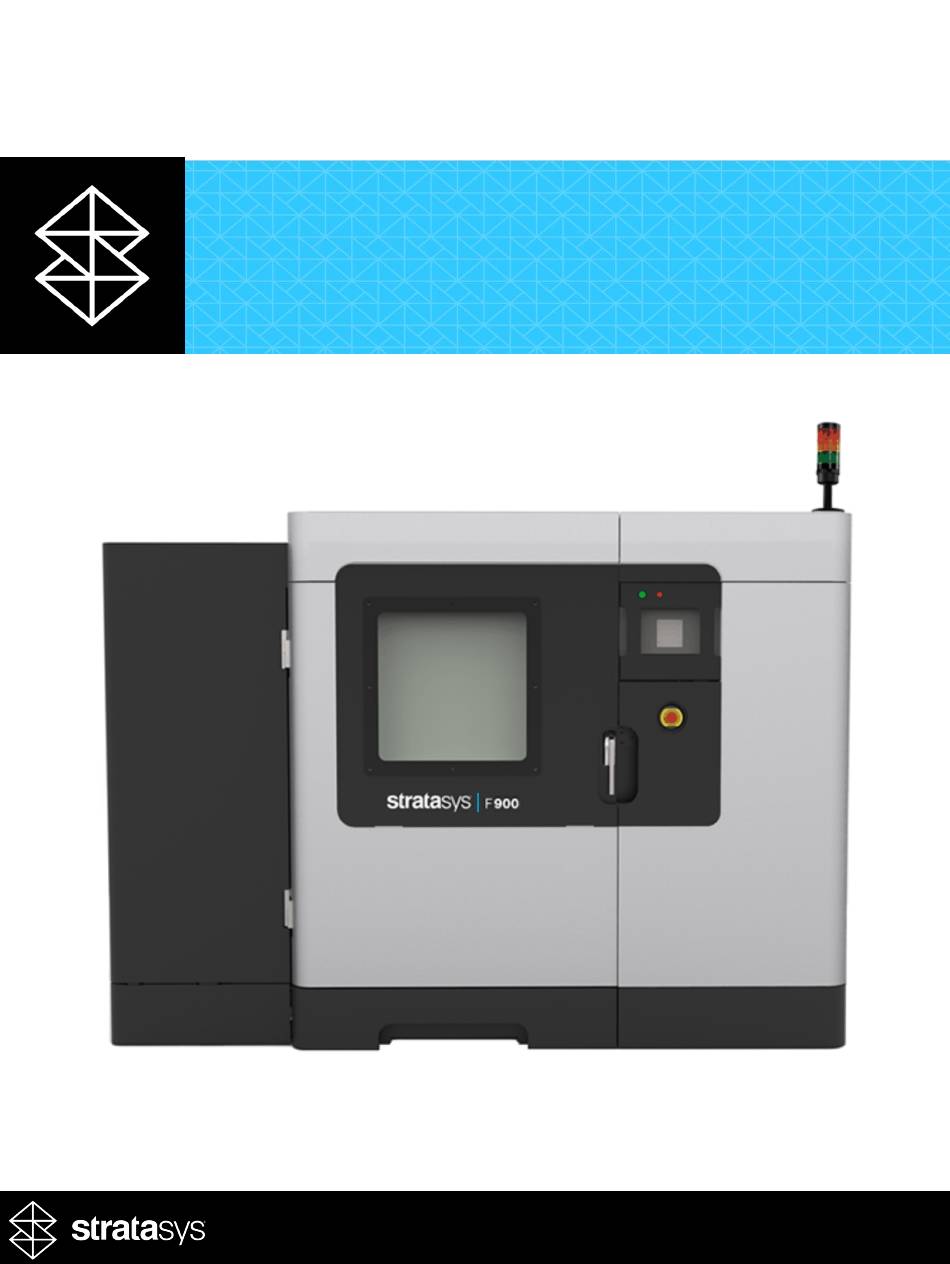

- Page 1 Site Preparation Guide F900 3D Production System Part No. 402739-0001_REV_F...
- Page 2 This documentation contains proprietary information of Stratasys Ltd. This information is supplied solely to assist authorized users of this Stratasys 3D printing system. No part of this document may be used for other purposes, and it may not be disclosed to other parties. The specifications on which this document is based are subject to change without notice.
-
Page 3: Table Of Contents
Moving the Crated System....................8 Unpacking the System ......................8 Remove the System from the Shipping Skid ..............9 Service Connections ......................13 Compressed Air Connection ..................... 15 Site Preparation Checklist ..............16 © Copyright 2015 - 2025 Stratasys. All rights reserved. Page iii... -
Page 4: Revision Log
The following basic safety tips are given to ensure safe installation, operation, and maintenance of Stratasys equipment and are not to be considered as comprehensive on matters of safety. Although the printers are designed to be safe and reliable, access to areas of the printer are potentially dangerous. -
Page 5: About The F900
Teflon Shields (107824-0001) (4 each) How to Use This Guide This guide provides information for selecting an appropriate location for the F900 printer. It also provides instructions for unpacking and preliminary set-up. Information of particular importance is presented in one of three formats: A WARNING indicates a procedure that may cause injury to an operator if the procedure is not followed. -
Page 6: Site Prep Tasks
4. Compressed Air Requirements 5. LAN Requirements The F900 printer is capable of generating vibrations depending mainly on part build geometry and material characteristics. This consideration will need to be taken into account if locating the printer near vibration sensitive equipment. -
Page 7: Minimum Clearances
The front clearance area must remain clear to provide open access to the emergency stop (which is located on the front surface of the printer). Figure 1: Space Requirements © Copyright 2016 - 2025 Stratasys. All rights reserved. Page 3... -
Page 8: Environmental Requirements
*141-1993. Facilities who are unsure of their power quality should contact their service provider. * IEEE Standards licensing rules prohibit Stratasys from distributing the Standard. End users who wish to review the Standard are responsible for its individual purchase. GrabCAD Streamline Pro Shield A second grounded electrical outlet is required near the printer for a GrabCAD Streamline Pro Shield security device. -
Page 9: Compressed Air Requirements
Site Prep Tasks Compressed Air Requirements The F900 has an on-board pressure regulator and also includes on-board particle filtration, water, and oil separation. • Supply pressure at the system: 90-120 psi with a minimum flow of 20 SCFM • Less than 95°F / 35°C •... -
Page 10: Workstation Requirements
The workstation must have access to the Internet and to the local network to which the printer is connected, and it must be prepared before printer installation. For Insight workstation requirements, visit the Stratasys website. © Copyright 2016 - 2025 Stratasys. All rights reserved. Page 6... -
Page 11: Preparing For Installation
Forklift truck of sufficient size to raise the system from the shipping skid. Forklift Truck Requirements The F900 is very heavy and requires a forklift truck with the following minimum capabilities: • Ability to lift 6325 lbs. (2875 kg) if the system is uncrated. -
Page 12: Moving The Crated System
The system weighs 7247 lbs. (3287 kg) including the crate. Make sure equipment and personnel are capable of moving the system. The F900 shipping skid is designed to be moved only from the ends of the shipping skid. Figure 3: Crated F900 System... -
Page 13: Remove The System From The Shipping Skid
Remove the System from the Shipping Skid Lifting the System (Forklift) Remove all angle fasteners attaching the F900 to the shipping skid. Use a forklift truck to lift the system from the shipping skid. The system can be lifted only from the center forklift channels. - Page 14 43 in. 74 in. Long Bolt Short Bolt (109.2 cm) (188 cm) Lifting Assembly Lifting Assembly (2X) (2X) Long Spreader Bars (2X) Crane Cables Short Spreader Bars (2X) System © Copyright 2016 - 2025 Stratasys. All rights reserved. Page 10...
-
Page 15: Moving The System
This provides stability and control while moving the system. Figure 6: Moving the System, Detail Use Straps to Attach to the Forklift Truck Forklift Channels Eye Bolts Depth of Channel (2X) 21 in. (53.3 cm) © Copyright 2016 - 2025 Stratasys. All rights reserved. Page 11... - Page 16 Figure 7: Tie Down Locations, Front View Detail Eye Bolts Shipping Tie (2X) Down Block Teflon Shields (2X) Figure 8: Tie Down Locations, Back View Detail Eye Bolts (2X) Teflon Shields (2X) © Copyright 2016 - 2025 Stratasys. All rights reserved. Page 12...
-
Page 17: Service Connections
Figure 9: Back Panel Removal Junction Box Compressed Air Note: Wiring is to be Routed from the Top View Top of the System. RJ45 Connector Left Back Access Plate Screws (10X) © Copyright 2016 - 2025 Stratasys. All rights reserved. Page 13... - Page 18 Figure 10: Line Connections Fuse Block (3X) Grounding Block (Position of bock may vary from that shown.) 230 Volts 230 Volts 230 Volts © Copyright 2016 - 2025 Stratasys. All rights reserved. Page 14...
-
Page 19: Compressed Air Connection
The following method will not allow a quick disconnection from the air supply. • Remove the installed male/female quick disconnect and attach to the 1/2 inch NPT(F) thread. Figure 11: Supplied Compressed Air Fitting Female Fitting Taped to System for Shipping. © Copyright 2016 - 2025 Stratasys. All rights reserved. Page 15... -
Page 20: Site Preparation Checklist
Site Preparation Checklist Site Preparation Checklist A checklist is provided by your Stratasys representative listing all of the tasks described in this document. Fill in the information requested in the checklist, and submit it to your Stratasys representative. Once the checklist has been received, an installation date will be scheduled. - Page 21 _____ c-support@stratasys.com Copyright © 2016 - 2025 Stratasys Ltd. All rights reserved. Part No. 402739-0001_REV_F...
