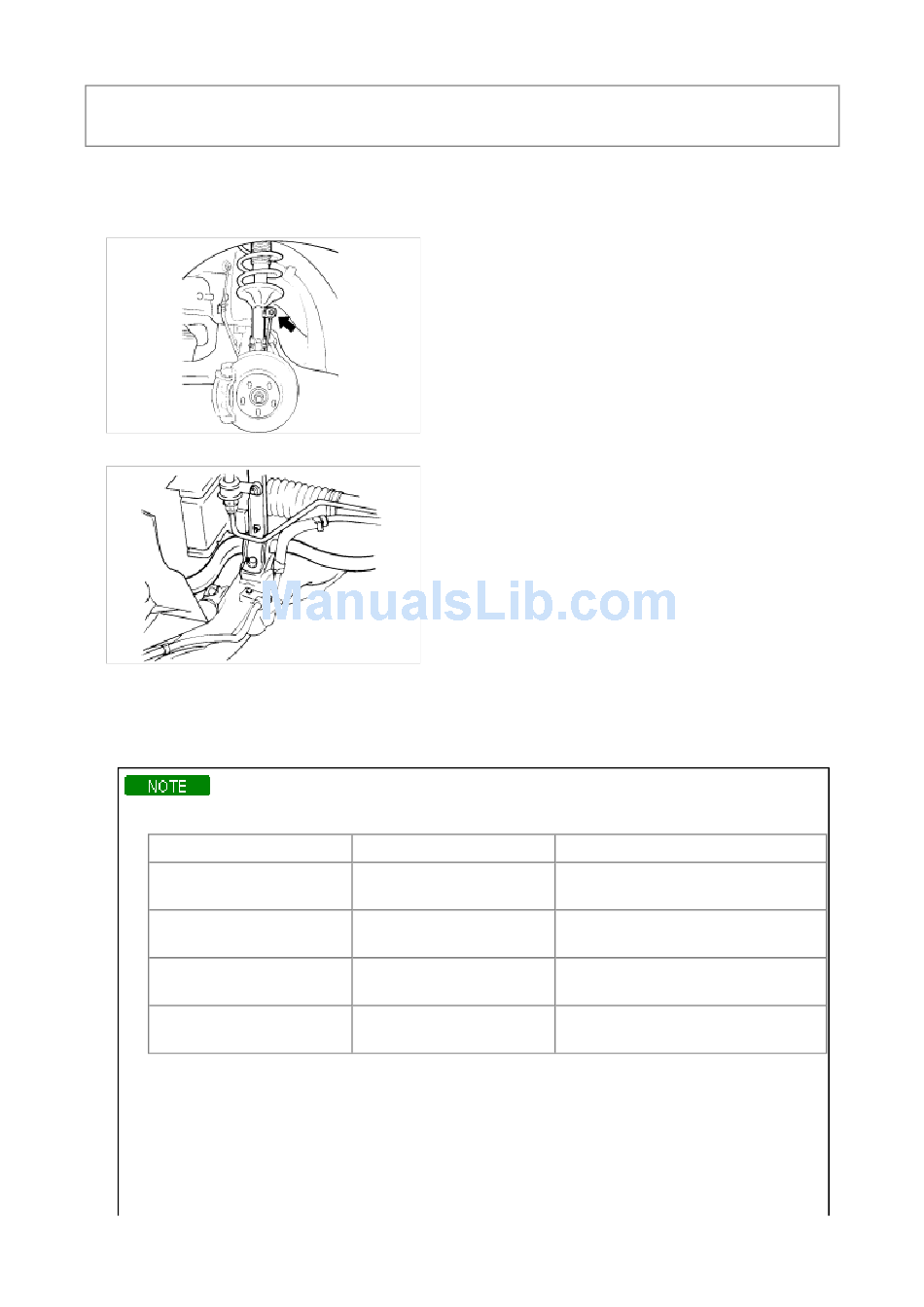

REMOVAL
1. Remove the front wheel.
2. Remove the stabilizer link assembly.
3. Remove the stabilizer bracket and bushing
4. Remove the stabilizer bar.
INSTALLATION
1. Install the bushing on the stabilizer bar.
1) When installing the stabilizer bar, follow the identification color (ID color) as below.
Model
2.0L Sports
(HARD)
2.0L Normal
(SOFT)
2.7L Sports
(HARD)
2.7 Normal
(SOFT)
ID : Identification
2) Position the bushing on the outside of the stabilizer bar clamp so as to install it.
http://www.hmaservice.com/viewer/content.asp?IsPrint=true&imgnum=1&print_title...
ID color
-
White
Yellow
Red
Page 1 of 2
Outer diameter
21.8mm (0.86 in.)
18.8mm (0.74 in.)
21.8mm (0.86 in.)
18.8mm (0.74 in.)
