Summary of Contents for Hyundai 2003 Tiburon

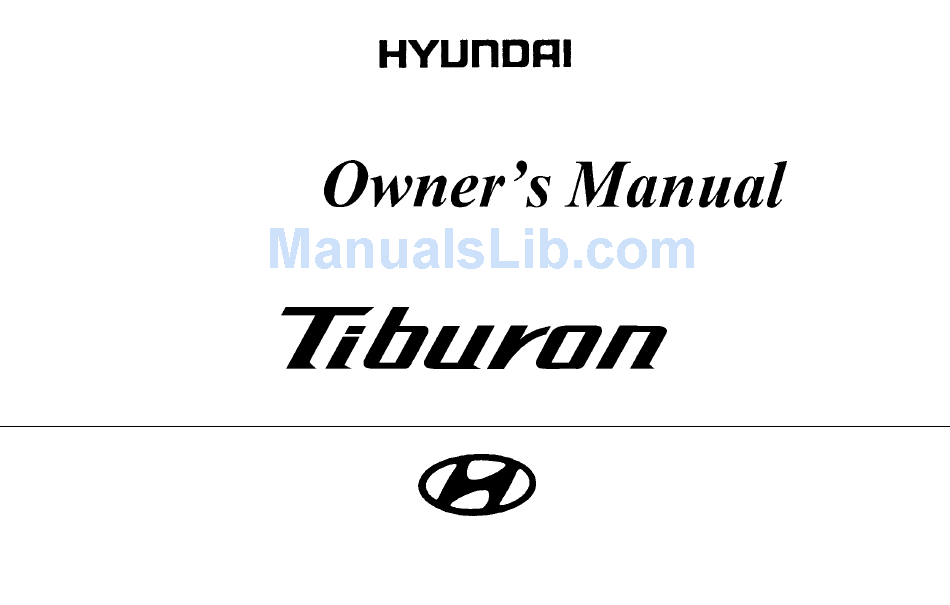

  • Page 1 2003 D R I V I N G IS B E L I E V I N G...
  • Page 2 A020A01A-AAT RESPONSIBILITY FOR MAINTENANCE The maintenance requirements for your new Hyundai are found in Section 5. As the owner, it is your responsibility to see that all maintenance operations specified by the manufacturer are carried out at the appropriate intervals. When the vehicle is used in severe driving conditions, more frequent maintenance is required for some operations.
  • Page 3 Specifications HGK037 All information in this Owner's Manual is current at the time of publication. However, Hyundai reserves the right to make changes at any time so that our policy of continual product improvement may be carried out. This manual applies to all Hyundai Tiburon models and includes descriptions and explanations of optional as well as...
  • Page 4 Your Owner's Manual will introduce you to the features and operation of your new Hyundai. It is suggested that you read it carefully since the information it contains can contribute greatly to the satisfaction you receive from your new car.
  • Page 5 CAUTION: MODIFICATIONS TO YOUR HYUNDAI Your Hyundai should not be modified in any way. Such modifications may adversely affect the performance, safety or durability of your Hyundai and may, in addition, violate conditions of the limited warranties covering the vehicle. Certain modifications may also be in violation of regulations established by the U.S.
  • Page 6 A090A01A-AAT SAFETY AND VEHICLE DAMAGE WARNING This manual includes information titled as WARNING, CAUTION and NOTE. These titles indicate the following: WARNING: This indicates that a condition may result in harm, serious injury or death to you or other persons if the warning is not heeded. Follow the advice provided with the warning.
  • Page 7 A100A03A-AAT GUIDE TO HYUNDAI GENUINE PARTS 1. What are Hyundai Genuine Parts? Hyundai Genuine Parts are the same parts used by Hyundai Motor Compa- ny to manufacture vehicles. They are designed and tested for the optimum safety, performance, and reliability to our customers.

  • Page 8: Table Of Contents

    TABLE OF CONTENTS SECTION FEATURES OF YOUR HYUNDAI ... 1-1 DRIVING YOUR HYUNDAI ... 2-1 WHAT TO DO IN AN EMERGENCY ... 3-1 CORROSION PREVENTION & APPEARANCE CARE ... 4-1 VEHICLE MAINTENANCE REQUIREMENTS ... 5-1 DO-IT-YOURSELF MAINTENANCE ... 6-1 EMISSION CONTROL SYSTEMS ... 7-1 CONSUMER INFORMATION &...

  • Page 9: Features Of Your Hyundai

    B010D01A-AAT Do Not Use Methanol Fuels containing methanol (wood alcohol) should not be used in your Hyundai. This type of fuel can reduce vehicle performance and damage components of the fuel system. CAUTION:...
  • Page 10 T0420 FUA1030B A code number is stamped on the key number plate that came with the keys to your Hyundai. This key number plate should be kept in a safe place, not in the vehicle. The key number should also be recorded in a place where it can be found in an emergency.
  • Page 11 Lock the door by turning the key toward the front of the vehicle and unlock it by turning the key toward the rear. FEATURES OF YOUR HYUNDAI B040C01S-AAT Locking From the Outside HGK099 The doors can be locked without a key.
  • Page 12 The central door locking is operated by turning the key (driver's door only) to- ward the front or rear of the vehicle. 1- 4 FEATURES OF YOUR HYUNDAI B070A01A-AAT THEFT-ALARM SYSTEM (If Installed) This system is designed to provide protection from unauthorized entry into the car.
  • Page 13 NOTE: Once the system has been disarmed, it can not be rearmed except by repeating the arming procedures. FEATURES OF YOUR HYUNDAI B070E02GK-GAT Replacing the battery When the transmitter's battery begins to get weak, it may take several pushes on the button to lock or unlock the doors, and the LED will not light.
  • Page 14 To disable the passenger's power window, push the window lock switch. To revert to normal operation, push in on the window lock switch again. 1- 6 FEATURES OF YOUR HYUNDAI HGK097 CAUTION: Never try to operate the main switch and sub-switch in opposing directions at the same time.
  • Page 15 FEATURES OF YOUR HYUNDAI B080C01A-AAT Adjusting Seatback Angle HGK051 To recline the seatback, lean forward to take your weight off it, then pull up on the recliner control lever at the outside edge of the seat.
  • Page 16 To increase the amount of lumbar support, pull the lever forward. To decrease it, push the lever toward the rear. 1- 8 FEATURES OF YOUR HYUNDAI B080F01F-AAT Seat Cushion Height Adjustment (Driver's Seat Only) (If Installed) HGK050 To raise or lower the front part of the seat cushion, turn the knob forward or rearward.
  • Page 17 Then pull the lock re- lease lever (2) up to move the seat forward. HGK240 FEATURES OF YOUR HYUNDAI By pulling up the walk in device lever (1) at the right-upper side of the passenger side seatback, the seatback will tilt forward.
  • Page 18 In addition, the following recom- mendations are made: 1- 10 FEATURES OF YOUR HYUNDAI B150B01F-AAT Infant or Small Child All 50 states have child restraint laws. You should be aware of the specific requirements in your state.
  • Page 19 This should be done even if no damage is visible. Additional questions concerning seat belt operation should be direct- ed to your Hyundai Dealer. B170A04A-AAT HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT (If installed)
  • Page 20 Although a combination retractor is also installed in the front passenger seat position, Hyundai strongly recommends that children al- ways be seated in the rear seat. NEVER place any infant restraint system in the front seat of the vehicle.
  • Page 21 Never wear the seat belt under the arm FEATURES OF YOUR HYUNDAI nearest the door. Wearing the belt under the arm nearest the door could cause serious or fatal injuries in an accident.
  • Page 22 Follow all the instructions provided by the manufacturer when installing the child restraint system. 1- 14 FEATURES OF YOUR HYUNDAI WARNING: o A child restraint system must be placed in the rear seat. Never install a child or infant seat on the front passenger's seat.
  • Page 23 Your vehicle is provided with two child restraint hook holders for installing the child seat or infant seat. FEATURES OF YOUR HYUNDAI B230C02F-AAT Installing a child Restraint Seat Blanking covers Covering shelf...
  • Page 24 If the seat belt does not operate as de- scribed, have the system checked imme- diately by your authorized Hyundai deal- WARNING: o If the retractor is not in the Automatic Locking mode, the child restraint system can move when your vehicle turns or stops abruptly.
  • Page 25 FEATURES OF YOUR HYUNDAI B180B01GK-GAT Pre-tensioner Seat Belt (If Installed) Your Hyundai vehicle is equipped with driver's and front passenger's pre-tensioner seat belts. The purpose of the pre-tensioner is to make sure that the seat belts fit tightly against the occupant's body in certain frontal collisions.
  • Page 26 Do not attempt to inspect or replace the pre-tensioner seat belts yourself. This must be done by an authorized Hyundai dealer. o Do not strike the pre-tensioner seat belt assemblies.
  • Page 27 If the airbags deploy, they must be re- placed by an authorized Hyundai dealer. o Do not tamper with or disconnect SRS wiring, or other components of the SRS system. Doing so could result in injury, due to accidental firing of the airbags or by rendering the SRS inoperative.
  • Page 28 "ON" to determine if a frontal or near-frontal impact is severe enough to require airbag deployment. 1- 20 FEATURES OF YOUR HYUNDAI B240B02L The SRS service reminder indicator (SRI) on the instrument panel will blink for about 6 sec- onds after the ignition key is turned to the "ON"...
  • Page 29 B990B03Y-AAT Side Impact Airbag (If installed) B990B02Y Your Hyundai is equipped with a side impact airbag in each front seat. The purpose of the airbag is to provide the vehicle's driver and/or the front passenger with additional protection than that offered by the seat belt alone. The...
  • Page 30 The SRS is virtually maintenance free and there are no parts you can safely service by yourself. The entire SRS system must be inspected by an authorized Hyundai dealer in 10 years after the date that the vehicle was manufactured.
  • Page 31 If your car was flooded and has soaked carpeting or water on the floor, you shouldn't try to start the engine; have the car towed to an authorized Hyundai deal- FEATURES OF YOUR HYUNDAI 1- 23...
  • Page 32 (Instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from the air freshener does leak onto these areas, wash them with water immediately. 1- 24 FEATURES OF YOUR HYUNDAI 4 5 6 7 12 1314 1516 17 18 19 20 21 1.
  • Page 33 3. Odometer 4. Automatic Transaxle Position Indicator Light (If installed) 5. Coolant Temperature Gauge 6. Trip Odometer 7. Fuel Gauge FEATURES OF YOUR HYUNDAI 2 34 9 10 11 12 13 151617 18 19 8. Tachometer 9. Traction Control Indicator Light (If installed) 10.Door Ajar Warning Light...
  • Page 34 ABS. If this occurs, have your vehicle checked by your Hyundai dealer as soon as possible. The normal braking system will still be operational, but without the assistance of the anti-lock brake system.
  • Page 35 Level Warning Light WARNING: If you suspect brake trouble, have your brakes checked by a Hyundai dealer as soon as possible. Driving your car with a problem in either the brake electrical system or brake hydraulic system is dangerous, and could result in a serious injury or death.
  • Page 36 The sound may come and go or be heard all the time when the vehicle is moving. It may also be heard when the brake pedal is pushed down firmly. Excessive rotor damage will result if the worn pads are not replaced. See your Hyundai dealer immediately. B280A01A-AAT FUEL GAUGE...
  • Page 37 Then open the hood and check the coolant reservoir level and the water pump drive belt. If you suspect cooling system trou- ble, have your cooling system checked by a Hyundai dealer as soon as possible. B300A01A-AAT SPEEDOMETER HGK130B...
  • Page 38 To shift from TRIP A to TRIP B, press the reset switch. When pressed for 1 second, it will reset to 0. 1- 30 FEATURES OF YOUR HYUNDAI B340A01A-AAT COMBINATION TURN SIGNAL, HEADLIGHT AND HIGH-BEAM SWITCH...
  • Page 39 If you set the multi-function switch to "AUTO", the tail lights and headlights will be turned automatically on or off according to external illumination. FEATURES OF YOUR HYUNDAI B340E01A-AAT Headlight Flasher HGK233 To flash the headlights, pull the switch lever toward you, then release it.
  • Page 40 Adjustable Intermittent Wiper Opera- tion HGK043 1- 32 FEATURES OF YOUR HYUNDAI To use the intermittent wiper feature, place the wiper switch in the "INT" position. With the switch in this position, the interval between wipes can be varied from 2 to 10 seconds by turning the interval adjuster barrel.
  • Page 41 To turn the hazard warning lights off, push in on the switch a second time. FEATURES OF YOUR HYUNDAI B380A01A-AAT REAR WINDOW DEFROSTER SWITCH A Type B Type...
  • Page 42 Do not hold the cigarette lighter pressed in. This can damage the heating element and create a fire hazard. If it is necessary to replace the cigarette lighter, use only a genuine Hyundai replacement or its approved equivalent. CAUTION: Do not use electric accessories or equipment other than the Hyundai genuine parts in the socket.
  • Page 43 B460A01Y-AAT SUNROOF (If installed) Sun Shade HGK029 Your HYUNDAI is equipped with a sliding sun- shade which you can manually adjust to let in light with the sunroof closed, or to block sun- light. WARNING: Never adjust the sunshade while driving.
  • Page 44 This wrench can be found in the vehicle’s trunk or glove box. 1- 36 FEATURES OF YOUR HYUNDAI 3. Turn the wrench clockwise to open or coun- terclockwise to close the sunroof. B460E01TB-GAT Resetting the Sunroof System...
  • Page 45 To open the glove box, pull on the glove box release lever. FEATURES OF YOUR HYUNDAI B510B01A-AAT OUTSIDE REAR VIEW MIRROR Electric Type (If installed) HGK128...
  • Page 46 B520A01A-AAT DAY/NIGHT INSIDE REAR VIEW MIR- B520A01GK Your Hyundai is equipped with a day/night inside rear view mirror. The "night" position is selected by flipping the tab at the bottom of the mirror toward you. In the "night" position, the glare of headlights of cars behind you is re- duced.
  • Page 47 To release the parking brake, pull up the lever and press the thumb button. Then, while holding the button in, lower the brake lever. FEATURES OF YOUR HYUNDAI B360A01F-AAT FRONT FOG LIGHT SWITCH (If Installed) HGK142A To turn on the front fog lights, push the switch.
  • Page 48 A red light comes on when the front door is opened. The purpose of this light is to assist when you get in or out and also to warn passing vehicles. 1- 40 FEATURES OF YOUR HYUNDAI B570A01GK-GAT HOOD RELEASE Hood Release Lever HGK106 1.
  • Page 49 If you need to replace the filler cap, use a genuine Hyundai replace- ment part. FEATURES OF YOUR HYUNDAI o If you open the fuel filler cap during high ambient temperatures, a slight "pressure...
  • Page 50 SUN VISOR Vanity mirror HGK145 Your Hyundai is equipped with sun visors to give the driver and front passenger either fron- tal or sideward shade. The sun visors are fitted on both sides on all models. To reduce glare or to shut out direct rays of the sun, turn the sun visor down to block the annoyance.
  • Page 51 WARNING: Do not attempt to adjust the steering wheel while driving as this may result in loss of control of the vehicle and serious injury or death. FEATURES OF YOUR HYUNDAI B610A01S-AAT HORN Working Zone HGK141 Press the pad on the steering wheel to sound the horn.
  • Page 52 This system is designed to function above approximately 25 mph (40 km/h). 1- 44 FEATURES OF YOUR HYUNDAI B660B01E-AAT To Set the Cruise Speed B660B01GK 1. Push in the cruise control main switch on the end of the barrel.
  • Page 53 SUME (ACCEL)" position and hold it. 2. Accelerate to desired speed and release the control switch. While the control switch is held, the vehicle will gradually gain speed. FEATURES OF YOUR HYUNDAI B660F01E-AAT To Reset at a Slower Speed B660B01GK 1.
  • Page 54 1. Side defrost nozzle 2. Side Ventilator 3. Center Ventilator 4. Windshield Defrost Ventilator 1- 46 FEATURES OF YOUR HYUNDAI B710A01S-AAT VENTILATION To operate the ventilation system: o Set the air intake control to "Fresh" mode o To direct all intake air to the dashboard vents, set the airflow control to “Face”.
  • Page 55 3. Rear window defroster switch 4. Air flow control switch 5. Fan speed control switch 6. Temperature control switch FEATURES OF YOUR HYUNDAI B670B01A-AAT Fan Speed Control (Blower Control) HGK006 This is used to turn the blower fan on or off and to select the fan speed.
  • Page 56 1- 48 FEATURES OF YOUR HYUNDAI With the "Recirculation" mode selected, air from within the passenger compartment will be drawn through the heating system and heated or cooled according to the function selected.
  • Page 57 Air is discharged through the face vents and the floor vents. This makes it possible to have cooler air from the dashboard vents and warmer air from the floor outlets at the same time. FEATURES OF YOUR HYUNDAI HGK023 Floor-Level Air is discharged through the floor vents, wind- shield defroster nozzle, side defroster nozzle, side ventilator.
  • Page 58 HGK018 The air conditioning is turned on or off by pushing the A/C button on the heating/air con- ditioning control panel. 1- 50 FEATURES OF YOUR HYUNDAI B740B01S-AAT Air Conditioning Operation Cooling HGK002 To use the air conditioning to cool the interior: o Set the side vent control to "OFF", to shut off...
  • Page 59 When the A/C is operated continuously on the floor-defrost level ( ) or defrost level ( ), it may cause fog to form on the exterior windshield. If this occurs, set the air flow control to the face level position ( ) and fan speed control to the low position. FEATURES OF YOUR HYUNDAI A Type B720A01GK To remove frost or exterior fog on the windshield: o Set the air flow control to the defrost ( ) position.
  • Page 60 To prevent interior fog on the windshield, set the air intake control to the fresh air ( position and fan speed to the desired posi- tion. 1- 52 FEATURES OF YOUR HYUNDAI...
  • Page 61 B970A01Y-AAT AUTOMATIC HEATING AND COOLING CONTROL SYSTEM (If lnstalled) Your Hyundai is equipped with an automatic heating and cooling control system controlled by simply setting the desired temperature. B970B01GK-GAT Heating and Cooling Controls TYPE A (Without Air Quality System) 1. Temperature Control Button 2.
  • Page 62 Bi-Level modes as well as the blower speed and, air conditioner will be controlled automatically. 1- 54 FEATURES OF YOUR HYUNDAI HGK014 2. Push the "TEMP" button to set the desired temperature. The temperature will increase to the maxi- mum 90°F(32°C) by pushing...
  • Page 63 The function of the buttons which are not se- lected will be controlled automatically. Press the "AUTO" button in order to convert to automatic control of the system. FEATURES OF YOUR HYUNDAI B980B01Y-AAT Fan Speed Control Switch HGK015 The fan speed can be set to the desired speed by pressing the appropriate fan speed control button.
  • Page 64 ON position if the "AUTO" mode was used before shutting off the engine. 1- 56 FEATURES OF YOUR HYUNDAI B980C01GK-GAT Air Intake Control Switch (With A.Q.S) (If Installed) This is used to select fresh outside air or "...
  • Page 65 Four symbols are used to represent Face, Bi-Level, Floor and Floor-Defrost air position. FEATURES OF YOUR HYUNDAI HGK021 Face-Level When selecting the "Face" mode, the indicator light will come on, causing air to be discharged through the face level vents.
  • Page 66 38.3 °F (3.5 °C) and automatically turns off if the ambient temperature drops below 38.3 °F (3.5 °C). 1- 58 FEATURES OF YOUR HYUNDAI B760A02GK-AAT AIR FILTER (IN FRONT OF BLOWER UNIT) (If Installed) Outside air...
  • Page 67 FEATURES OF YOUR HYUNDAI AM reception Ionosphere SSAR011A AM broadcasts can be received at greater dis- tances than FM broadcasts.
  • Page 68 Reducing the treble level may lessen this effect until the disturbance clears. 1- 60 FEATURES OF YOUR HYUNDAI SSAR014A o Station Swapping - As a FM signal weak- ens, another more powerful signal near the same frequency may begin to play.
  • Page 69 FEATURES OF YOUR HYUNDAI H240A01O-GAT STEREO RADIO OPERATION (H250) (If Installed) 5. BAND Selector 3. TREBLE/FADER Control Knob (TREB/FAD) 6. PRESET Buttons 2. BASS/BALANCE Control Knob (BASS/BAL) 7. SCAN Button 4. TUNE/SEEK Select Button 1. POWER ON/OFF, VOLUME Control Knob...
  • Page 70 Press to pop the knob out and turn to the left or right for the desired treble tone. 1- 62 FEATURES OF YOUR HYUNDAI FAD (Fader Control) Knob Pull the treble control knob further out. Turn the control knob counterclockwise to em- phasize front speaker sound.
  • Page 71 FEATURES OF YOUR HYUNDAI 7. SCAN Button When the scan button is pressed, the fre- quency will increase and the receivable sta- tions will be tuned in one after another, receiv- ing each station for 5 seconds. To stop scan- ning, press the scan button again.
  • Page 72 FEATURES OF YOUR HYUNDAI H240C01O-GAT CASSETTE TAPE PLAYER OPERATION (H250) (If Installed) 3. TAPE PROGRAM Button 6. TAPE SLOT 2. AUTO MUSIC SELECT Button 4. EJECT Button 1. FF/REW Button 5. DOLBY SELECT Button H250A01GK 1- 64...
  • Page 73 This allows you to play the reverse side of the tape by merely depressing the program button. An arrow will appear in the display to show tape direction. FEATURES OF YOUR HYUNDAI NOTE: When tape operation is abnormal or ER8 fault code is displayed, press the eject button more than 5 seconds to reset the deck func- tion.
  • Page 74 FEATURES OF YOUR HYUNDAI B250A01GK-GAT CD AUTO CHANGER (H250) (If Installed) 1. CD CHANGER Select Button 3. TRACK UP/DOWN 6. SCAN Button 4. FF/REW Button 5. REPEAT Button 2. DISC Select Button H250A01GK 1- 66...
  • Page 75 "CDC" button and the CD changer can be used even if the radio is being used. The Hyundai CD changer can hold up to eight discs. The disc number will be lit, and the track num- ber, and elapsed time will be displayed.
  • Page 76 FEATURES OF YOUR HYUNDAI H260A01O-AAT STEREO RADIO OPERATION (H260) (If Installed) 3. BASS/TREBLE Control Knob 4. SCAN Button 6. BAND Selector 7. PRESET Button 5. TUNE/SEEK Select Button 1. POWER ON-OFF/VOLUME/BALANCE Control Knob 2. FADER Control Knob H260A01O 1- 68...
  • Page 77 (Front speaker sound will be attenuated) FEATURES OF YOUR HYUNDAI 3. BASS Control Knob Press to pop the knob out and turn to the left or right for the desired bass tone.
  • Page 78 A total of 18 stations can be programmed by selecting one AM and two FM stations per button. o When completed, any preset station may be recalled by selecting AM, FM or FM2 band and the appropriate station button. 1- 70 FEATURES OF YOUR HYUNDAI...
  • Page 79 FEATURES OF YOUR HYUNDAI H260B01O-AAT COMPACT DISC PLAYER OPERATION (H260) (If Installed) 4. SCAN Button 1.Playing CD 3. TRACK UP/DOWN 6. EJECT Button 2. FF/REW Button 5. REPEAT Button H260A01O 1- 71...
  • Page 80 10 seconds of each track. o Press the SCAN button again within 10 sec. for the desired track. 1- 72 FEATURES OF YOUR HYUNDAI 5. REPEAT Button o To repeat the music you are listening to, press the RPT button. To cancel , press again.
  • Page 81 FEATURES OF YOUR HYUNDAI B260E01E-AAT CD AUTO CHANGER (H260) (If Installed) 6. SCAN Button 1. CD Select Button 3. TRACK UP/DOWN 4. FF/REW Button 5. REPEAT Button 2. DISC Select Button H260A01O 1- 73...
  • Page 82 "CD" button and the CD changer can be used even if the radio is being used. The Hyundai CD changer can hold up to eight discs. The disc number will be lit, and the track num- ber, and elapsed time will be displayed.
  • Page 83 FEATURES OF YOUR HYUNDAI H290A01FC-GAT STEREO RADIO OPERATION (H280) (If Installed) 1. POWER ON/OFF VOLUME Control Knob 8. BEST STATION MEMORY or SCAN Button (If installed) 7. EQUALIZER Button 3. TREBLE/FAD Konb 2. BASS/BALANCE Control Knob 5. PRESET Buttons 4. TUNE/SEEK Select Button H290A01O 6.
  • Page 84 When the control knob is turned counterclock- wise, left speaker sound will be emphasized (Right speaker sound will be attenuated). 1- 76 FEATURES OF YOUR HYUNDAI 3. TREBLE/FAD Knob TREBLE Control Knob Press to pop the knob out and turn to the left or right for the desired treble tone.
  • Page 85 FEATURES OF YOUR HYUNDAI 6. BAND Selector Pressing the button changes the AM, FM1 FM/AM and FM2 bands. The mode selected is shown on the display. 7. EQUALIZER Button Press the EQ button to select the CLASSIC, JAZZ, ROCK and DEFEAT MODE for the de- sired tone quality.
  • Page 86 H290C01FC-GAT CASSETTE TAPE PLAYER OPERATION (H280) (If Installed) 3. TAPE PROGRAM Button 1- 78 FEATURES OF YOUR HYUNDAI 1. FF/REW Button 6. DOLBY Button 5. EQUALIZER Button 4. TAPE EJECT Button 2. AUTO MUSIC Select Button H290A01O...
  • Page 87 This allows you to play the reverse side of the tape by merely depressing the program button. An arrow will appear in the display to show tape direction. FEATURES OF YOUR HYUNDAI 4. TAPE EJECT button o When the button is pressed with the cassette loaded, the cassette is ejected.
  • Page 88 H290E01FC-GAT COMPACT DISC PLAYER OPERATION (H280) (If Installed) 6. CD EJELT Button 1. CD Select Button 1- 80 FEATURES OF YOUR HYUNDAI 2. FF/REW Button 4. REPEAT 7. SCAN Button (If installed) 5. EQUALIZER Button 3. TRACK UP/DOWN H290A01O...
  • Page 89 Press button once to skip back to the beginning of the track. FEATURES OF YOUR HYUNDAI 4. REPEAT o To repeat the music you are listening to, press the RPT button. To cancel, press again.
  • Page 90 H290G01FC-GAT CD AUTO CHANGER (H280) (If Installed) 1. CD CHANGER Select Button 1- 82 FEATURES OF YOUR HYUNDAI 4. FF/REW Button 5. REPEAT 2.DISC Select Button 6. SCAN Button (If installed) 7. EQ Button 3. TRACK UP/DOWN H290A01O...
  • Page 91 "CD/CDC" button and the CD changer can be used even if the radio or cassette player is being used. The Hyundai CD changer can hold up to eight discs. The disc number will be lit, and the track number, and elapsed time will be displayed.
  • Page 92 FEATURES OF YOUR HYUNDAI CAUSE AFTER RESETTING THE AUDIO, PUSH THE EJECT BUTTON. IF DISC IS NOT EJECTED, CONSULT YOUR HYUNDAI DEALER. MAKE SURE THE DISC IS NOT SCRATCHED OR DAMAGED. PRESS THE EJECT BUTTON AND PULL OUT THE DISC. THEN INSERT A NORMAL CD DISC.
  • Page 93 Do not grip or pull out the disc with your hand FEATURES OF YOUR HYUNDAI while the disc is being pulled into the unit by the self loading mechanism.
  • Page 94 If this does not correct the problem, do not continue to use the tape in your vehicle. 1- 86 FEATURES OF YOUR HYUNDAI Head Cotton applicator SSAR042B o The playback head, capstan and pinch roll-...
  • Page 95 Be sure to remove the antenna before washing the car in an automatic car wash or it may be damaged. o When reinstalling your antenna, it is im- portant that it is fully tightened to ensure proper reception. FEATURES OF YOUR HYUNDAI 1- 87...

  • Page 96: Driving Your Hyundai

    Hyundai dealer. o Do not run the engine in an enclosed area.
  • Page 97 “ON” position. C030A01A-AAT COMBINATION IGNITION SWITCH To Start the Engine o If your Hyundai is equipped with a manual transaxle, place the shift lever in neutral and depress the clutch pedal fully. o If your Hyundai has an automatic transaxle, place the shift lever in "P"...
  • Page 98 The carbon monoxide gas emitted is odorless and can cause serious injury or death. DRIVING YOUR HYUNDAI C050B01A-AAT Normal Conditions: The Starting Procedure: 1.
  • Page 99 C070A02GK-AAT OPERATING THE MANUAL TRANSAXLE HGK181-E Your Hyundai's manual transaxle has a con- ventional shift pattern. This shift pattern is im- printed on the shift knob. The transaxle is fully synchronized in all forward gears so shifting to either a higher or a lower gear is easily accom- plished.
  • Page 100 45 mph (75 km/h) C090A03Y-AAT AUTOMATIC TRANSAXLE HGK174 The highly efficient Hyundai automatic transaxle has four forward speeds and one reverse speed. The individual speeds are selected automati- cally, depending on the position of the speed selector lever. The selector lever has 2 gates;...
  • Page 101 "ON". During the sports mode operation, the gear currently in use dis- plays in the numeral indicator. 2- 6 DRIVING YOUR HYUNDAI C090B01A-AAT The function of each position is as follows: o P (Park): Use to hold the vehicle in place when parked or while starting the engine;...
  • Page 102 DRIVING YOUR HYUNDAI o Before driving away from a stop on a slippery road, push the selector lever forward into the +(UP) position. This...
  • Page 103 If the braking action does not return to normal, stop as soon as it is safe to do so and call your Hyundai dealer for assistance. o Don’t coast down hills with the car out of gear.
  • Page 104 These conditions are normal and indi- cate that the anti-lock brake system is func- tioning properly. DRIVING YOUR HYUNDAI WARNING: ABS will not prevent accidents due to im- proper or dangerous driving maneuvers.
  • Page 105 ON. 2) When the traction control is operating properly, you can feel a slight pulsation 2- 10 DRIVING YOUR HYUNDAI in the vehicle. This is only the effect of brake control and indicates nothing un- usual. 3) When the engine starts, a click is heard from the engine compartment;...
  • Page 106 (see Section 5 for details). o Keep your car clean. For maximum service, your Hyundai should be kept clean and free of corrosive materials. It is especially impor- tant that mud, dirt, ice, etc. not be allowed to accumulate on the underside of the car.
  • Page 107 Visually inspect the battery and cables as described in Section 6 (See page 6-16). The level of charge in your battery can be checked by your Hyundai dealer or a service station. C160E01A-AAT Change to "Winter Weight" Oil if...
  • Page 108 Since laws vary from State to State, the re- quirements for towing trailers, cars, other types of vehicles, or apparatus may differ. Ask your Hyundai dealer for further details before towing. CAUTION: Do not do any towing with your car during its first 1,200 miles (2,000 km) in order to allow the engine to properly break in.
  • Page 109 This can be verified by checking the total weight of the loaded trailer and then checking the load on the tongue. 2- 14 DRIVING YOUR HYUNDAI NOTE: 1. Never load the trailer with more weight in the back than in the front. About 60% of...
  • Page 110 1st or Reverse (manual) or Park (automatic). In addition, place wheel chocks at each of the trailer's tires. DRIVING YOUR HYUNDAI 9. If the trailer has electric brakes, start your vehicle and trailer moving, and then apply the trailer brake controller by hand to be sure the brakes are working.

  • Page 111: What To Do In An Emergency

    Move cautiously off the road to a safe place. 2. Turn on your emergency flashers. 3. Try to start the engine again. If your vehicle will not start, contact a Hyundai dealer or seek other qualified assistance. D020A02A-AAT JUMP STARTING...
  • Page 112 If you do not know why your battery became discharged (because the lights were left on, etc.), have the charging system checked by your Hyundai dealer. D030A01A-AAT IF THE ENGINE OVERHEATS If your temperature gauge indicates overheating,...
  • Page 113 7. Proceed with caution, keeping alert for fur- ther signs of overheating. If overheating hap- pens again, call a Hyundai dealer for assis- tance. CAUTION: Serious loss of engine coolant indicates...
  • Page 114 D050A01A-AAT IF YOU HAVE A FLAT TIRE If a tire goes flat while you are driving: 1. Take your foot off the accelerator pedal and let the car slow down while driving straight ahead. Do not apply the brakes immediately or attempt to pull off the road as this may cause a loss of control.
  • Page 115 3. Change the flat tire. 4. Reinstall the wheel cap by fitting the boss of the wheel cap in the groove of the wheel, hitting the center of the wheel cap with your hand. D060B02GK-AAT 1. Obtain Spare Tire and Tool HGK189 Remove the spare tire and remove the jack and tool bag from the trunk.
  • Page 116 D060E01A-AAT 4. Put the Jack in Place HGK186 The base of the jack should be placed on firm, level ground. The jack should be positioned as shown in the drawing. WHAT TO DO IN AN EMERGENCY D060F02E-AAT 5. Raising the Car Wrench bar Wheel nut wrench HFC4022...
  • Page 117 STA3071H WARNING: Wheels and wheel covers may have sharp edges. Handle them carefully to avoid pos- sible severe injury. Before putting the wheel into place, be sure that there is nothing on the hub or wheel (such as mud, tar, gravel, etc.) that interferes with the wheel from fitting solidly against the hub.
  • Page 118 Your car can be damaged if towed incor- rectly! If your car has to be towed, it should be done by your Hyundai dealer or a commercial tow truck service. This will help assure that your car is not damaged in towing. Also, professionals are generally aware of state and local laws govern- ing towing.
  • Page 119 D080C02A-AAT Towing a Car With an Automatic Transaxle HGK200 o NOT FOR AUTOMATIC TRANSAXLE EQUIPPED VEHICLE o OK FOR MANUAL TRANSAXLE CAUTION: A car with an automatic transaxle should never be towed from the rear with the front wheels on the ground. This can cause seri- ous damage to the transaxle.
  • Page 120 D120A01A-AAT IF YOU LOSE YOUR KEYS If you lose your keys, many Hyundai dealers can make you a new key if you have your key number. If you lock the keys inside your car and you...

  • Page 121: Corrosion Prevention And Appearance Care

    Protecting Your Hyundai from Corro- sion By using the most advanced design and con- struction practices to combat corrosion, Hyundai produces cars of the highest quality, However, this is only part of the job. To achieve the long- term corrosion resistance your Hyundai can deliver, the owner’s cooperation and assistance...

  • Page 122: Corrosion Prevention & Appearance Care

    Use a good quality car-washing solution and follow the manufacturer’s directions on the pack- age. These are available at your Hyundai dealer or auto parts outlet. Don’t use strong household detergents, gasoline, strong solvents or abra- sive cleaning powders as these may damage the finish.
  • Page 123 Maintaining Bumpers Special precautions must be observed to pre- serve the appearance of the bumpers on your Hyundai. They are: o Be careful not to spill battery electrolyte or hydraulic brake fluid on the bumpers. If you do, wash it off immediately with clear water.
  • Page 124 However, when cleaning the inside of the rear window be careful not to damage the rear window defroster wiring. E050A01A-AAT Any Questions? If you have any questions about the care of your car, consult your Hyundai dealer.

  • Page 125: Vehicle Maintenance Requirements

    F010D01A-AAT General Checks These are the regular checks you should per- form when you drive your Hyundai or you fill the fuel tank. A list of these items will be found on page 6-3. F010E01A-AAT Do-It-Yourself Maintenance...
  • Page 126 VEHICLE MAINTENANCE REQUIREMENTS compliance with conditions of the emissions system warranty. o After 120 months or 150,000 miles (240,000 km), continue to follow the prescribed main- tenance intervals. o For severe usage maintenance require- ments, see page 5-5 of this section. 5- 2...
  • Page 127 VEHICLE MAINTENANCE REQUIREMENTS F030A01A-AAT SCHEDULED MAINTENANCE The following maintenance services must be performed to ensure good emission control and performance. Keep receipts for all vehicle emission services to protect your emission warranty. Where both mileage and time are shown, the frequency of service is determined by whichever occurs first. F030B01GK-AAT R :Replace I : Inspect and, after inspection, clean, adjust, repair or replace if necessary.
  • Page 128 VEHICLE MAINTENANCE REQUIREMENTS F030C01GK-AAT R : Replace I : Inspect and, after inspection, clean, adjust, repair or replace if necessary MILES X 1000 DESCRIPTION KILOMETERS X 1000 MONTHS GENERAL ITEMS DRIVE BELT (WATER PUMP, GENERATOR AND A/CON) COOLANT TIMING BELT MANUAL TRANSAXLE OIL AUTOMATIC TRANSAXLE FLUID BRAKE FLUID...
  • Page 129 VEHICLE MAINTENANCE REQUIREMENTS F040A01GK-AAT MAINTENANCE UNDER SEVERE USAGE CONDITIONS The following items must be serviced more frequently on cars normally used under severe driving conditions. Refer to the chart below for the appropriate maintenance intervals. R : Replace I : Inspect and, after inspection, clean, adjust, repair or replace if necessary MAINTENANCE ITEM ENGINE OIL AND FILTER AIR CLEANER FILTER...
  • Page 130 F060H01A-AAT o Air cleaner filter A Genuine Hyundai air cleaner filter is recom- mended when filter is replaced. F060J01A-AAT o Spark plugs Make sure to install new spark plugs of the correct heat range.
  • Page 131 Check the automatic transaxle fluid level with the engine running and the transaxle in neutral, with the parking brake properly applied. Use HYUNDAI GENUINE ATF, DIAMOND ATF SP-III, SK ATF SP-III when adding or changing fluid.

  • Page 132: Do-It-Yourself Maintenance

    6. DO-IT-YOURSELF MAINTENANCE G010A01GK-AAT ENGINE COMPARTMENT (2.0 DOHC) 1. Engine oil filler cap 2. Brake Booster 3. Brake fluid reservoir 4. Clutch fluid reservoir (If installed) 5. Relay box DO-IT-YOURSELF MAINTENANCE 6. Windshield washer fluid reservoir cap 7. Power steering fluid reservoir 8.
  • Page 133 G010B01GK-GAT ENGINE COMPARTMENT (2.7 V6) 1. Power steering fluid reservoir 2. Brake Booster 3. Brake fluid reservoir 4. Air Cleaner DO-IT-YOURSELF MAINTENANCE 5. Relay box 6. Windshield washer fluid reservoir cap 7. Engine coolant reservoir 8. Engine oil level dipstick 9.
  • Page 134 If you notice anything that does not operate correctly or appears to be functioning incorrect- ly, inspect it carefully and seek assistance from your Hyundai dealer if service is needed. G030A01A-AAT CHECKING THE ENGINE OIL Engine oil is essential to the performance and service of the engine.
  • Page 135 G030C01A-AAT To Check the Oil Level DOHC HGK210 Before checking the oil, warm up the engine to the normal operating temperature and be sure your car is parked on level ground. Turn the engine off. Wait a minute, then remove the dipstick, wipe it off, fully reinsert the dipstick and withdraw it again.
  • Page 136 3. Slide underneath the car and loosen the drain plug by turning it counterclockwise with a wrench of the proper size. Be sure that a drain pan is in position to catch the oil as it drains out, then remove the drain plug. WARNING: Be very careful when draining the engine oil as it may be hot enough to burn you!
  • Page 137 "LOW" and "FULL". If the level is low, inspect for coolant leaks and recheck the fluid level fre- quently. If the level drops again, visit your Hyundai dealer for an inspection and diagnosis of the reason. DO-IT-YOURSELF MAINTENANCE G050D02A-AAT...
  • Page 138 When spark plugs are replaced, always use spark plugs recommended by Hyundai. The use of other spark plugs can result in loss of perfor- mance, radio interference or engine damage.
  • Page 139 To change the filter, unsnap the clips around the cover. When this is done, the cover can be lifted off, the old filter removed and the new filter put in its place. Genuine Hyundai Replacement Parts are recommended. CAUTION: o Operating your vehicle without a proper air filter in place can result in excessive engine wear.
  • Page 140 Transaxle lubricant in the manual transaxle should be checked at those intervals specified in the vehicle maintenance schedule in Section 5. Recommended Oil Use only HYUNDAI GENUINE PARTS MTF 75W/90 (API GL-4) or equivalents in the manual transaxle. Manual Transaxle Oil Capacity The oil capacity of the manual transaxle: 2.3 us quarts (2.15L)
  • Page 141 Section 5. G110B03A-AAT Recommended Fluid Your Hyundai automatic transaxle is specially designed to operate with HYUNDAI GENUINE ATF, DIAMOND ATF SP-III or SK ATF SP-III. Damage caused by a nonspecified fluid is not covered by your new vehicle limited warranty.
  • Page 142 Because brakes are essential to the safe operation of the car, it is suggested that they be checked and inspected by your Hyundai dealer. The brakes should be checked and inspected for wear at those intervals specified in the vehicle mainte- nance schedule in Section 5.
  • Page 143 Fill as required. Fluid loss indicates a leak in the clutch system which should be inspected and repaired imme- diately. Consult your Hyundai dealer. G130B02A-AAT To Replace the Fluid Recommended brake fluid conforming to DOT 3 or DOT 4 specification should be used.
  • Page 144 This is the clutch pedal free-play. The free-play should be within the limits specified in the illustration. If it is not, have it inspected by your Hyundai dealer and adjusted or repaired if necessary. G170A01A-AAT...
  • Page 145 If the brake pedal clearance is not within the limits specified in the illustration, have it in- spected by your Hyundai dealer and adjusted or repaired if necessary. 6-14 DO-IT-YOURSELF MAINTENANCE...
  • Page 146 The fuse should be a snug fit. If it is not, have the fuse clip repaired or replaced by a Hyundai dealer. If you do not have a spare fuse, you may be...
  • Page 147 G210A01A-AAT CHECKING THE BATTERY WARNING: Batteries can be dangerous! When working with batteries, carefully observe the follow- ing precautions to avoid serious injuries. The fluid in the battery contains a strong solu- tion of sulfuric acid, which is poisonous and highly corrosive.
  • Page 148 FOR MORE INFORMATION ABOUT YOUR HYUNDAI If you desire additional information about main- taining and servicing your Hyundai, you may purchase a factory Shop Manual at your Hyundai dealer's parts department. This is the same DO-IT-YOURSELF MAINTENANCE manual used by dealership technicians and...
  • Page 149 8. Adjust each cut-off line of the low beam to the each vertical line with a phillips screw- driver - HORIZONTAL AIMING. WARNING: Horizontal aiming should be adjusted by an authorized Hyundai Dealer. G290B01GK-AAT Adjustment After Headlight Assembly Replacement Vertical 0.827in.(21mm)
  • Page 150 G280A02GK-AAT (High) Part Name Head Light (High/Low) Map Light Front Position Light Front Fog Light (If installed) Front Turn Signal Light/ Side Marker Front Door Edge Warning Light Luggage Compartment Light DO-IT-YOURSELF MAINTENANCE (Low) Wattage 55/55 High Mounted Stop Light Rear Combination 28/8...
  • Page 151 G200C01GK-GAT FUSE PANEL DESCRIPTION Engine Compartment If installed NOTE: Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label. 6-20 DO-IT-YOURSELF MAINTENANCE DESCRIPTION...
  • Page 152 G200D01GK-GAT Inner Panel DO-IT-YOURSELF MAINTENANCE DESCRIPTION IG COIL B/UP LAMP A/BAG IND A/BAG HTD MIR HAZARD R/WIPER TAIL-RH F/WIPER A/C SW RR DEFOG STOP TAIL-LH A/CON CLUSTER ROOM LP P/WINDOW T/GATE HGK204-E RR FOG C/LIGHT S/ROOF S/HTR AUDIO FUSERATING PROTECTED COMPONENTS Ignition Coil, ECM AMP.

  • Page 153: Emission Control Systems

    In order to ensure the proper function of the emission control systems, it is recommended that you have your car inspected and main- tained by an authorized Hyundai dealer in ac- cordance with the maintenance schedule in this manual. Caution for Inspection and Maintenance Test...
  • Page 154 Remember that your Hyundai dealer is your best source of assistance. o Do not stop your Hyundai over any com- bustible material such as grass, paper, leaves or rags. These materials might contact the hot catalytic converter and a fire might result.

  • Page 155: Consumer Information & Reporting Safety Defects

    I010B01GK The engine number is stamped on the engine block as shown in the drawing. I020A01A-AAT TIRE INFORMATION The tires supplied on your new Hyundai are chosen to provide the best performance for normal driving. I030A01GK-AAT RECOMMENDED INFLATION PRES- SURES...
  • Page 156 Tires should be rotated every 6,000 miles (10,000 km). If you notice that tires are wearing unevenly between rotations, have the car checked by a Hyundai dealer so the cause may be corrected. After rotating, adjust the tire pressures and be sure to check wheel nut tightness.
  • Page 157 I070A01A-AAT TIRE BALANCING A tire that is out of balance may affect handling and tire wear. The tires on your Hyundai were balanced before the car was delivered but may need balancing again during the years you own the car.
  • Page 158 Spare tire and wheel Wheel nut wrench, Wrench bar Jack I110A01A-AAT SHOP MANUAL A Hyundai Shop Manual is available from your authorized Hyundai dealer. It's written for pro- fessional technicians, but is simple enough for most mechanically-inclined owners to under- stand.
  • Page 159 I130D02A-AAT Hyundai motor vehicles are designed and man- ufactured to meet or exceed all applicable safe- ty standards. For your safety, however, we strongly urge you...
  • Page 160 National High- way Traffic Safety Administration (NHTSA) in addition to notifying HYUNDAI MOTOR AMERICA. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.

  • Page 161: Vehicle Specifications

    9. VEHICLE SPECIFICATIONS J010A01GK-AAT MEASUREMENT Overall length Overall width Overall height (unladen) Wheel base Front Wheel tread Rear J020A01GK-AAT POWER STEERING Type Rack and pinion Wheel free play 0 ~ 1.18 in.(0 ~ 30 mm) Rack stroke 5.20 in.(132 mm) Oil pump type Vane type J060A01F-AAT...
  • Page 162 J070A02GK-AAT ENGINE ITEMS Engine Type Bore x Stroke Displacement (cc) Firing order Valve clearance Intake (Cold Engine : 20 ± 5°C) Exhaust Spark plug CHAMPION Spark plug gap Idle speed (RPM) Ignition timing (Base) VEHICLE SPECIFICATIONS 2.0 L 4-Cyl., In-line DOHC 82 x 93.5 1,975 1 - 3 - 4 - 2...
  • Page 163 SG/CD Cold Climate:SAE 5W-30 5W-40 (BELOW 95°F OR 35°C) Transaxle HYUNDAI GENUINE PARTS MTF 75W/90 (API GL-4) Manual HYUNDAI GENUINE ATF, DIAMOND ATF SP-III or SK ATF SP-III Auto Power Steering PSF-3 Brake Fluid DOT 3 or DOT 4 equivalent...

  • Page 164: Index

    Compact Disc Player Operation (H260, H280) ... 1-71, 1-80 Consumer Information ... 8-4 Cooling Fans ... 6-16 Corrosion Protection Cleaning the interior ... 4-3 Protecting your Hyundai from corrosion ... 4-1 Washing and waxing ... 4-2 Cruise Control ... 1-44 ~ 1-45 Defrosting/Defogging ... 1-51 Door Central door lock ...
  • Page 165 Drive Belts ... 6-12, 6-14 Driving Economical driving ... 2-10 Smooth cornering ... 2-11 Winter driving ... 2-11 Emissions Control Systems ... 7-1 Engine Before starting the engine ... 2-2 Compartment ... 6-1 Coolant ... 6-5 Coolant temperature gauge ... 1-28 If the engine overheats ...
  • Page 166 Keys ... 1-2 If you lose your keys ... 3-9 Positions ... 2-2 Luggage net ... 1-43 Maintenance Intervals Explanation of scheduled maintenance items ... 5-6 ~ 5-7 Maintenance under severe usage conditions ... 5-5 Scheduled maintenance ... 5-3 ~ 5-4 Service requirements ...
  • Page 167 Snow tires ... 8-2 Spare tire ... 3-3 Traction ... 8-3 Towing A trailer (or vehicle) ... 2-13 Emergency ... 3-9 If your car must be towed ... 3-8 Transaxle Automatic ... 2-5 Automatic transaxle fluid checking ... 6-10 Manual ... 2-4 Manual transaxle oil checking ...
  • Page 168 A000A01A-AAT This Owner's Manual should be considered a part of the car and remain with it when it is sold for the use of the next owner. ORIGINAL OWNER ADDRESS CITY STATE DELIVERY DATE DEALER NAME ADDRESS CITY STATE ONWER'S I.D. ZIP CODE (Date Sold to Original Retail purchaser) DEALER NO.
  • Page 169 Apply the parking brake, with the engine running, shift the selector lever through all ranges and return to “N” (Neutral) position. Then check the level of fluid on the dipstick. Use only HYUNDAI GENU- INE ATF available at your dealer or DIAMOND ATF SP-III, SK ATF SP-III.

Table of Contents
