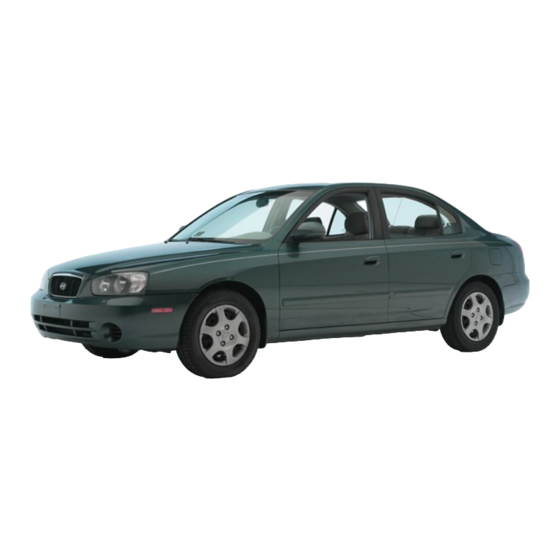

Hyundai 2003 Elantra Owner's Manual
  1. Manuals
  2. Brands
  3. Hyundai Manuals
  4. Automobile
  5. 2003 Elantra
  6. Owner's manual

Hyundai 2003 Elantra Owner's Manual

Hide thumbs Also See for 2003 Elantra:
Table of Contents

Advertisement

Quick Links

2003
D R I V I N G IS B E L I E V I N G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2003 Elantra and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai 2003 Elantra

Summary of Contents for Hyundai 2003 Elantra

  • Page 1 2003 D R I V I N G IS B E L I E V I N G...
  • Page 2 A000A01A-AAT This Owner's Manual should be considered a part of the car and remain with it when it is sold for the use of the next owner. ORIGINAL OWNER ADDRESS CITY STATE DELIVERY DATE DEALER NAME ADDRESS CITY STATE OWNER'S I.D. ZIP CODE (Date Sold to Original Retail purchaser) DEALER NO.
  • Page 3 RESPONSIBILITY FOR MAINTENANCE RESPONSIBILITY FOR MAINTENANCE The maintenance requirements for your new Hyundai are found in Section 5. As the owner, it is your responsibility to see that all maintenance operations specified by the manufacturer are carried out at the appropriate intervals. When the vehicle is used in severe driving conditions, more frequent maintenance is required for some operations.
  • Page 4 Specifications Specifications All information in this Owner's Manual is current at the time of publication. However, Hyundai reserves the right to make changes at any time so that our policy of continual product improvement may be carried out. This manual applies to all Hyundai models and includes descriptions and explanations of optional as well as standard equipment. As a...
  • Page 5 Your Owner's Manual will introduce you to the features and operation of your new Hyundai. It is suggested that you read it carefully because the information it contains can contribute greatly to the satisfaction you receive from your new car.
  • Page 6 Your Hyundai should not be modified in any way. Such modifications may adversely affect the performance, safety or durability of your Hyundai and may, in addition, violate conditions of the limited warranties covering the vehicle. Certain modifications may also be in violation of regulations established by the U.S.
  • Page 7 A090A01A-AAT SAFETY AND VEHICLE DAMAGE WARNING SAFETY AND VEHICLE DAMAGE WARNING SAFETY AND VEHICLE DAMAGE WARNING SAFETY AND VEHICLE DAMAGE WARNING SAFETY AND VEHICLE DAMAGE WARNING This manual includes information titled as WARNING, CAUTION and NOTE. These titles indicate the following: WARNING: This indicates that a condition may result in harm, serious injury or death to you or other persons if the warning is not heeded.

  • Page 8: Table Of Contents

    TABLE OF CONTENTS SECTION FEATURES OF YOUR HYUNDAI ... 1-1 DRIVING YOUR HYUNDAI ... 2-1 WHAT TO DO IN AN EMERGENCY ... 3-1 CORROSION PREVENTION & APPEARANCE CARE ... 4-1 VEHICLE MAINTENANCE REQUIREMENTS ... 5-1 DO-IT-YOURSELF MAINTENANCE ... 6-1 EMISSION CONTROL SYSTEMS ... 7-1 CONSUMER INFORMATION &...
  • Page 9 PARTS PARTS PARTS PARTS PARTS 1. What are Hyundai Genuine Parts? Hyundai Genuine Parts are the same parts used by Hyundai Motor Company to manufacture vehicles. They are de- signed and tested for the optimum safety, performance, and reliability to our customers.

  • Page 10: Fuel Recommendations

    Emission Control System. B010F01A-AAT Operation in Foreign Countries If you are going to drive your Hyundai in another country, be sure to: o Observe all regulations regarding registra- tion and insurance.

  • Page 11: Illuminated Ignition Switch

    Record Your Key Number B030B01E A code number is stamped on the number plate that came with the keys to your Hyundai. This key number plate should not be left with the keys but kept in a safe place, not in the vehicle.
  • Page 12 Lock the door by turning the key toward the front of the vehicle and unlock it by turning the key toward the rear. FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...

  • Page 13: Child-Protector Rear Door Lock

    LOCK LOCK LOCK B040E01E Your Hyundai is equipped with a "child-protec- tor" rear door lock assembly. When the lock mechanism is engaged, the rear door cannot be opened from the inside. It's use is recom- mended whenever there are small children in the rear seat.
  • Page 14 2) The trunk lid (4 door) is opened without using the key. 3) The engine hood is opened. FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...

  • Page 15: Window Glass

    Screwdriver Screwdriver MSO-0048-1 1. Separate the case with a blade screwdriver as shown in the illustration. 1- 6 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI Case Case...

  • Page 16: Adjustable Front Seats

    If this is done, the window will stop and cannot be opened or closed. FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI 3) Do not leave children alone in the car.
  • Page 17 The use of a cushion that holds the body The use of a cushion that holds the body The use of a cushion that holds the body 1- 8 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...
  • Page 18 In addition, do not place objects on the rear shelf as they may move forward during braking or in an accident and strike vehicle passengers. FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...
  • Page 19 3. Pull the seatback locking knob (B) on the seatback to fold-down the seatback. 1- 10 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...

  • Page 20: Seat Belt Precautions

    When you return the folded down seat back to its upright position, always be sure to place the rear seat belt buckles on the seat cushion below the seatback. FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...

  • Page 21: Care Of Seat Belts

    For specific recommendations, consult a physician. 1- 12 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...
  • Page 22 This should be done even if no damage is visible. Additional ques- tions concerning seat belt operation should be directed to your Hyundai Dealer. FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...
  • Page 23 Although a combination re- tractor is also installed in the front passenger seat position, Hyundai strongly recommends that children always be seated in the rear seat rear seat rear seat rear seat.
  • Page 24 If this does not happen, check the belt to be sure it is not twisted, then try again. FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...

  • Page 25: Child Restraint System

    1- 16 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...
  • Page 26 If the seat belt will not properly fit the If the seat belt will not properly fit the If the seat belt will not properly fit the child, Hyundai recommends the use of child, Hyundai recommends the use of child, Hyundai recommends the use of...
  • Page 27 If the seat belt does not operate as de- scribed, have the system checked imme- diately by your authorized Hyundai deal- WARNING: o If the retractor is not in the Automatic Locking mode, the child restraint system can move when your vehicle turns or stops abruptly.

  • Page 28: Securing Child Restraint Seat With Isofix

    Their locations are shown in the illustration. There is no ISOFIX anchor provided for the center rear seating position. FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...
  • Page 29 Pre-tensioner Seat Belt Pre-tensioner Seat Belt Pre-tensioner Seat Belt Pre-tensioner Seat Belt Your Hyundai vehicle is equipped with driver's and front passenger's pre-tensioner seat belts. The purpose of the pre-tensioner is to make sure that the seat belts fit tightly against the occupant's body in certain frontal collisions.

  • Page 30: Supplemental Restraint

    This must pre-tensioner seat belts yourself. This must pre-tensioner seat belts yourself. This must be done by an authorized Hyundai dealer. be done by an authorized Hyundai dealer. be done by an authorized Hyundai dealer. be done by an authorized Hyundai dealer.
  • Page 31 If the airbags deploy, they must be re- If the airbags deploy, they must be re- If the airbags deploy, they must be re- placed by an authorized Hyundai dealer. placed by an authorized Hyundai dealer. placed by an authorized Hyundai dealer.
  • Page 32 "ON" position or after the engine is started, after which the SRI should go out. SSA1110D FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...
  • Page 33 B990B03Y-GAT Side Impact Airbag (If Installed) B990B02Y Your Hyundai is equipped with a side impact airbag in each front seat. The purpose of the airbag is to provide the vehicle's driver and/or the front passenger with additional protection than that offered by the seat belt alone.

  • Page 34: Srs Care

    The SRS is virtually maintenance free and there are no parts you can safely service by yourself. The entire SRS system must be inspected by an authorized Hyundai dealer 10 years after the date that the vehicle was manufactured.
  • Page 35 Hyundai deal- car towed to an authorized Hyundai deal- car towed to an authorized Hyundai deal-...

  • Page 36: Instruments And Controls

    3. Multi-Function Light Switch 4. Horn and Driver's Airbag 5. Windshield Wiper/Washer Switch 6. TCS Switch (If installed) 7. Center Air Vent Louver FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...
  • Page 37 4. Turn Signal Indicator Light 5. Tachometer 6. Automatic Transaxle Position Indicator Light (Auto T/A only) 1- 28 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI 13 14 15 16 17 18 7.
  • Page 38 4. High Beam Indicator Light 5. Speedometer 6. Fuel Gauge 7. Front Fog Indicator Light (If installed) 8. Door Ajar Warning Light FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI 12 13 14 1516 17 18 9.
  • Page 39 ABS. If this occurs, have your vehicle checked by your Hyundai dealer as soon as possible. The normal braking system will still be operational, but without the assistance of the anti-lock brake system.
  • Page 40 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI found, the car should be immediately and care- fully driven to a Hyundai dealer for inspection. If further trouble is experienced, the vehicle should not be driven at all but taken to a dealer by a professional towing service or some other safe method.
  • Page 41 "ON" position, and then go off in a few seconds. If the TCS indicator stays on, take your car to your authorized Hyundai dealer and have the system checked. See section 2 for more information about the TCS system.

  • Page 42: Engine Coolant Temperature Gauge

    Then open the hood and, after the engine has cooled, check the coolant level and the water pump drive belt. If you suspect cooling system trouble, have your cooling sys- tem checked by a Hyundai dealer as soon as possible. B300A01S-AAT SPEEDOMETER...

  • Page 43: Odometer/Trip Odometer

    This can cause severe engine damage and may void your war- ranty. 1- 34 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...

  • Page 44: Trip Meter

    The alteration of the odometer may void your warranty coverage. FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...

  • Page 45: Front Fog Light Switch

    NOTE: o If the distance to empty is indicated "- -", have the trip computer system checked by your authorized Hyundai dealer. o The distance to empty can differ from the actual tripmeter according to driving conditions.
  • Page 46 To indicate a lane change, move the lever up or down to a point where it begins flashing. The lever will automatically return to the center position when released. FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...

  • Page 47: Windshield Wiper And Washer Switch

    1- 38 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...

  • Page 48: Rear Window Wiper And Washer

    Do not operate the washer continuously for more than 15 seconds or when the fluid reser- voir is empty; this could damage the system. FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...

  • Page 49: Digital Clock

    Do not hold the cigarette lighter pressed in. This can damage the heating element and create a fire hazard. If it is necessary to replace the cigarette lighter, use only a genuine Hyundai replacement or its approved equivalent. B430A01S-AAT FRONT ASHTRAY...

  • Page 50: Drink Holder

    FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...
  • Page 51 SUNROOF (If Installed) SUNROOF (If Installed) The sunroof can be operated with the ignition key in the "ON" position 1- 42 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...

  • Page 52: Front Interior Light

    HFC1037 2. Turn the hexagonal bolts with a socket wrench counterclockwise to remove the front overhead console . FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI 3.

  • Page 53: Interior Light

    OFF In the "OFF" position, the light stays off at all times even though a door is open. 1- 44 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...

  • Page 54: Multi Box

    It is used for storing small articles. If the muti box is removed, the fuse box for the lights and other electrical accessories will be exposed. FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...

  • Page 55: Outside Rearview Mirror Heater

    It is a convex mirror with a curved surface. Any objects seen in this mirror are closer than they appear. 1- 46 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...

  • Page 56: Day/Night Inside Rearview Mirror

    B520A01A-AAT DAY/NIGHT INSIDE REARVIEW MIRROR B520A01E Your Hyundai is equipped with a day/night inside rearview mirror. The "night" position is selected by flipping the tab at the bottom of the mirror toward you. In the "night" position, the glare of headlights of cars behind you is re- duced.

  • Page 57: Hood Release

    The purpose of this light is to assist when you get in or out and also to warn passing vehicles. 1- 48 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...

  • Page 58: Floor Mat Anchor

    If you need to replace the the filler area. If you need to replace the the filler area. If you need to replace the filler cap, use a genuine Hyundai re- filler cap, use a genuine Hyundai re- filler cap, use a genuine Hyundai re-...

  • Page 59: Trunk Lid (4 Door)

    This will open the trunk lid. o HYUNDAI recommends that cars be kept locked and keys be kept out of the reach of children, and that parents teach their children about the dangers of playing in trunks.

  • Page 60: Tail Gate (5 Door)

    SUN VISOR Vanity mirror B580A01E Your Hyundai is equipped with sun visors to give the driver and front passenger either fron- tal or sideward shade. The sun visors are fitted on both sides on all models. To reduce glare or to shut out direct rays of the sun, turn the sun visor down to block the annoyance.

  • Page 61: Steering Wheel Tilt Lever

    TICKET HOLDER (If Installed) HXDOM240 For your convenience, it may be used for holding a tollgate ticket. 1- 52 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI B600A01A-AAT...
  • Page 62 When you remove your foot from the accelerator pedal, the vehicle will return to the speed you have set. FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...
  • Page 63 6% up-hill or down-hill roads. o Pay particular attention to the driving conditions whenever using the cruise control system. 1- 54 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...

  • Page 64: Recirculation Mode

    With the "Recirculation" mode selected, air from within the passenger compartment will be drawn FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...

  • Page 65: Heating Controls

    BI-LEVEL HEATING BI-LEVEL HEATING BI-LEVEL HEATING BI-LEVEL HEATING Your Hyundai is equipped with bi-level heating controls. This makes it possible to have cooler air from the dashboard vents and warmer air from the floor outlets at the same time. To use this feature: o Set the air intake control to "Fresh"...

  • Page 66: Features Of Your Hyundai

    If this occurs, set the air flow control to the face level position ( ) and fan speed control to the low position. FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...

  • Page 67: Air Conditioning System

    The vents are closed when the vent knob is moved to the down position. Keep these vents clear of leaves and other debris. 1- 58 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...
  • Page 68 Set the temperature control to "Cool". ("Cool" provides maximum cooling. The tempera- ture may be moderated by moving the con- trol toward "Warm".) FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI o Adjust the fan control to the desired speed.
  • Page 69 B970A01Y-AAT AUTOMATIC HEATING AND COOLING CONTROL SYSTEM (If lnstalled) Your Hyundai is equipped with an automatic heating and cooling control system controlled by simply setting the desired temperature. 1- 60 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...
  • Page 70 Face, Floor and/or Bi-Level modes as well as the blower speed and, air conditioner will be controlled automatically. FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI HXD118A 2.

  • Page 71: Manual Operation

    The higher the fan speed is, the more air is delivered. Pressing the "OFF" button turns off the fan. 1- 62 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...
  • Page 72 Recirculation mode : Air from within the passenger compartment will be drawn through the heating system and heated or cooled according to the function selected. FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...
  • Page 73 1- 64 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...
  • Page 74 If your vehicle is not equipped with this filter, it can be installed by your dealer. Check with your dealer for details. FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...

  • Page 75: Stereo Sound System

    1- 66 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...
  • Page 76 Reducing the treble level may lessen this effect until the disturbance clears. FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...
  • Page 77 H240A01O-GAT STEREO RADIO OPERATION (H240) (If Installed) 5. BAND Selector 1. POWER ON/OFF, VOLUME Control Knob 1- 68 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI 6. PRESET Buttons 4.

  • Page 78: How To Preset Stations

    (Right speaker sound will be attenuated) 3. TREB (Treble Control) Knob Press to pop the knob out and turn to the left or right for the desired treble tone. FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...
  • Page 79 5 seconds. To stop scan- ning, press the scan button again. 1- 70 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...
  • Page 80 H240C01O-GAT CASSETTE TAPE PLAYER OPERATION (H240) (If Installed) 3. TAPE PROGRAM Button FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI 6. TAPE SLOT 2. AUTO MUSIC SELECT Button 4.
  • Page 81 An arrow will appear in the display to show tape direction. 1- 72 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...
  • Page 82 H260A01O-AAT STEREO RADIO OPERATION (H260) (If Installed) 3. BASS/TREBLE Control Knob 1. POWER ON-OFF/VOLUME/BALANCE Control Knob 2. FADER Control Knob FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI 4.
  • Page 83 When the control knob is turned clockwise, rear speaker sound will be emphasized. (Front speaker sound will be attenuated) 1- 74 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI 3.
  • Page 84 When completed, any preset station may be recalled by selecting AM, FM or FM2 band and the appropriate station button. FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...

  • Page 85: Track Up/Down

    H260B01O-AAT COMPACT DISC PLAYER OPERATION (H260) (If Installed) 1- 76 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI 4. SCAN Button 1.Playing CD 3. TRACK UP/DOWN 2. FF/REW Button 5.

  • Page 86: Repeat Button

    Press the SCAN button to playback the first 10 seconds of each track. o Press the SCAN button again within 10 sec. for the desired track. FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI 5.
  • Page 87 B260E01E-AAT CD AUTO CHANGER (H260) (If Installed) 1- 78 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI 6. SCAN Button 1. CD Select Button 3. TRACK UP/DOWN 4. FF/REW Button 5.
  • Page 88 "CD" button and the CD changer can be used even if the radio is being used. The Hyundai CD changer can hold up to eight discs. The disc number will be lit, and the track number, and elapsed time will be displayed.
  • Page 89 H290A01O-AAT STEREO RADIO OPERATION (H290) (If Installed) 6. BAND Select Button 1- 80 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI 1. POWER ON/OFF VOLUME Control Knob 5. PRESET Buttons 4.
  • Page 90 (Left speaker sound will be attenuated) When the control knob is turned counterclock- wise, left speaker sound will be emphasized (Right speaker sound will be attenuated). FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI 3.
  • Page 91 5 seconds. To stop scan- ning, press the scan button again. 1- 82 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...
  • Page 92 H290C01O-AAT CASSETTE TAPE PLAYER OPERATION (H290) (If Installed) 3. TAPE PROGRAM Button FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI 1. FF/REW Button 6. DOLBY Button SCAN 5. EQUALIZER Button 4.
  • Page 93 An arrow will appear in the display to show tape direction. 1- 84 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI 4.
  • Page 94 H290E01O-AAT COMPACT DISC PLAYER OPERATION (H290) (If Installed) 6. CD EJELT Button 1. CD Select Button FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI 2. FF/REW Button 4. REPEAT 7.
  • Page 95 Press button once to skip back to the beginning of the track. 1- 86 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI 4. REPEAT o To repeat the track you are currently listen- ing to, press the RPT button.
  • Page 96 H290G01E-AAT CD AUTO CHANGER (H290) (If Installed) 1. CD CHANGER Select Button FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI 4. FF/REW Button 5. REPEAT 2.DISC Select Button SCAN 6.
  • Page 97 "CD/CDC" button and the CD changer can be used even if the radio or cassette player is being used. The Hyundai CD changer can hold up to eight discs. The disc number will be lit, and the track number, and elapsed time will be displayed.

  • Page 98: Audio Fault Code

    FEATURES OF YOUR HYUNDAI CAUSE AFTER RESETTING THE AUDIO, PUSH THE EJECT BUTTON. IF DISC IS NOT EJECTED, CONSULT YOUR HYUNDAI DEALER. MAKE SURE THE DISC IS NOT SCRATCHED OR DAMAGED. PRESS THE EJECT BUTTON AND PULL OUT THE DISC. THEN INSERT A NORMAL CD DISC.

  • Page 99: Care Of Disc

    When not in use, place your discs in their individual cases and store them in a cool place away from the sun, heat, and dust. 1- 90 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...
  • Page 100 If this does not correct the prob- lem, do not continue to use the tape in your vehicle. FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI...
  • Page 101 1- 92 FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI FEATURES OF YOUR HYUNDAI B870D02Y-GAT Glass Antenna (If Installed) RADIO "ON"...

  • Page 102: Driving Your Hyundai

    Hyundai dealer. o Do not run the engine in an enclosed area.

  • Page 103: Before Starting The Engine

    To Start the Engine To Start the Engine To Start the Engine o If your Hyundai is equipped with a manual transaxle, place the shift lever in neutral and depress the clutch pedal fully. o If your Hyundai has an automatic transaxle, place the shift lever in "P"...
  • Page 104 2. Simultaneously push and turn the ignition key counterclockwise from the "ACC" position to the "LOCK" position. 3. The key can be removed in the "LOCK" position. DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI...

  • Page 105: Operating The Manual Transaxle

    TRANSAXLE TRANSAXLE TRANSAXLE SSA2090A Your Hyundai's manual transaxle has a conven- tional shift pattern. This shift pattern is imprinted on the shift knob. The transaxle is fully synchro- nized in all forward gears so shifting to either a higher or a lower gear is easily accomplished.

  • Page 106: Automatic Transaxle

    AUTOMATIC TRANSAXLE AUTOMATIC TRANSAXLE AUTOMATIC TRANSAXLE C090B01E The highly efficient Hyundai automatic transaxle has four forward speeds and one reverse speed. It has a conventional shift pattern as shown in the illustration. At night, with the multi-function switch turned on to the parking light or headlight posi-...
  • Page 107 Manually move the selector to "D" when return- ing to normal driving condition. 2- 6 DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI...

  • Page 108: Good Braking Practices

    If the braking action does not return to normal, stop as soon as it is safe to do so and call your Hyundai dealer for assis- tance. o Don't coast down hills with the car out of gear.

  • Page 109: Anti-Lock Brake System

    Do not hold the vehicle on the upgrade with the accelerator pedal. This can cause the transmission to overheat. Always use the brake pedal or parking brake. 2- 8 DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI...

  • Page 110: Driving For Economy

    "ON" or "START", but should go out after three seconds. If the indicator does not illuminate, have it checked by an authorized Hyundai dealer. Should there be any unusual conditions in the device, TCS illuminates as a warning.

  • Page 111: Smooth Cornering

    (see Sec- tion 5 for details). o Keep your car clean. For maximum service, your Hyundai should be kept clean and free of corrosive materials. It is especially important that mud, dirt, ice, etc. not be allowed to accumulate on the underside of the car.
  • Page 112 Winter puts additional burdens on the battery system. Visually inspect the battery and cables as described in Section 6. The level of charge in your battery can be checked by your Hyundai dealer or a service station. C160E01A-AAT Change to "Winter Weight" Oil if Change to "Winter Weight"...

  • Page 113: Trailer Or Vehicle Towing

    Since laws vary from State to State, the require- ments for towing trailers, cars, other types of vehicles, or apparatus may differ. Ask your Hyundai dealer for further details before towing. 2- 12 DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI...
  • Page 114 Rating (GVWR) shown on the vehicle iden- Rating (GVWR) shown on the vehicle iden- Rating (GVWR) shown on the vehicle iden- Rating (GVWR) shown on the vehicle iden- DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI tification plate (see page 8-1).
  • Page 115 When ascending a long grade, downshift the transaxle to a lower gear and reduce speed to reduce chances of engine overloading and/or overheating. 2- 14 DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI DRIVING YOUR HYUNDAI 15.If you have to stop while going uphill, do not...

  • Page 116: What To Do In An Emergency

    Reconnect any that may be disconnected or loose. 3. Check the fuel line in the engine room. 4. If the engine still refuses to start, call a Hyundai dealer or seek other qualified assistance. D010D01A-AAT If the Engine Stalls While Driving...

  • Page 117: If The Engine Overheats

    If you do not know why your battery became discharged (because the lights were left on, etc.), have the charging system checked by your Hyundai dealer. D030A01A-AAT IF THE ENGINE OVERHEATS IF THE ENGINE OVERHEATS IF THE ENGINE OVERHEATS...

  • Page 118: Spare Tire

    Hyundai be checked as soon as possible by a Hyundai be checked as soon as possible by a Hyundai...

  • Page 119: Changing A Flat Tire

    cause a loss of control. When the car has slowed to such a speed that it is safe to do so, brake carefully and pull off the road. Drive off the road as far as possible and park on firm, level ground.
  • Page 120 The wheel nuts should be loosened slightly be- fore raising the car. To loosen the nuts, turn the wrench handle counterclockwise. When doing this, be sure that the socket is seated completely over the nut so it cannot slip off. For maximum leverage, position the wrench so the handle is to the right as shown in the drawing.
  • Page 121 STA3071H WARNING: WARNING: WARNING: WARNING: WARNING: Wheel and wheel covers may have sharp Wheel and wheel covers may have sharp Wheel and wheel covers may have sharp Wheel and wheel covers may have sharp Wheel and wheel covers may have sharp edges.

  • Page 122: If Your Car Must Be Towed

    If your car has to be towed, it should be done by your Hyundai dealer or a commercial tow truck service. This will help assure that your car is not damaged in towing. Also, professionals are gen- erally aware of state and local laws governing towing.
  • Page 123 D080C02A-AAT Towing a Car with an Automatic Towing a Car with an Automatic Towing a Car with an Automatic Towing a Car with an Automatic Towing a Car with an Automatic Transaxle Transaxle Transaxle Transaxle Transaxle SSA3100A o NOT OK FOR AUTOMATIC TRANSAXLE EQUIPPED VEHICLE o OK FOR MANUAL TRANSAXLE...

  • Page 124: If You Lose Your Keys

    IF YOU LOSE YOUR KEYS IF YOU LOSE YOUR KEYS IF YOU LOSE YOUR KEYS If you lose your keys, many Hyundai dealers can make you a new key if you have your key number. If you lock the keys inside your car and you cannot obtain a new key, many Hyundai dealers can use special tools to open the door for you.

  • Page 125: Corrosion Protection

    Hyundai produces cars of the highest quality, However, this is only part of the job. To achieve the long- term corrosion resistance your Hyundai can de- liver, the owner's cooperation and assistance is also required.

  • Page 126: Washing And Waxing

    Use a good quality car-washing solution and follow the manufacturer's directions on the package. These are available at your Hyundai dealer or auto parts outlet. Don't use strong household detergents, gasoline, strong solvents or abrasive cleaning powders as these may damage the finish.

  • Page 127: Cleaning The Interior

    Maintaining Bumpers Special precautions must be observed to pre- serve the appearance of the bumpers on your Hyundai. They are: o Be careful not to spill battery electrolyte or hydraulic brake fluid on the bumpers. If you do, wash it off immediately with clear water.
  • Page 128 E050A01A-AAT Any Questions? Any Questions? Any Questions? Any Questions? Any Questions? If you have any questions about the care of your car, consult your Hyundai dealer.

  • Page 129: Vehicle Maintenance Requirements

    Company or its distributor may be used with- out affecting your warranty coverage but you should always be sure these are equivalent to the quality of the original Hyundai parts. Your Owner's Handbook provides further informa- tion about your warranty coverage.
  • Page 130 VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS F020A02S-AAT SCHEDULED MAINTENANCE SCHEDULED MAINTENANCE SCHEDULED MAINTENANCE SCHEDULED MAINTENANCE SCHEDULED MAINTENANCE REQUIREMENTS REQUIREMENTS REQUIREMENTS REQUIREMENTS REQUIREMENTS o Inspection should be performed any time a malfunction is experienced or suspected. o Receipts for all emission control system services should be retained to demon- strate compliance with conditions of the...

  • Page 131: Scheduled Maintenance

    VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS F030A01A-AAT SCHEDULED MAINTENANCE SCHEDULED MAINTENANCE SCHEDULED MAINTENANCE SCHEDULED MAINTENANCE SCHEDULED MAINTENANCE The following maintenance services must be performed to ensure good emission control and performance. Keep receipts for all vehicle emission services to protect your emission warranty.
  • Page 132 VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS F030C03E-AAT R : Replace I : Inspect and, after inspection, clean, adjust, repair or replace if necessary MILES X 1000 DESCRIPTION KILOMETERS X 1000 MONTHS GENERAL ITEMS DRIVE BELT (WATER PUMP, ALTERNATOR AND A/CON) COOLANT...

  • Page 133: Maintenance Under Severe Usage Conditions

    VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS F040A02E-AAT MAINTENANCE UNDER SEVERE USAGE CONDITIONS MAINTENANCE UNDER SEVERE USAGE CONDITIONS MAINTENANCE UNDER SEVERE USAGE CONDITIONS MAINTENANCE UNDER SEVERE USAGE CONDITIONS MAINTENANCE UNDER SEVERE USAGE CONDITIONS The following items must be serviced more frequently on cars normally used under severe driving conditions.

  • Page 134: Explanation Of Scheduled Maintenance Items

    Air cleaner filter o Air cleaner filter o Air cleaner filter o Air cleaner filter o Air cleaner filter A Genuine Hyundai air cleaner filter is recom- mended when the filter is replaced. F060J01A-AAT o Spark plugs o Spark plugs...
  • Page 135 Check the automatic transaxle fluid level with the engine running and the transaxle in neutral, with the parking brake properly applied. Use HYUNDAI GENUINE ATF, DIAMOND ATF SP-III or SK ATF SP-III when adding or changing fluid. F070G02A-AAT...
  • Page 136 VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS VEHICLE MAINTENANCE REQUIREMENTS F070R01A-AAT o o o o o Cylinder Head Cover Gasket Cylinder Head Cover Gasket Cylinder Head Cover Gasket Cylinder Head Cover Gasket Cylinder Head Cover Gasket (2.0L SULEV Only) (2.0L SULEV Only) (2.0L SULEV Only)

  • Page 137: Do-It-Yourself Maintenance

    6. 6. 6. 6. 6. DO-IT DO-IT DO-IT DO-IT-Y -Y -Y -Y -YOURSELF MAINTENANCE OURSELF MAINTENANCE OURSELF MAINTENANCE DO-IT OURSELF MAINTENANCE OURSELF MAINTENANCE G010A01E-GAT ENGINE COMPARTMENT (2.0 DOHC) ENGINE COMPARTMENT (2.0 DOHC) ENGINE COMPARTMENT (2.0 DOHC) ENGINE COMPARTMENT (2.0 DOHC) ENGINE COMPARTMENT (2.0 DOHC) 1.
  • Page 138 G010A02E-GAT ENGINE COMPARTMENT (2.0 SULEV) ENGINE COMPARTMENT (2.0 SULEV) ENGINE COMPARTMENT (2.0 SULEV) ENGINE COMPARTMENT (2.0 SULEV) ENGINE COMPARTMENT (2.0 SULEV) 1. Power steering fluid reservoir 2. Engine oil filler cap 3. Brake booster 4. Brake fluid reservoir DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE...

  • Page 139: General Checks

    Sunvisor operation If you notice anything that does not operate correctly or appears to be functioning incorrect- ly, inspect it carefully and seek assistance from your Hyundai dealer if service is needed. G030A01A-AAT CHECKING THE ENGINE OIL CHECKING THE ENGINE OIL...

  • Page 140: Changing The Oil And Filter

    2.0L SULEV G030B02A SH(API) or GF-I (ILSAC) and ABOVE multi- grade and fuel efficient oil is recommended. G030C01A-AAT To Check the Oil Level To Check the Oil Level To Check the Oil Level To Check the Oil Level To Check the Oil Level G030C01E-1 Before checking the oil, warm up the engine to the normal operating temperature and be sure...

  • Page 141: Checking And Changing The Engine Coolant

    3. Slide underneath the car and loosen the drain plug by turning it counterclockwise with a wrench of the proper size. Be sure that a drain pan is in position to catch the oil as it drains out, then remove the drain plug. WARNING: WARNING: WARNING:...
  • Page 142 DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE quently. If the level drops again, visit your Hyundai dealer for an inspection and diagnosis of the reason. G050D02A-AAT To Change the Engine Coolant To Change the Engine Coolant To Change the Engine Coolant...

  • Page 143: Spark Plugs

    When spark plugs are replaced, always use spark plugs recommended by Hyundai. The use of other spark plugs can result in loss of perfor- mance, radio interference or engine damage.
  • Page 144 G060C01S-AAT Changing the Spark Plugs Changing the Spark Plugs Changing the Spark Plugs Changing the Spark Plugs Changing the Spark Plugs HGK256 You will find it easier to change spark plugs if the engine is cold. Always change one spark plug at a time.

  • Page 145: Changing The Air Cleaner Filter

    To change the filter, unsnap the clips around the cover. When this is done, the cover can be lifted off, the old filter removed and the new filter put in its place. Genuine Hyundai Replacement Parts are recommended. CAUTION: CAUTION:...

  • Page 146: Checking The Transaxle Oil

    Section Recommended Oil Recommended Oil Recommended Oil Recommended Oil Recommended Oil Use only HYUNDAI GENUINE PARTS MTF 75W/90 (API GL-4) or equivalent in the manual transaxle. Manual Transaxle Oil Capacity Manual Transaxle Oil Capacity Manual Transaxle Oil Capacity...
  • Page 147 Hyundai dealer. The brakes should be Hyundai dealer. The brakes should be Hyundai dealer. The brakes should be Hyundai dealer. The brakes should be Hyundai dealer.

  • Page 148: Checking The Clutch Fluid

    "MAX" and "MIN" level markings on the fluid reservoir. Fill as required. Fluid loss indicates a leak in the clutch system which should be inspected and repaired imme- diately. Consult your Hyundai dealer. G130B02A-AAT To Replace the Fluid To Replace the Fluid...

  • Page 149: Air Conditioning Care

    Use very light finger pressure and be sensitive to changes in resistance that mark the limits of the free-play. If the free-play is greater than specified, have it inspected by your Hyundai dealer and adjusted or repaired if necessary. 6-13...
  • Page 150 This is the clutch pedal free-play. The free-play should be within the limits specified in the illustration. If it is not, have it inspected by your Hyundai dealer and adjusted or repaired if necessary. 6-14...

  • Page 151: Checking Drive Belts

    (This could be caused by a short in the system drawing too much current.) If this ever happens, have a Hyundai dealer determine the cause, repair the system and replace the fusible link. The fusible links are located in a relay box for easy inspection.

  • Page 152: Checking The Battery

    The fuse should be a snug fit. If it is not, have the fuse clip repaired or replaced by a Hyundai dealer. If you do not have a spare fuse, you may be...

  • Page 153: Proposition 65 Warning

    o If you swallow battery fluid, drink a large quantity of water or milk followed by milk of magnesia, eat a raw egg or drink vegetable oil. Get medical assistance as soon as possible. While batteries are being charged (either by a battery charger or by the vehicle's generator), they produce explosive gases.

  • Page 154: Power Steering Hoses

    YOUR HYUNDAI If you desire additional information about main- taining and servicing your Hyundai, you may purchase a factory Shop Manual at your Hyundai dealer's parts department. This is the same manual used by dealership technicians and while it is highly technical it can be useful in obtaining a better understanding of your car and how it works.

  • Page 155: Headlight Aiming Adjustment

    Horizontal aiming should be adjusted by an Horizontal aiming should be adjusted by an Horizontal aiming should be adjusted by an Horizontal aiming should be adjusted by an authorized Hyundai Dealer. authorized Hyundai Dealer. authorized Hyundai Dealer. authorized Hyundai Dealer.
  • Page 156 G280A02E-AAT (Low beam) (High beam) Part Name Head Light Front Fog Light Front Combination Light Side Marker Light Interior Map Light Room Light Front Door Edge Warning Light 6-20 DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE DO-IT-YOURSELF MAINTENANCE 4 DOOR Wattage 55/55 High Mounted Stop Light...

  • Page 157: Emission Control Systems

    In order to ensure the proper function of the emission control systems, it is recommended that you have your car inspected and main- tained by an authorized Hyundai dealer in ac- cordance with the maintenance schedule in this manual. EMISSION CONTROL SYSTEMS...
  • Page 158 Do not stop your Hyundai over any com- Do not stop your Hyundai over any com- Do not stop your Hyundai over any com-...

  • Page 159: Consumer Information & Reporting Safety Defects

    I020A01A-AAT TIRE INFORMATION TIRE INFORMATION TIRE INFORMATION TIRE INFORMATION TIRE INFORMATION The tires supplied on your new Hyundai are chosen to provide the best performance for normal driving. I030A02S-AAT RECOMMENDED INFLATION RECOMMENDED INFLATION RECOMMENDED INFLATION...
  • Page 160 Tires should be rotated every 7,500 miles (12,000 km). If you notice that tires are wearing unevenly between rotations, have the car checked by a Hyundai dealer so the cause may be corrected. After rotating, adjust the tire pressures and be sure to check the wheel nut torque.

  • Page 161: When To Replace Tires

    Wheels that do not meet Hyundai's di- Wheels that do not meet Hyundai's di- Wheels that do not meet Hyundai's di- Wheels that do not meet Hyundai's di- Wheels that do not meet Hyundai's di-...
  • Page 162 U.S. Department of Transportation. It provides the purchasers and/or prospective purchasers of Hyundai automobiles with infor- mation on uniform tire quality grading. Your Hyundai dealer will help answer any questions you may have as you read this information. I130B03A-AAT Uniform tire quality grading...
  • Page 163 CONSUMER INFORMATION & REPORTING SAFETY DEFECTS CONSUMER INFORMATION & REPORTING SAFETY DEFECTS CONSUMER INFORMATION & REPORTING SAFETY DEFECTS I130D01A-AAT Hyundai motor vehicles are designed and man- ufactured to meet or exceed all applicable safe- ty standards. For your safety, however, we strongly urge you...
  • Page 164 National High- way Traffic Safety Administration (NHTSA) in addition to notifying HYUNDAI MOTOR AMERICA. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.

  • Page 165: Vehicle Specifications

    9. 9. 9. 9. 9. VEHICLE SPECIFICA VEHICLE SPECIFICA VEHICLE SPECIFICA VEHICLE SPECIFICA VEHICLE SPECIFICATIONS J010A01E-AAT MEASUREMENT MEASUREMENT MEASUREMENT MEASUREMENT MEASUREMENT Overall length 177.5(4510 ) Overall width 67.7 (1720) Overall height (unladen) 56.1 (1425) Wheel base 102.8 (2610) Wheel tread Front 58.5 (1485) Rear...
  • Page 166 J070A04E-AAT ENGINE ENGINE ENGINE ENGINE ENGINE ITEMS Engine Type Idle Speed (RPM) Spark Plug CHAMPION Spark Plug Gap Valve Clearance For adjusting (Cold engine : 20±5°C) For checking Ignition Timing (Base) Firing Order Oil Grade VEHICLE SPECIFICATIONS VEHICLE SPECIFICATIONS VEHICLE SPECIFICATIONS VEHICLE SPECIFICATIONS VEHICLE SPECIFICATIONS 2.0 L...

  • Page 167: Lubrication Chart

    ILSAC GF-I SAE 5W-30, 5W-40 (BELOW 95°F or 38°C) AND ABOVE Transaxle HYUNDAI GENUINE PARTS MTF 75W/90 (API GL-4) Manual HYUNDAI GENUINE ATF, DIAMOND ATF SP-III, SK ATF SP-III Auto Power Steering PSF-3 Brake Fluid DOT 3, DOT 4 or equivalent...

  • Page 168: Index

    Consumer Information ... 8-4 Cooling Fans ... 6-17 Corrosion Protection Cleaning the interior ... 4-3 Protecting your Hyundai from corrosion ... 4-1 Washing and waxing ... 4-2 Cruise Control ... 1-52 ~ 1-54 D D D D D Defrosting/Defogging ... 1-57 Door Central door lock ...
  • Page 169 Driving Economical driving ... 2-9 ~ 2-10 Smooth cornering ... 2-10 Winter driving ... 2-10 E E E E E Emissions Control Systems ... 7-1 Engine Before starting the engine ... 2-2 Compartment ... 6-1 ~ 6-2 Coolant ... 6-5 Coolant temperature gauge ...
  • Page 170 K K K K K Keys ... 1-2 If you lose your keys ... 3-9 Positions ... 2-2 L L L L L Replacing Light Bulbs ... 6-18 Lubrication Chart ... 9-3 M M M M M Maintenance Intervals Explanation of scheduled maintenance items ... 5-6 ~ 5-8 Maintenance under severe usage conditions ...
  • Page 171 Snow tires ... 8-2 Spare tire ... 3-3 Traction ... 8-2 Towing A trailer (or vehicle) ... 2-12 Emergency ... 3-8 If your car must be towed ... 3-7 Traction Control System(TCS) ... 2-8 ~ 2-9 Transaxle Automatic ... 2-5 Automatic transaxle fluid checking ...
  • Page 172 Apply the parking brake, with the engine running, shift the selector lever through all ranges and return to "N" (Neutral) position. Then check the level of fluid on the dipstick. Use only HYUNDAI GENU- INE ATF available at your dealer, DIAMOND ATF SP-III or SK ATF SP-III.

Table of Contents

Save PDF
