Command Line - Lantronix SCS Reference Manual

Getting Started
From EZWebCon, select your device and choose Manage from the Actions menu.
OR
Type your SCS's IP address or resolvable text name into your web browser's URL/Location field.
Once you have connected and entered the login password (see Login Password on page 2-7), you can
configure important settings, view statistics, and update other Server information. Many of the
configurations discussed in this manual can be set using these web pages.
The on-board web browser can be disabled. See Set/Define Protocol HTTP on page 12-114 for more
information.

2.1.3 Command Line

To configure the SCS without EZWebCon or the web browser interface, you must enter configuration
commands at the command line. These commands should be entered when a port is in character mode,
which is when the Local> prompt is displayed.
To display the Local> prompt, do one of the following:
Connect a terminal to the serial console port and press the Return key until the prompt is displayed.
The default serial port parameters are 9600 baud, 8 data bits, 1 stop bit, no
Note:
parity, and XON/XOFF flow control.
Establish a Telnet, SSH, or Rlogin connection to the SCS from a TCP/IP host. See Establishing
Sessions on page 6-8 for more information.
In EZWebCon, select Telnet To Device from the Actions menu.

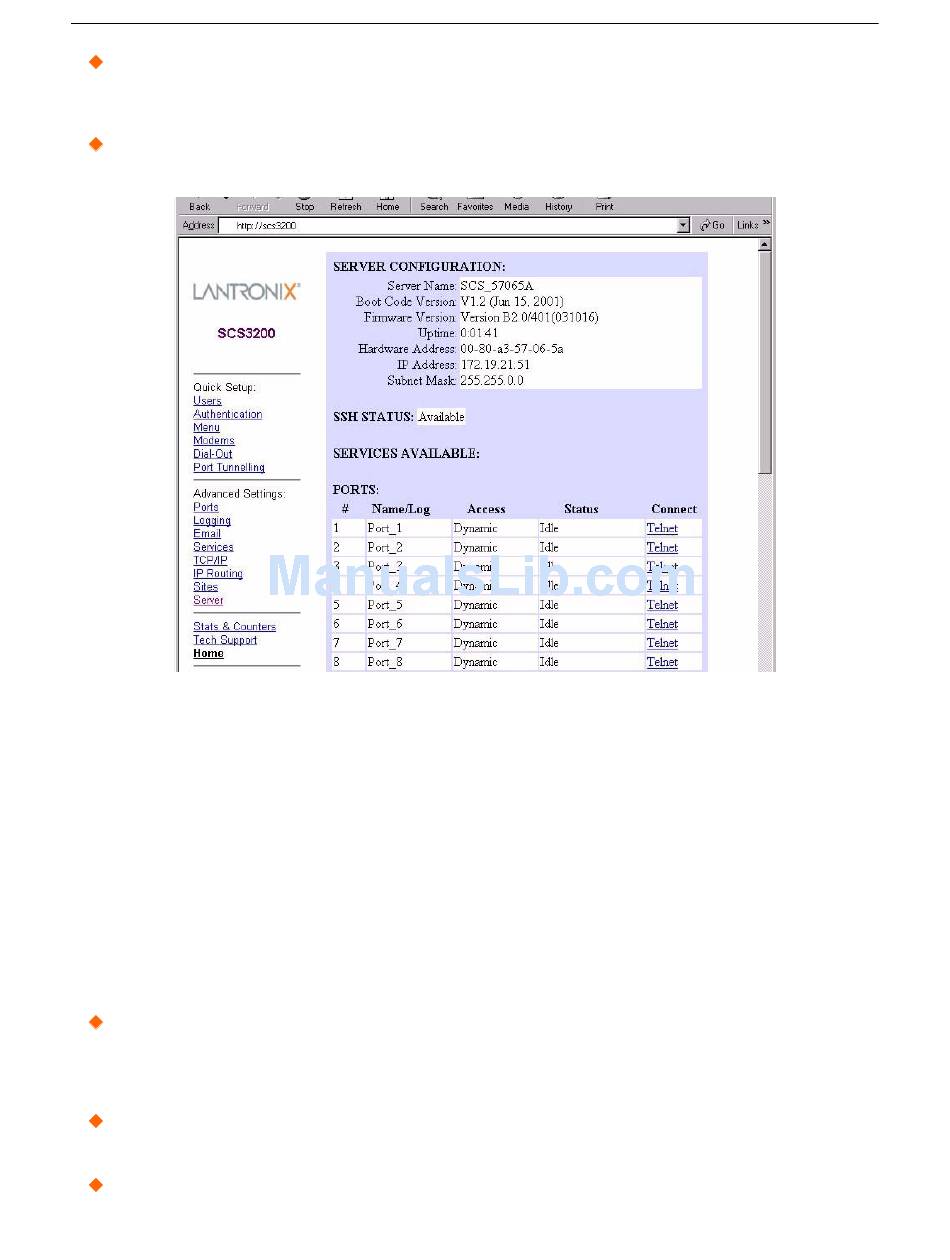

Figure 2-2: The Web Browser Interface
2-2
Configuration Methods
