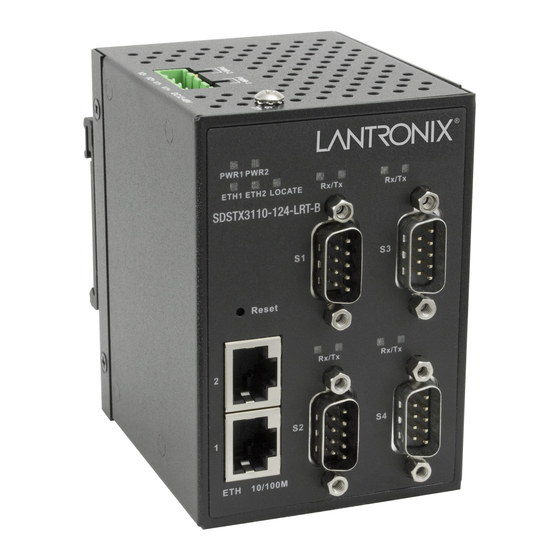

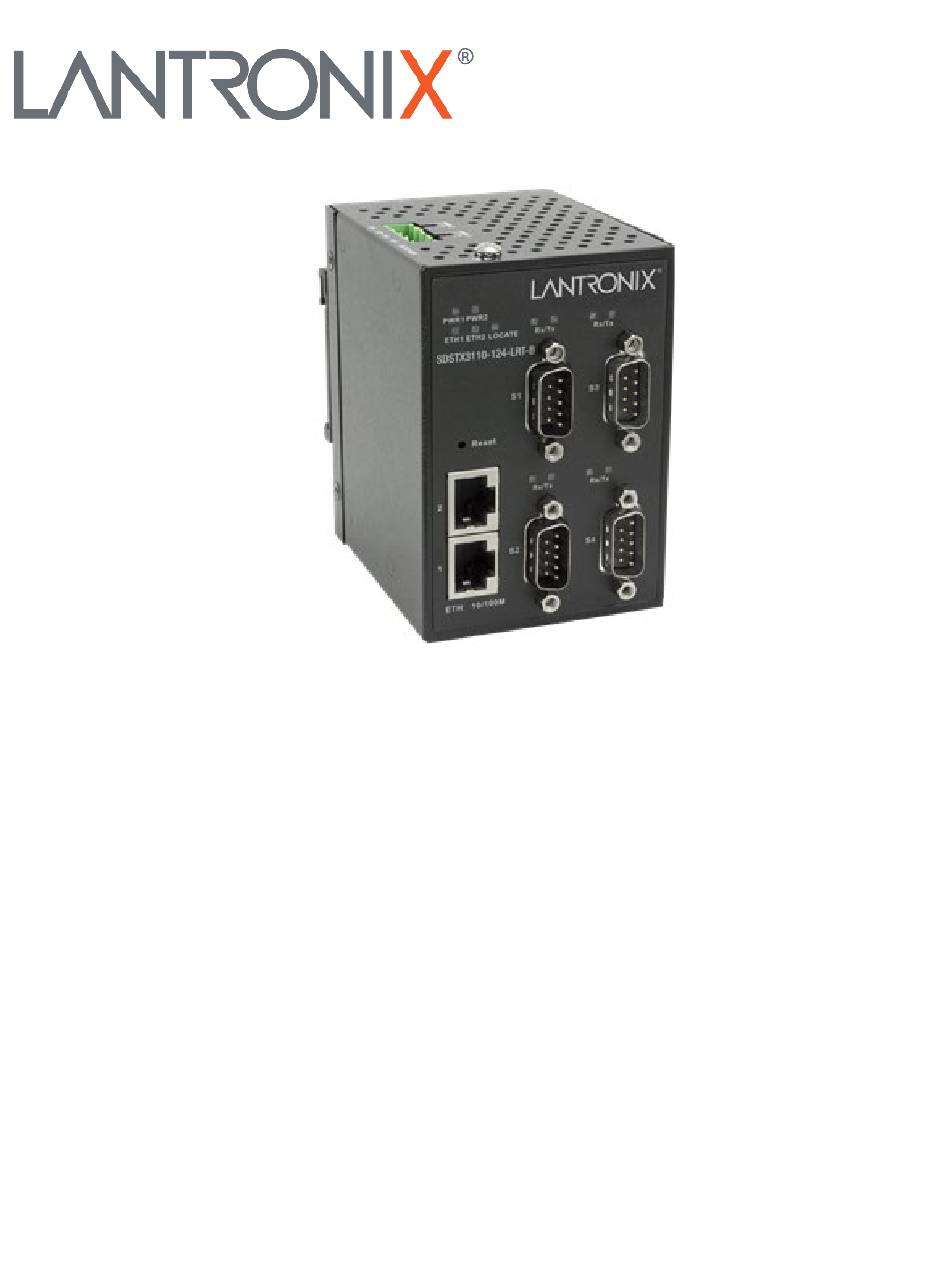

Lantronix serial device servers provide the ability to communicate serial data across an Ethernet network. The SDSTX3110-124-LRT-B contains (2) 10/100Base Fast Ethernet ports that can be configured to one or multiple redundant servers. It has four (4) DB9M Serial Ports.
Lantronix SDSTX3110-124-LRT-B User Guide 1.4 Dimensions 1.4.1 SDSTX3110-124-LRT-B Dimensions The SDSTX3110-124-LRT-B cabinet dimensions are provided below: • 66 (W) x 81 (D) x 95 (H) mm • 2-5/8 (W) x 3-1/4 (D) x 3-3/4 (H) inches 33686 Rev. C https://www.lantronix.com/...
Lantronix SDSTX3110-124-LRT-B User Guide 1.5 Pin Definitions 1.5.1 DB9 Connector The SDSTX3110-12x-LRT-B serial port can be connected using a DB9 cable. The DB9 connector supports RS232 / RS422 / RS485 operation modes. The table below provides the DB9 connector pin assignments.
Description Copper Ports 1 and 2 Two 10/100 Base-T(X) ports (ETH 10/100M) Serial Ports S1 - S4 Four DB9 Serial Ports (SDSTX3110-124-LRT-B) Press the front panel Reset button to re-load all of the factory default settings Reset button (Hardware reset).
Lantronix SDSTX3110-124-LRT-B User Guide 2.1.3 LED Descriptions Color Status Description PWR1/PWR2 Green Power is ON and function is normal. PWR2/PWR2 Green Power is OFF. ETH1/ETH2 Green Port is connected and running at 10 or 100Mbps. ETH1/ETH2 Green Port is not connected.
Lantronix SDSTX3110-124-LRT-B User Guide 2.3 Back Panel Below are the back panel components with the pre-installed DIN-rail kit removed: Below is the back panel shown with the pre-installed DIN-rail kit: 3. Hardware Installation 3.1 DIN-Rail Installation A DIN-Rail kit is pre-installed to let you fasten the device to a DIN rail. The dimensions are provided below.
Page 13
Lantronix SDSTX3110-124-LRT-B User Guide SDSTX3110-124-LRT-B Dimensions (in mm) 33686 Rev. C https://www.lantronix.com/...
Lantronix SDSTX3110-124-LRT-B User Guide 3.2 Wall Mounting The SDS can be fixed to the wall via the wall mount kit included in the package. The wall mount kit dimensions are provided below. To install the device on a panel or wall: 1: Remove the Din-Rail clip by removing the three screws.
Lantronix SDSTX3110-124-LRT-B User Guide 3.3 Rack Mounting The SDS can be rack mounted using the procedure below. 1. Install the provided L-shaped mounting brackets to the left and right sides of the device as shown below. 2. With the front brackets oriented in the front of the rack, mount the device in the rack with the four rack- mounting screws.
Lantronix SDSTX3110-124-LRT-B User Guide 3.4 Wiring 3.4.1 Grounding Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground pin on the power module to the grounding surface prior to connecting devices.
Lantronix SDSTX3110-124-LRT-B User Guide 3.5 Connection 3.5.1 10/100BASE-T(X) Pin Assignments Based on the link type, the device can use CAT 3, 4, 5, or 5e UTP cables to connect to any other network devices (PCs, servers, switches, routers, or hubs). See the table below for cable specifications.
Two versions of SDS Manager are available; one each to support to support 32-bit and 64-bit Windows systems. 1. Determine which version you require. 2. Download it from the Lantronix website: SDS Management Software zip file (e.g., filename SDS-Manager_x64_v1.5a_20160413.zip). 3. Unzip the Zip file (e.g., SDS-Manager_x64_v1.5a_20160413.exe).
Page 19
Lantronix SDSTX3110-124-LRT-B User Guide 4. Check either the Launch SDS-Manager Now checkbox or the Launch SDS-Manager Later checkbox. When you launch SDS-Manager, a confirmation message displays. 5. Click Yes to restart your computer to complete the installation, or select No and restart it later.
Lantronix SDSTX3110-124-LRT-B User Guide 4.1.2 SDS-Manager Overview SDS-Manager is an easy-to-use Windows utility for managing one or many Serial Device Servers. A Serial Device Server provides a transparent serial gateway to Ethernet without modifying existing COM port control programs. Major SDS Manager functions include Configuration: To configure device and serial ports; Monitor: To monitor device and port status;...
Lantronix SDSTX3110-124-LRT-B User Guide 4.1.3 Using SDS-Manager Screen Elements File File > New SDS-Manager: File > Load SDS-Manager: at the dialog box, select a file to load and click Open. File > Save SDS-Manager: at the dialog box, select a file to load and click Save.
Lantronix SDSTX3110-124-LRT-B User Guide File > Group Firmware Wizard: helps you to update firmware for a group of devices. STEP 1. Select the device model. STEP 2. Select the target devices. STEP 3. Select the new firmware. STEP 4. Go.
Page 23
Lantronix SDSTX3110-124-LRT-B User Guide Search for and Discover Serial Device Servers Click the Broadcast button or navigate to the Device Configuration > Broadcast Search menu path. SDS-Manager will broadcast to the network and search for all available SDS devices on the network automatically. The default IP address of the device is 192.168.1.77.
Lantronix SDSTX3110-124-LRT-B User Guide 4.1.4 Configure Device Servers This section shows and describes each of the tabs and related parameters. Navigate to a device (e.g., SDS Manager > Device List > 192.168.1.74) to display a page with tabs for configuring General, Security, Ethernet, General tab Notifications, Management, Upgrade Firmware, and Save/Load parameters.
Page 25
Lantronix SDSTX3110-124-LRT-B User Guide Security tab This page lets you set up access IP tables for your device to allow authorized and deny authorized access, thereby ensuring data security and facilitating device management. Label Description You can enter the host IP addresses and network masks to prevent Access IP Table unauthorized access.
Page 26
Lantronix SDSTX3110-124-LRT-B User Guide Ethernet tab This page lets you assign the required IP address for the device before it is attached to your network. Your network admin should provide the IP address and related settings. The IP address must be unique within the network (otherwise a valid network connection can’t be made).
Page 27
Lantronix SDSTX3110-124-LRT-B User Guide Notification tab This page lets you specify the events that should be forwarded to the administrator. The events can be sent by E-mail, SNMP trap, or Syslog. Status information can be sent to the administrator via Email, SNMP trap, or Syslog.
Page 28
Lantronix SDSTX3110-124-LRT-B User Guide IP Changed: Changing the network setting will trigger the event. Password Changed: Changing the Password will trigger the event. Access IP Blocked: Report blocked IP addresses. You can specify the Server IP address and Port, or click the Using Current Host’s System Log settings Log Server button to specify the current host as the log server.
Page 29
Lantronix SDSTX3110-124-LRT-B User Guide Management tab This page lets you perform management functions using various interfaces (the Web, Telnet, and SNMP). Label Description Check the box to enable management from the web. Click the Goto Web Management Enable Web Management button to access the web.
Page 30
Upgrade Firmware tab This page lets you upgrade the device firmware from the Lantronix website. To update device firmware, save the file to your host PC, and then specify the file location by clicking the Browsing button, specifying the location, and then clicking the Upgrade button.
Page 31
Lantronix SDSTX3110-124-LRT-B User Guide Save/Load tab This page lets you save the current config file to a local drive or network location to which your management computer can connect. Label Description Click the “Apply and Save” button to save all applied settings into the Save Configuration to Flash flash memory of the device.
Lantronix SDSTX3110-124-LRT-B User Guide 4.1.5 Configure Serial Port You can configure the settings for each serial port by clicking on the port number in the left pane of the window. When you click on a port in the left pane, the screen below displays in the right panel.
Page 33
Lantronix SDSTX3110-124-LRT-B User Guide Serial Settings This page lets you configure serial port parameters, serial communications modes, data packing options, and event notifications. Label Description Enables the device to easily identify the serial devices connected to it. Port Alias Enter an identifying name to be identified by the connected device.
Page 34
Lantronix SDSTX3110-124-LRT-B User Guide Label Description Choose the number of bits used to indicate the end of a byte. You can configure data bytes to be 1 or 2(1.5). If stop bits is 1.5, the stop bit is Stop Bits transferred for 150% of the normal time used to transfer on bit.
Lantronix SDSTX3110-124-LRT-B User Guide 4.2 Service Mode 4.2.1 Virtual COM Mode In Virtual COM Mode, the driver establishes a transparent connection between a host and the serial device by mapping the port of the serial server serial port to a local COM port on the host computer. Virtual COM Mode supports up to five simultaneous connections, so that multiple hosts can send or receive data by the same serial device at the same time.
Page 36
Lantronix SDSTX3110-124-LRT-B User Guide The number of max connections can be supported simultaneously is Max Connections 5; default value is 1. Destination Host Displays one to four connected destination hosts. Displays the related VCOM name, or a message like Waiting for VCOM Name VCOM connect.
Lantronix SDSTX3110-124-LRT-B User Guide 4.2.2 TCP Server Mode In TCP Server Mode, the serial port on the device server is assigned a unique port number. The host computer initiates contact with the device server, establishes the connection, and receives data from the serial device.
Page 38
Lantronix SDSTX3110-124-LRT-B User Guide Up to 5 connections can be supported simultaneously; the default value is 1. Max Connections Destination Host Input the IP address of one to five destination hosts. Disconnect Click to disconnect a connected destination host. 33686 Rev. C...
Lantronix SDSTX3110-124-LRT-B User Guide 4.2.3 TCP Client Mode In TCP Client mode, the device can establish a TCP connection with the server by the method you have settled (Startup or any character). After the data has been transferred, the device can disconnect automatically from the server by using the TCP alive check time or idle time settings.
Page 40
Lantronix SDSTX3110-124-LRT-B User Guide Auto Scan Click the button to scan for the listening port number of the device. Multilink Destination Host Enter the Multilink Destination Host IP address. Multilink Port Enter the Multilink Port number. 33686 Rev. C https://www.lantronix.com/...
Lantronix SDSTX3110-124-LRT-B User Guide 4.2.4 UDP Mode Compared to TCP communication, UDP is faster and more efficient, as you can unicast or multicast data from the serial device server to host computers; the serial device server can also receive data from one or multiple hosts.
Page 42
Lantronix SDSTX3110-124-LRT-B User Guide Message: Warning UDP mode’s ‘Port’ is in used on Device. Meaning: You tried to configure the same UDP Listening or UDP Sending port number for two instances. Recovery: 1. Click the OK button to clear the Warning dialog. 2. Change a UDP port number.
Lantronix SDSTX3110-124-LRT-B User Guide 4.2.5 VCOM List The VCOM List page displays read-only information (Number, VCOM, Settings, Device Name, MAC address, and status), and provides a button to Select Monitor Items. The VCOM List > COMx > Serial Settings tab displays Link Information and current serial device settings (Baudrate, Stop Bits, Parity, Flow Control, Data Bits, and Interface selections).
Lantronix SDSTX3110-124-LRT-B User Guide 4.2.6 Setup Wizard The Setup Wizard page displays all of the wizards available: Virtual COM Wizard, Serial Tunnel Wizard, Group IP Wizard, Group Setup Wizard, and Group Firmware Wizard. 4.2.8 IP Collection The IP Collection page displays automatically collected IP address, device name, model, last report of devices by a defined time interval.
Lantronix SDSTX3110-124-LRT-B User Guide 4.3 Web Management The SDS can be managed via a built-in webserver running Internet Explorer v 5.0 or above or other web browsers such as Chrome. This allows simple, remote device monitoring and configuration, such as firmware upgrades.
Lantronix SDSTX3110-124-LRT-B User Guide 4.3.2 System 4.3.2.1 Time (SNTP) The SNTP (Simple Network Time Protocol) lets you synchronize the time on your system to the time on the Internet. SNTP will synchronize your computer system time with a server that has already been synchronized by a source such as a radio, satellite receiver, or modem.
Page 47
Lantronix SDSTX3110-124-LRT-B User Guide The table below lists various location time zones: Label Conversion from UTC Time at 12:00 UTC November Time Zone - 1 hour 11 am Oscar Time Zone -2 hours 10 am ADT - Atlantic Daylight -3 hours...
Page 48
Lantronix SDSTX3110-124-LRT-B User Guide 4.3.2.2 IP Configuration This page lets you configure IP settings for your device. You can assign an IP address manually or leave it to DHCP/BOOTP servers which will reply with an automatically generated IP address and subnet mask for the device when they receive the request.
Page 49
Lantronix SDSTX3110-124-LRT-B User Guide 4.3.2.3 User Authentication This page lets you change your password. Label Description User Name Enter the default User Name (root in lower case). Old Password Enter the existing password that is used to log in. New Password Enter a new password that will be used to log in.
Description Port number dropdown to select Port 1 or Port 1 - Port 4, depending on your Port Model (SDSTX3110-124-LRT-B shown above). Port Alias Enter the port number that modem is connected to. Choose an interface for your serial device. Available interfaces include...
Page 51
Lantronix SDSTX3110-124-LRT-B User Guide Label Description Space: the last transmitted data bit will always be a logical 0 Serial communication consists of hardware flow control and software flow control, so called as the control is handled by software or hardware.
Page 52
Description Port number dropdown to select Port 1 or Port 1 - Port 4, depending on your Port Model (SDSTX3110-124-LRT-B shown above). The TCP port the device uses to listen to connections, and that other devices Local TCP Port must use to contact the device. To avoid conflicts with well known TCP ports, the default is set to 4006.
Page 53
Lantronix SDSTX3110-124-LRT-B User Guide 4.3.2.3 Service Mode In Virtual COM Mode, the driver establishes a transparent connection between the host and the serial device by mapping the port of the serial server to a local COM port on the host computer. Virtual COM Mode also supports up to 5 simultaneous connections, so that multiple hosts can send or receive data by the same serial device at the same time.
Lantronix SDSTX3110-124-LRT-B User Guide 4.4.1 TCP Server Mode In TCP Server Mode, the SDS Manager is configured with a unique port combination on a TCP/IP network. In this case, DS waits passively to be contacted by the device. After the device establishes a connection with the serial device, it can then proceed with data transmission.
Lantronix SDSTX3110-124-LRT-B User Guide 4.4.2 TCP Client Mode In TCP Client Mode, the device can establish a TCP connection with the server by the method you set (Startup or Any Character). After the data has been transferred, the device can disconnect automatically from the server by using the TCP alive check time or idle timeout settings.
Lantronix SDSTX3110-124-LRT-B User Guide 4.4.3 UDP Mode Compared to TCP communication, UDP is faster and more efficient. In UDP mode, you can uni-cast or multi-cast data from the serial device server to host computers, and the serial device can also receive data from one or multiple hosts.
Lantronix SDSTX3110-124-LRT-B User Guide 4.4.4 Management 4.4.4.1 Access IP Control The Access IP Control List lets you add host IP addresses to prevent unauthorized access. If a host’s IP address is in the accessible IP table, the host will be allowed to access the SDS Manager.
Page 58
Lantronix SDSTX3110-124-LRT-B User Guide 4.4.4.2 SMTP/SNMP Configuration Email Server configurations include the mail server’s IP address or domain. If authentication is required, you must specify your username and password. You can set up to four email addresses for receiving notifications.
Page 59
Lantronix SDSTX3110-124-LRT-B User Guide Label Description My server requires Checkbox to check if an authentication is wanted. authentication Enter a user name if the My server requires authentication checkbox is User Name checked. Enter a password if the My server requires authentication checkbox is Password checked.
Page 60
Lantronix SDSTX3110-124-LRT-B User Guide 4.4.4.3 System Event Configuration Specify the events that are to be reported to the administrator. The notification of events can be done via e-mail, SNMP trap, and/or system log. Label Description This refers to starting the system from power off (in contrast with warm start).
Page 61
Lantronix SDSTX3110-124-LRT-B User Guide Label Description In TCP Server Mode, when the device accepts an incoming TCP connection, this event will be triggered. In TCP Client Mode, when the device has connected to the remote host, the event will be Port Connected triggered.
Lantronix SDSTX3110-124-LRT-B User Guide 4.4.5 Factory Default / Restore Config / Upgrade Firmware / Reboot The Save/Reboot menu path lets you: • Reset to the SDS to its Factory Defaults, Save current values from the device as a backup file, •...
Page 63
Lantronix SDSTX3110-124-LRT-B User Guide Factory Default This page lets you reset the SDS device to the factory default configuration. 1. Navigate to the Save/Reboot menu path. 2. Click the Reset button to reset all configurations to their default values. 3. At the prompt click the Reboot button.
Page 64
Lantronix SDSTX3110-124-LRT-B User Guide Restore Configuration You can restore the previous saved configuration to Device Server. File to restore: 1. Navigate to the Save/Reboot menu path. 2. Click the Restore button. 3. At the webpage message (Please choose a config file to import!) click the OK button.
Page 65
Lantronix SDSTX3110-124-LRT-B User Guide Backup Configuration You can save current EEPROM value from the Device Server as a backup file of configuration. 1. Navigate to the Save/Reboot menu path. 2. Click the Backup button. A message displays (e.g., Do you want to open or save export.conf from 192.168.1.77?).
Page 66
Lantronix SDSTX3110-124-LRT-B User Guide Upgrade Firmware Specify the firmware image to upgrade. Note: Please DO NOT power off this device while upgrading firmware. Firmware: 1. Navigate to the Save/Reboot menu path. 2. Click the Upgrade button. 3. Browse to and select the upgrade file.
Page 67
Lantronix SDSTX3110-124-LRT-B User Guide Reboot Device Please click [Reboot] button to restart device. 1. Navigate to the Save/Reboot menu path. 2. Click the Reboot button to reset all configurations to their default values. 3. At the prompt click the Reboot button.
20 seconds. The initial SSH console interface is shown below. login as: root root@192.168.1.77's password: root ***************************************** *** Lantronix Industrial Serial Device Server Commander *** ***************************************** ----------------------------------------- 1. Overview 2. General Settings 3. Network Settings 4. Ports settings 5. Security(Accessible IP) Settings 6.
Page 69
Lantronix SDSTX3110-124-LRT-B User Guide 1. Overview Displays an overview of the device information: Select one function (0-9,A,C,L,S,R,Q): ----------------------------------------- [Overview] Model Name : SDSTX3110-124-LRT-B MAC Address : 00-c0-f2-5a-54-c8 Firmware Version : Device name : DeviceServer-DEFAULT 2. General Settings Press ENTER to continue.
Page 70
Lantronix SDSTX3110-124-LRT-B User Guide 4. Port: select 4 and enter the new port number. Select one function (1-8,Q): 4 ----------------------------------------- [SNTP time Server port] Input new port number or (Q)uit: 5. Time Zone: select 5 and select the desired time zone.
Page 71
Lantronix SDSTX3110-124-LRT-B User Guide 3. Network Settings Displays current network settings: Select one function (0-9,A,C,L,S,R,Q): ----------------------------------------- <Network Setting> 1. IP configuration Static 2. IP address 192.168.1.77 3. Netmask 255.255.255.0 4. Gateway 192.168.1.254 5. DNS server 1 192.168.1.254 6. DNS server 2 A.
Page 72
Lantronix SDSTX3110-124-LRT-B User Guide 4. Gateway: Select one function (1-9,A,R,Q): ----------------------------------------- [Gateway address] Input new Gateway address or (Q)uit: 192.168.1.254 5. DNS server 1 Select one function (1-9,A,R,Q): ----------------------------------------- [DNS server 1] Input new DNS server 1 address or (Q)uit: 192.168.1.254...
Page 73
Lantronix SDSTX3110-124-LRT-B User Guide 8. To TCP port Set "To IP" first Select one function (1-9,A,R,Q): ----------------------------------------- [set Auto report IP] Input new IP address device auto report to or (Q)uit: 192.168.1.30 ----------------------------------------- <Network Setting> 1. IP configuration Static 2. IP address 192.168.1.77...
Page 74
Lantronix SDSTX3110-124-LRT-B User Guide 4. Ports settings Displays the set of ports available: Select one function (0-9,A,C,L,S,R,Q): ----------------------------------------- [Ports setting] 1. port1 (Port1) 2. port2 (Port2) 3. port3 (Port3) 4. port4 (Port4) Q. Exit Select port or (Q)uit: Select one function (0-9,A,C,L,S,R,Q): 4...
Page 75
Lantronix SDSTX3110-124-LRT-B User Guide 1. Serial Settings: * Please select (A)"Apply Settings" after changed your settings Select one function (1-3,A,R,Q): ----------------------------------------- [Serial Setting] <port2> 1. Port Alias: Port2 2. Baudrate: 38400 6. Stop Bits: 1STOPBIT 3. Parity: No Parity 7. Flow Ctrl: No Flow 4.
Page 76
Lantronix SDSTX3110-124-LRT-B User Guide 5. Security(Accessible IP) Settings Displays access IP settings: Select one function (0-9,A,C,L,S,R,Q): ----------------------------------------- [Access IP Setting] IP Address Netmask IP-1 IP-2 IP-3 IP-4 IP-5 IP-6 IP-7 IP-8 IP-9 10. IP-10 11. IP-11 12. IP-12 13. IP-13 14.
Page 77
Lantronix SDSTX3110-124-LRT-B User Guide 6. Notification(Auto Warning) Settings Displays notification settings: Select one function (0-9,A,C,L,S,R,Q): ----------------------------------------- [Notification Settings] 1. SNMP Trap setting 2. Email Notification settings 3. System Log setting Q. Exit Select one function (1-3, Q): 1. SNMP Trap setting...
Page 78
Lantronix SDSTX3110-124-LRT-B User Guide 2. Email Notification settings Select one function (1-3, Q): ----------------------------------------- [Email Notification settings] <SMTP server> A. Server Address : B. Server Port : <E-mail list> S. E-mail list Settings <Event Type> 1. Cold start Disable 2. Warm start Disable 3.
Page 79
Lantronix SDSTX3110-124-LRT-B User Guide c. Change Password Displays the option to change passwords: Select one function (0-9,A,C,L,S,R,Q): ----------------------------------------- [Change Password] L. Load Factory Defaults Input old password: Displays the option to load the factory default settings: Select one function (0-9,A,C,L,S,R,Q):...
Lantronix SDSTX3110-124-LRT-B User Guide 4.6 Uninstall SDS Manager 1. Exit the SDS-Manager if it is currently running. 2. Navigate to the install location (e.g., C:\Program Files (x86)\SDS-Manager) and double click the uninstall.exe icon. 3. Answer any prompts. Messages Message: Warning SDS-Manager is running. Please Close it, then do uninstall.
Page 81
Lantronix SDSTX3110-124-LRT-B User Guide Message: This program might not have installed correctly Meaning: Windows “Program Compatibility Assistant” message. Recovery: 1. Try clicking the Reinstall using recommended settings option and follow the online instructions. 2. Click the Cancel button and locate the installer.exe icon and right-click on it to display its Properties.
Lantronix SDSTX3110-124-LRT-B User Guide Power Supply Specifications Power supply options are PN 25130 and PN 25135. Specs are provided below (subject to change). 25130 Features and Specifications Features Variable AC input range • Protected against Overload and Over Voltage •...
Lantronix SDSTX3110-124-LRT-B User Guide 25135 Features and Specifications Features Universal AC input range • Protected against Overload and Over Voltage • Convection air cooling • DIN Rail mountable • UL 508 approved • Full load burn in test • •...
Page 86
Lantronix SDSTX3110-124-LRT-B User Guide Certifications Safety: UL508, TUV EN60950-1, NEC Class 2/LPS EMC Emissions: EN55011, EN55022, CISPR22, EN61204-3 Class B, EN61000-3-2, EN61000-3-3 EMC Immunity: EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11, EN55024, EN61000-6-1, EN61204-3 A IEC60068-2-6 (Vibration) 25135 Dimensions 33686 Rev. C...
Lantronix SDSTX3110-124-LRT-B User Guide Troubleshooting This section lists some common problems, their causes, and potential recovery steps. Note that any unauthorized repairs or modifications will void the SDS warranty. 6.1 FAQs Q1. What is meant by “5 x redundant hosts”? Does it mean 5 x serial port device? A1.
Lantronix SDSTX3110-124-LRT-B User Guide 6.2 Procedure If the SDS device fails, isolate and correct the failure by performing the following steps. 1. If the SDS does not turn on and no LEDs light, then the SDS or the power source may be damaged, or the SDS does not have power.
Describe any action(s) already taken to resolve the problem (e.g., change switch mode, reboot, etc.): ______________________________________________________________________________________ ______________________________________________________________________________________ The serial # and revision # of each involved Lantronix product in the network: _____________________________________________________________________________________ _____________________________________________________________________________________ 4. Describe your network environment (layout, cable type, etc.): ___________________________________...
Lantronix SDSTX3110-124-LRT-B User Guide 6.4 Package and Device Labeling Record information from the SDS package label and device S/N label: 33686 Rev. C https://www.lantronix.com/...
Lantronix SDSTX3110-124-LRT-B User Guide Safety and Compliance Information 7.1 Compliance Information FCC Regulations NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Anyone using this product in such an application without express written consent of an officer of Lantronix does so at their own risk and agrees to fully indemnify Lantronix for any damages that may result from such use or sale.
Lantronix SDSTX3110-124-LRT-B User Guide 7.3 Electrical Safety Warnings Electrical Safety IMPORTANT: This equipment must be installed in accordance with safety precautions. Elektrische Sicherheit WICHTIG: Für die Installation dieses Gerätes ist die Einhaltung von Sicherheitsvorkehrungen erforderlich. Elektrisk sikkerhed VIGTIGT: Dette udstyr skal 93nstallers I overensstemmelse med sikkerhedsadvarslerne.
Page 94
Irvine, CA 92618, USA Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Online: http://www.transition.com/support. Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. 33686 Rev. C https://www.lantronix.com/...
