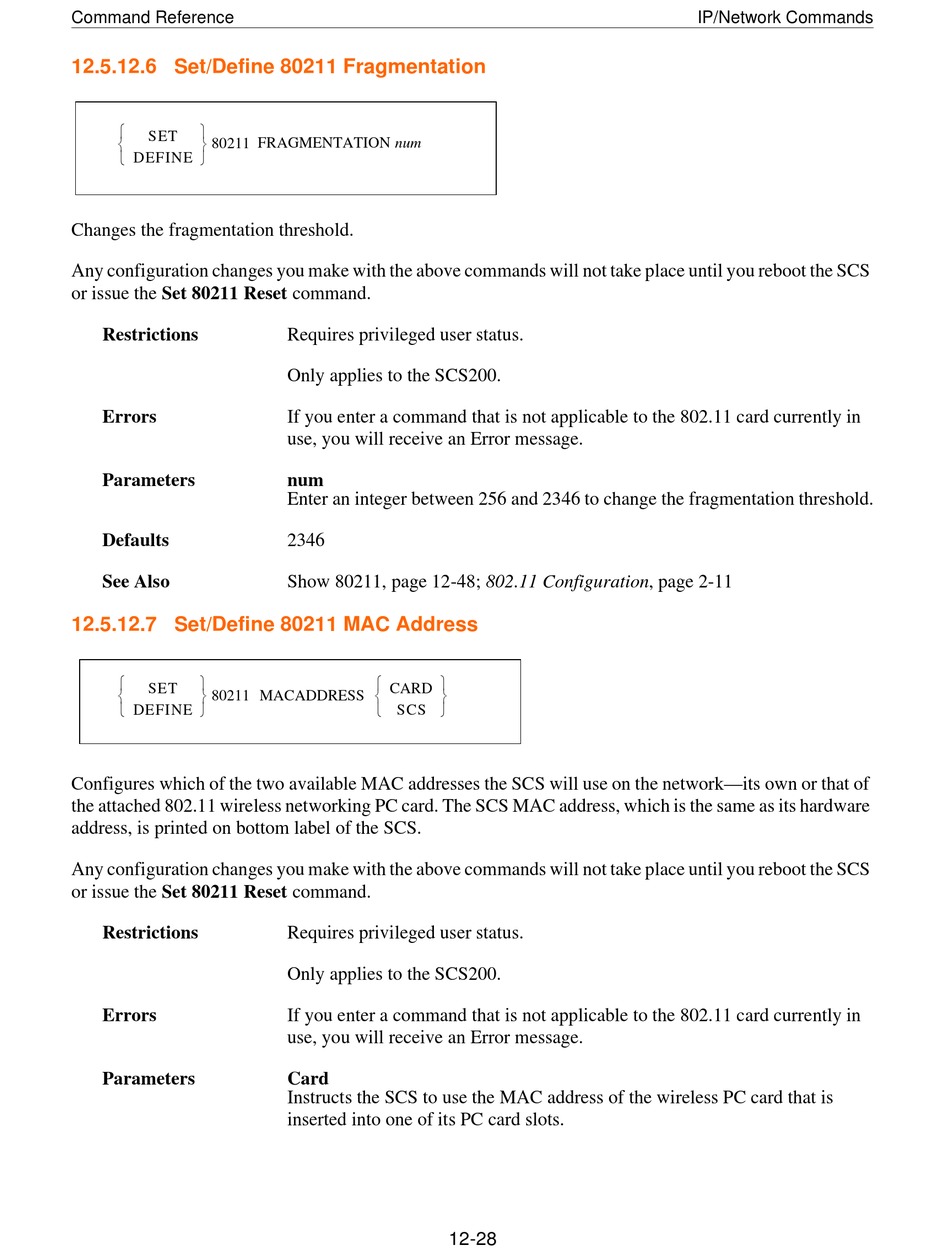

Lantronix SCS Reference Manual page 232

Command Reference
12.5.12.6 Set/Define 80211 Fragmentation
⎧ ⎫
SET
⎨ ⎬
80211 FRAGMENTATION num
⎩ ⎭
DEFINE
Changes the fragmentation threshold.
Any configuration changes you make with the above commands will not take place until you reboot the SCS
or issue the Set 80211 Reset command.
Restrictions
Errors
Parameters
Defaults
See Also
12.5.12.7 Set/Define 80211 MAC Address
⎧ ⎫
SET
⎨ ⎬
80211 MACADDRESS
⎩ ⎭
DEFINE
Configures which of the two available MAC addresses the SCS will use on the network—its own or that of
the attached 802.11 wireless networking PC card. The SCS MAC address, which is the same as its hardware
address, is printed on bottom label of the SCS.
Any configuration changes you make with the above commands will not take place until you reboot the SCS
or issue the Set 80211 Reset command.
Restrictions
Errors
Parameters
Requires privileged user status.
Only applies to the SCS200.
If you enter a command that is not applicable to the 802.11 card currently in
use, you will receive an Error message.
num
Enter an integer between 256 and 2346 to change the fragmentation threshold.
2346
Show 80211, page 12-48; 802.11 Configuration, page 2-11
⎧ ⎫
CARD
⎨ ⎬
⎩ ⎭
SCS
Requires privileged user status.
Only applies to the SCS200.
If you enter a command that is not applicable to the 802.11 card currently in
use, you will receive an Error message.
Card
Instructs the SCS to use the MAC address of the wireless PC card that is
inserted into one of its PC card slots.
12-28
IP/Network Commands
