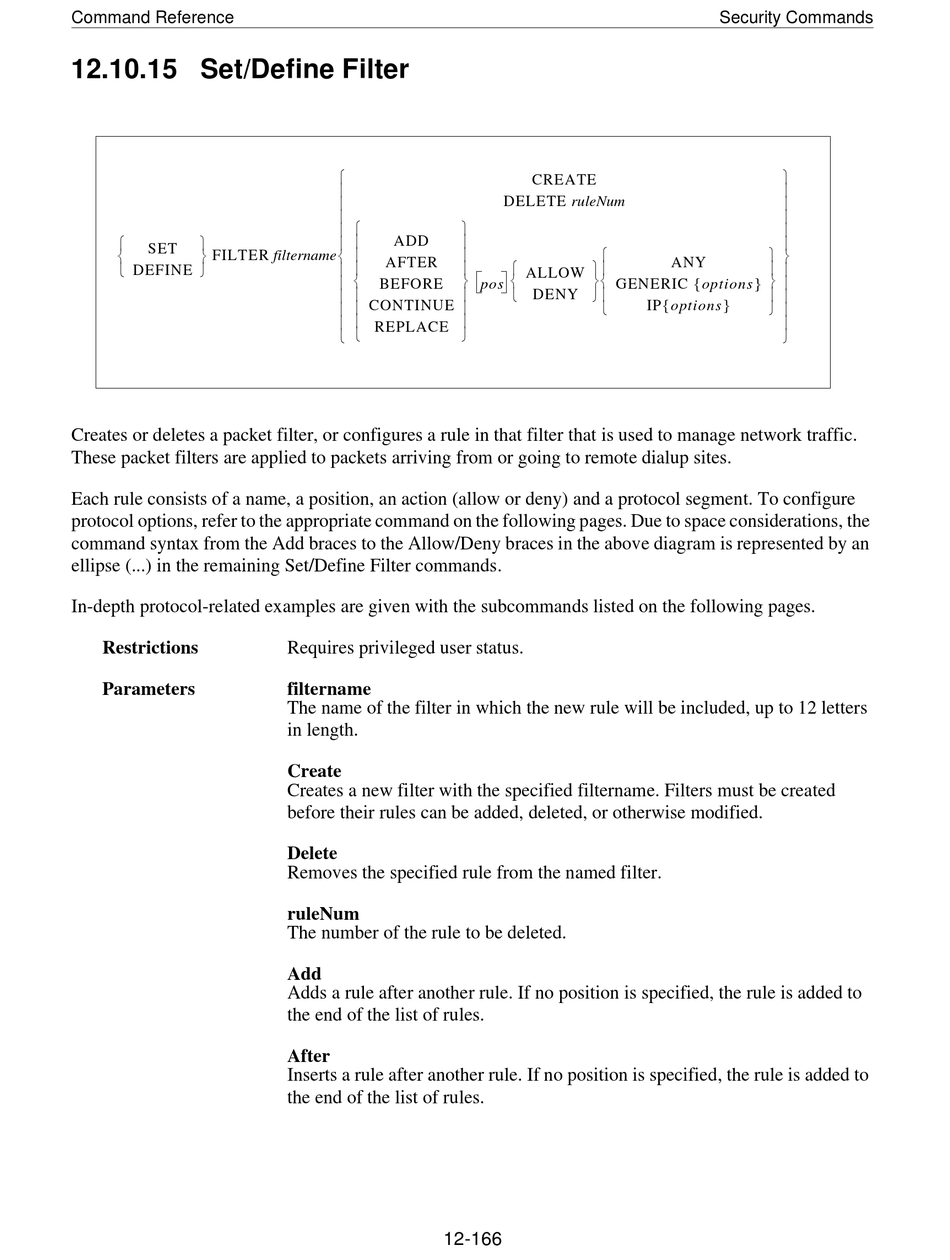

12.10.15 Set/Define Filter

⎧ ⎫
SET
⎨ ⎬
FILTER filtername
⎩ ⎭
DEFINE
Creates or deletes a packet filter, or configures a rule in that filter that is used to manage network traffic.
These packet filters are applied to packets arriving from or going to remote dialup sites.
Each rule consists of a name, a position, an action (allow or deny) and a protocol segment. To configure
protocol options, refer to the appropriate command on the following pages. Due to space considerations, the
command syntax from the Add braces to the Allow/Deny braces in the above diagram is represented by an
ellipse (...) in the remaining Set/Define Filter commands.
In-depth protocol-related examples are given with the subcommands listed on the following pages.
Restrictions
Parameters
⎧
⎪
⎪
⎪
⎧ ⎫
⎪
⎪ ⎪
⎪
ADD
⎪ ⎪
⎨
AFTER
⎪ ⎪
⎪
⎨ ⎬
⎪
BEFORE
⎪ ⎪
⎪
⎪ ⎪
⎪ CONTINUE
⎪ ⎪
⎪
REPLACE
⎩ ⎭
⎩
Requires privileged user status.
filtername
The name of the filter in which the new rule will be included, up to 12 letters
in length.
Create
Creates a new filter with the specified filtername. Filters must be created
before their rules can be added, deleted, or otherwise modified.
Delete
Removes the specified rule from the named filter.
ruleNum
The number of the rule to be deleted.
Add
Adds a rule after another rule. If no position is specified, the rule is added to
the end of the list of rules.
After
Inserts a rule after another rule. If no position is specified, the rule is added to
the end of the list of rules.
12-166
CREATE
DELETE ruleNum
⎧
⎧ ⎫ ⎪
ALLOW
⎨ ⎬ ⎨
pos GENERIC options
⎩ ⎭ ⎪
DENY
⎩
IP options
Security Commands
⎫
⎪
⎪
⎪
⎪
⎪
⎫
⎬
ANY
⎪
⎪
⎬
{ } ⎪
⎪
⎪
{ }
⎭
⎪
⎪
⎭
