Input Connections (Inp2); Input Connections (Ed2/Ed3) - Planmeca ProMax 3D Max with ProTouch Technical Manual

2 User interface

2.7.1 Input connections (INP2)

2.7.2 Input connections (Ed2/Ed3)

74 Planmeca ProMax 3D Max

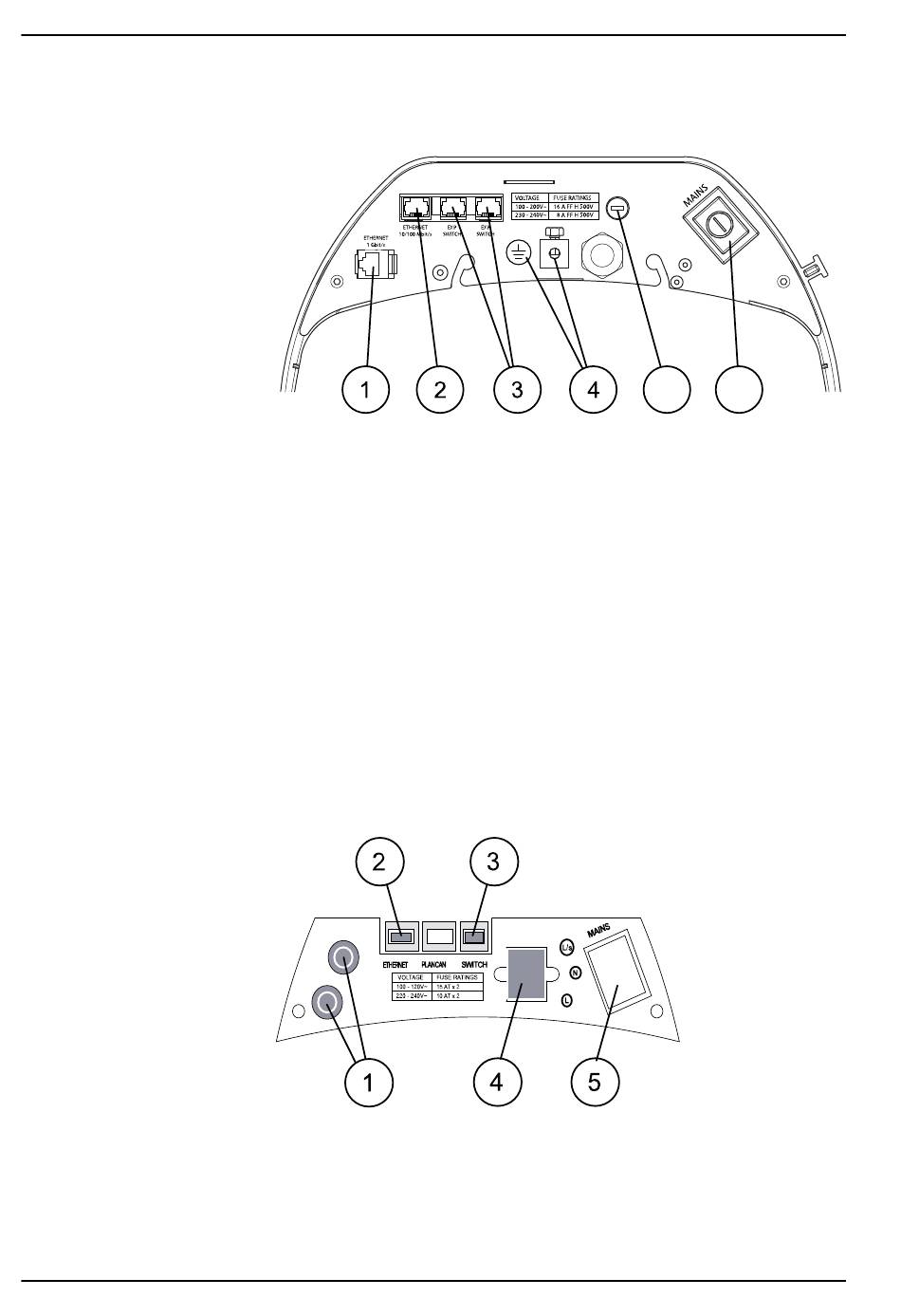

The following image shows the different inputs available on the underside of
the fixed column top with INP2 connection.
1 Ethernet port (1 Gbit/s), not in use (blocked) in Planmeca ProMax
X-ray units
2 Ethernet port (10/100 Mbit/s), not in use (blocked) in Planmeca Viso
X-ray units
3 Exposure switch ports
4 Protective earth grounding (with label)
5 Fuse
6 Mains power button
NOTE
If the grounding cable's cross-section is greater than 2.5 mm
connector (4 in the image above). Otherwise, connect the grounding cable
as part of the main power installation.
The following image shows the different inputs available on the underside of
the fixed column with input connection type Ed2/Ed3.
1 Fuses
2 Ethernet port (10/100 Mbit/s)
3 Exposure switch port
4 Power cable, either detachable or permanently installed
5 Mains power button
5 6
2
, use the
