5 Panoramic and 3D calibrations
About this task
Steps
150 Planmeca ProMax 3D Max

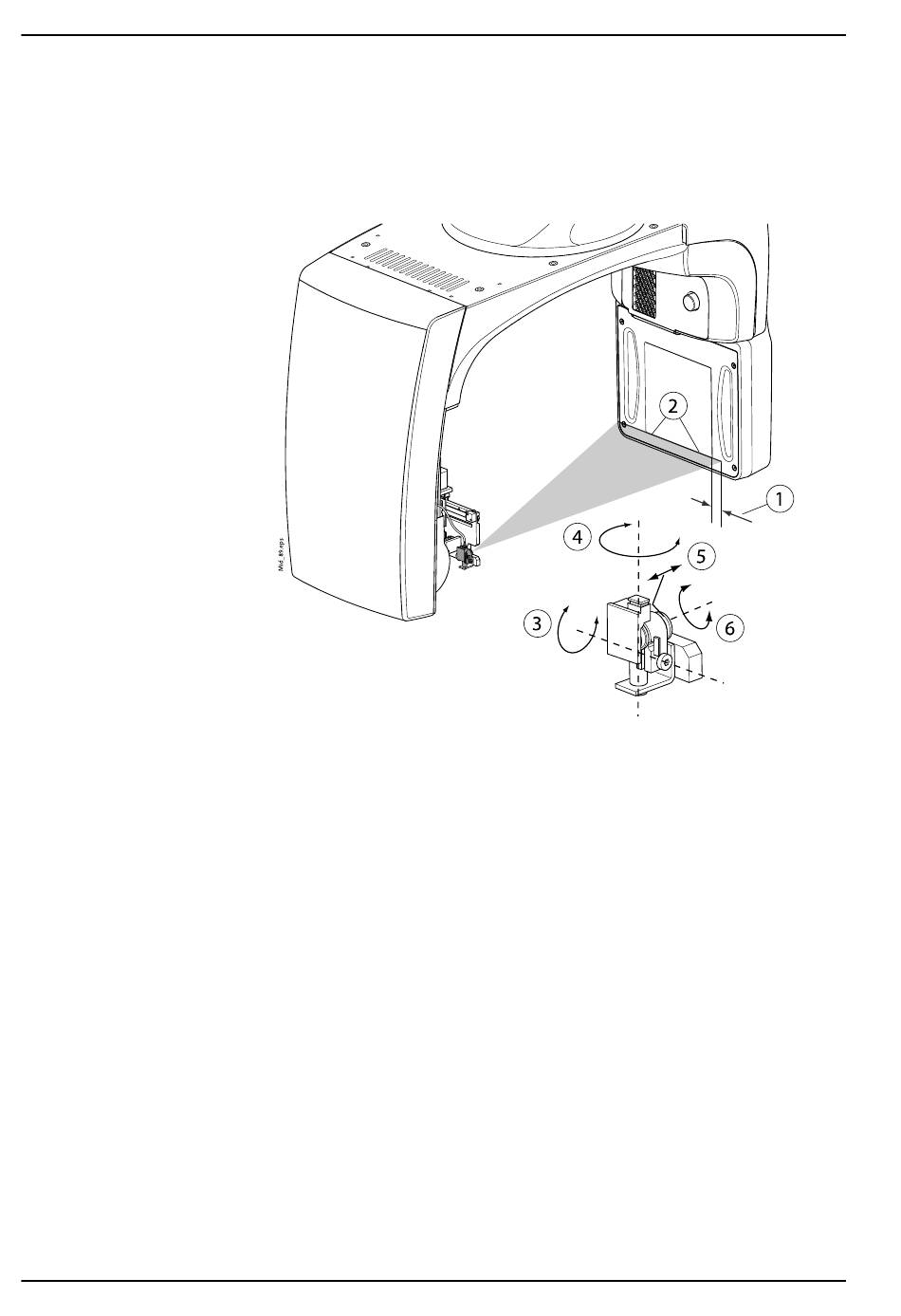

The volume bottom light must reach the right side of the sensor area and
overlap it max. 2 cm / 0.8 in. (1), see the figure below.
The light must also reach the sensor area left side and preferably overlap it 5
cm / 2 in. The light must hit the lower edge of the sensor area (2). If it does
not or is not in focus, adjust it according to the instructions given the below.
1. Remove the tube head front cover.
2. Adjust the light as necessary.
2.a. To adjust the light vertical position loosen the side attachment
screw of the laser light assembly and rotate the assembly (3), see
the figure above.
2.b. To adjust the light beam horizontal position loosen the top
attachment screw of the laser light assembly and rotate the
assembly (4).
