7.1 Adjusting telescopic column position

180 Planmeca ProMax 3D Max

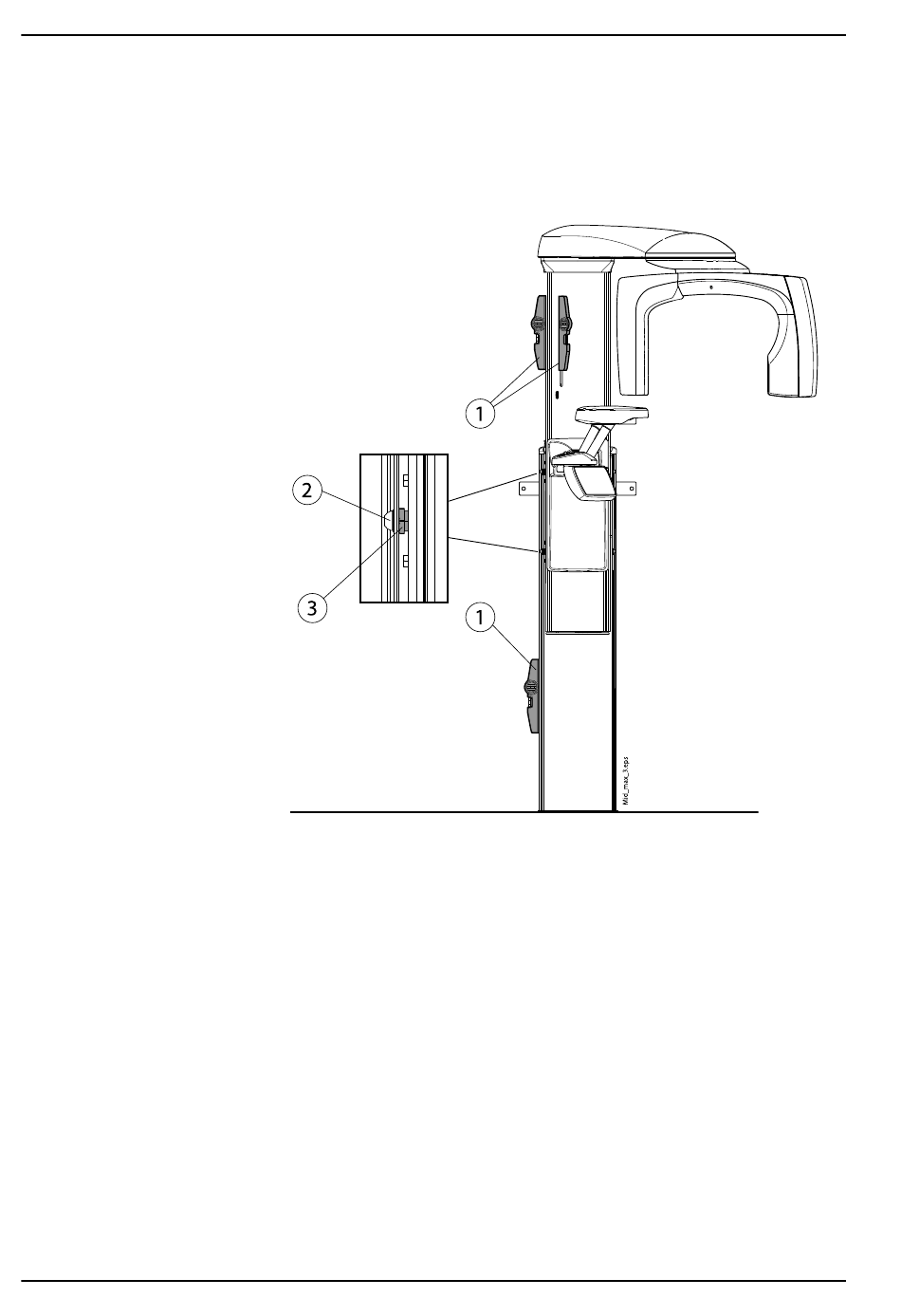

1. With the height adjusting buttons drive the unit to the position shown in
the following figure.
2. With a spirit level make sure that the telescopic column is parallel with
the stationary column both in depth and sideways (1 in the figure above).
To adjust the sideways position loosen the two attachment screws on the
left side of the column (2 and 3 in the figure above). Rotate the nuts
located between the columns so that the space between the columns on
the left side is equal to the space on the right side, and the telescopic
column is parallel with the stationary column. Tighten the upper
attachment screw.
