5 Panoramic and 3D calibrations
5.4.3.2 Attaching calibration tools (120 kV tube head)
156 Planmeca ProMax 3D Max
NOTE
The following instructions apply only to X-ray units equipped with the
optional 120 kV tube head.
1. Enter the calibration mode:
1. Touch the service spanner on the Main display.
2. Touch Technical and enter password (1701).

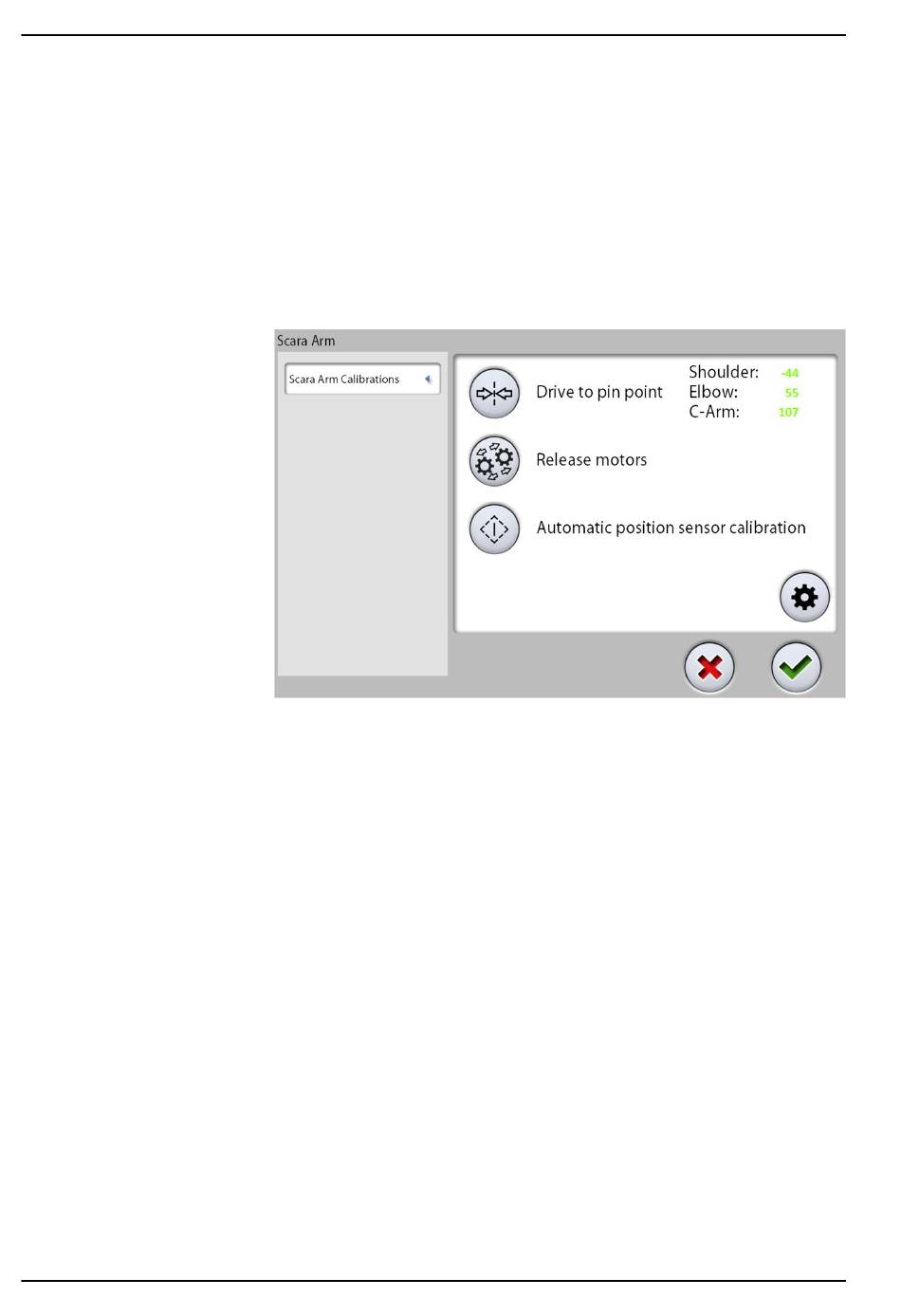

3. Touch Calibration (3200) --> Scara Arm (3250) --> Scara Arm
Calibrations (3251).
2. Touch the Drive to pin point button.
3. Switch off the X-ray unit.
4. Attach the Ball phantom (part number 30012440) into the patient
positioning mechanism adapter.
5. Remove covers:
1. Remove the shoulder arm upper cover, see section "Removing
shoulder arm upper cover" on page 199.
2. Remove the tube head front covers, see section "Removing tube
head covers (120 kV tube)" on page 196.
3. Remove the patient support table cover, see section "Removing
patient support table cover" on page 175.
6. Attach the alignment ruler in position between the collimator and the
sensor as follows.
1. Select the ruler:
• ProMax 3D Max without ProFace: Max alignment ruler (part
number 10039425)
• ProMax 3D Max equipped with ProFace: Max ProFace aligment
ruler (part number 10039426)
