4. Observe the position of the patient support table from behind the tube
head.

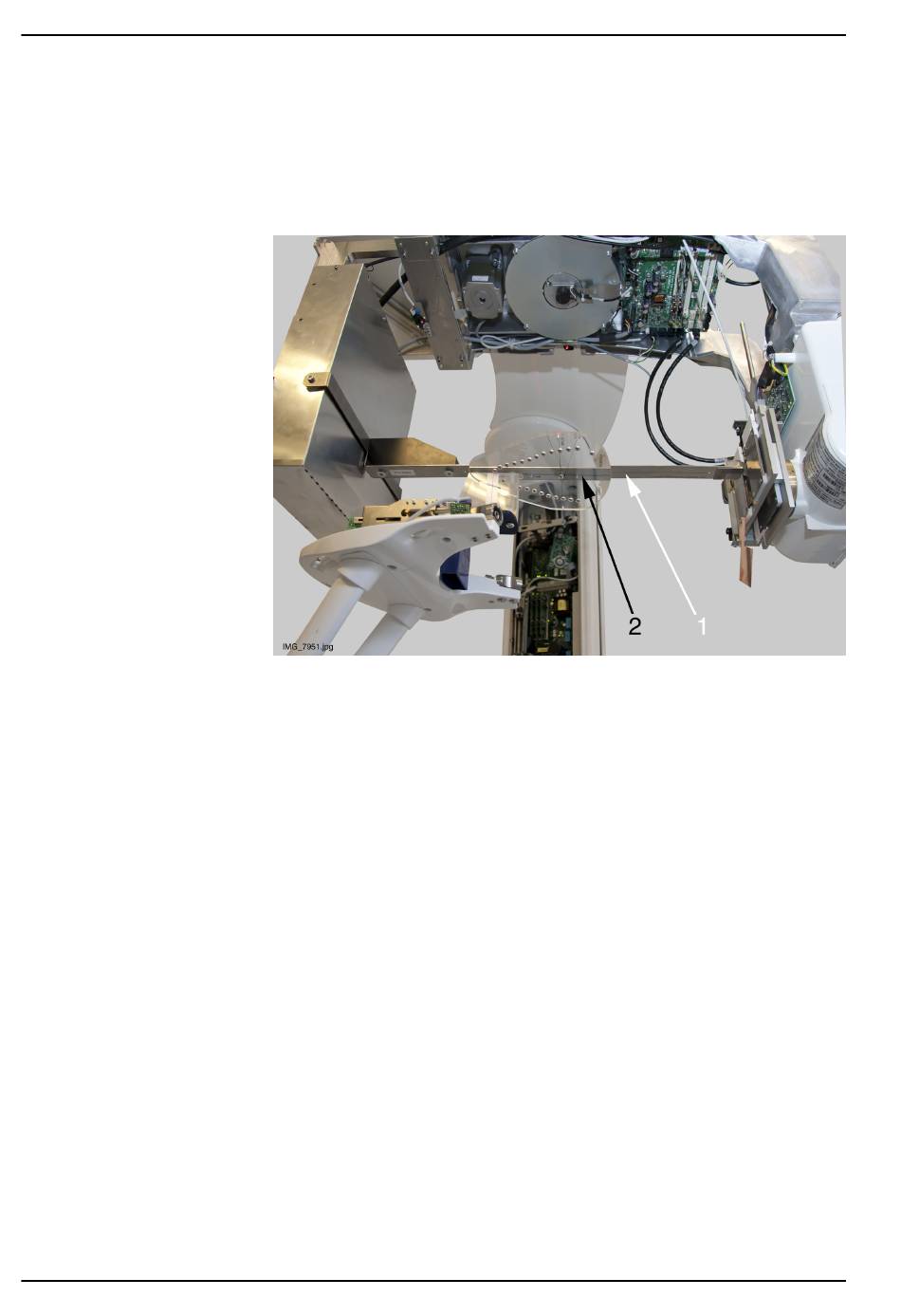

The line on the underside of the 3D Max alignment ruler (1) must be
parallel to the y- line on the ball phantom (2).
Note that the line on the platform and the line on the alignment ruler do
not have to coincide, but they must be parallel, the deviation may be ±1
mm.
If the deviation is greater than ±1 mm, adjust the position of the patient
support table as instructed in section "Adjusting alignment in x-direction"
on page 157, Step 2 onwards.
5. Tighten the four fastening screws of the patient support table.
6. Recheck the position of the patient support table in both directions (x and
y).
7. Remove the 3D Max alignment ruler, the transportation pins and the ball
phantom.
8. Attach the removed covers.
Calibrate the patient support table movements as instructed in section
"Calibrating patient support table movements" on page 121.
Calibrate the angle sensors as instructed in section "Calibrating angle
sensors" on page 115.
Refer to the Planmeca Device Tool manual, publication number 10031558.
Take a ball phantom exposure using Planmeca Romexis, as instructed in
section "Taking ball phantom exposure" on page 131.
